TRANSMISSION
RM250 1976 (A) USA (E03)

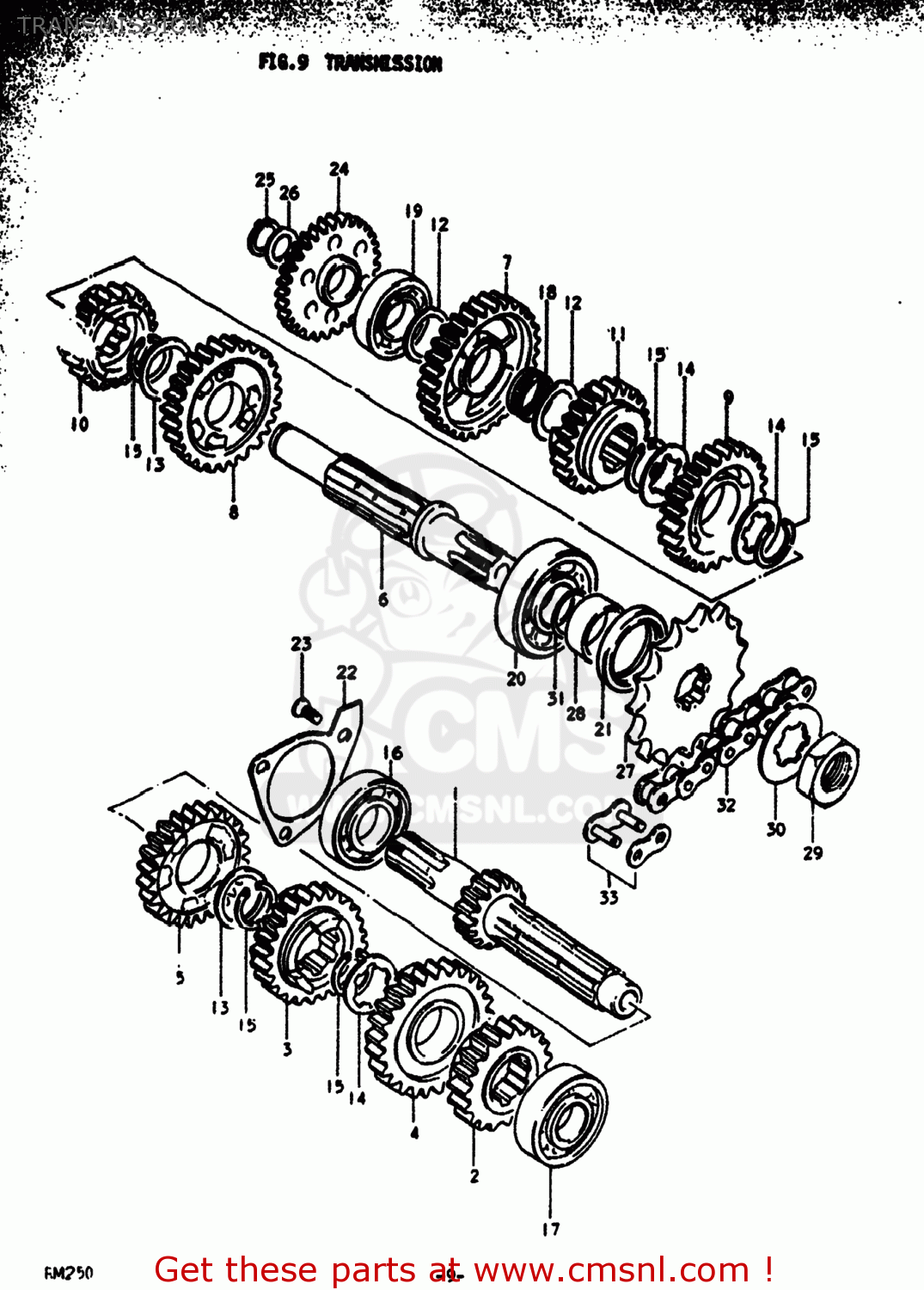

Transmission diagram RM250 1976 (A) USA (E03)
TRANSMISSION RM250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412141100
ref: 1
SHAFT,COUNTER
€ 90.00
2
2422141100
ref: 2
24221-41102
GEAR,SECOND DRIVE
€ 74.50
3-1
2423141100
ref: 3-1
GEAR,THIRD DRIVE
€ 64.00
3-2
2423141101
ref: 3-2
GEAR,THIRD DRIVE
€ 64.00
3-3
2423141102
ref: 3-3
24231-41104
GEAR,THIRD DRIVE
€ 64.00
4
2424141100
ref: 4
24241-14301
GEAR,FOURTH DRIVE
€ 43.50
5
2425141100
ref: 5
24251-14201
GEAR,FIFTH DRIVE
€ 36.50
6
2413141100
ref: 6
24131-41101
SHAFT,DRIVE
€ 121.00
7-1
2431141100
ref: 7-1
24311-41102
GEAR,FIRST DRIVEN
€ 54.50
7-1
2431141100
ref: 7-1
24311-41102
GEAR,FIRST DRIVEN
€ 54.50
7-2
2431141101
ref: 7-2
24311-41102
GEAR,FIRST DRIVEN
€ 54.50
8
2432041100
ref: 8
24320-41101
GEAR,SECOND DRIVEN
€ 69.00
9-1
2433141101
ref: 9-1
24331-41103
GEAR,THIRD DRIVEN
€ 42.00
9-2
2433141102
ref: 9-2
24331-41103
GEAR,THIRD DRIVEN
€ 42.00
10-1
2434141101
ref: 10-1
GEAR,FOURTH DRIVEN
€ 50.50
10-2
2434141102
ref: 10-2
24341-41103
GEAR,FOURTH DRIVEN
€ 50.50
11-1
2435141100
ref: 11-1
24351-41103
GEAR,FIFTH DRIVEN
€ 72.00
11-1
2435141100
ref: 11-1
24351-41103
GEAR,FIFTH DRIVEN
€ 72.00
11-2
2435141101
ref: 11-2
24351-41103
GEAR,FIFTH DRIVEN
€ 72.00
12
0821117281
ref: 12
09181-17195
WASHER
€ 3.00
13
0918122002
ref: 13
SHIM(22X28X0.5)
€ 1.00
14
0916722011
ref: 14
WASHER,LOCK
€ 3.00
15
0938022006
ref: 15
CIRCLIP
€ 3.00
16
0926220009
ref: 16
09262-20073
BEARING
€ 19.00
17
0811362030
ref: 17
09262-17023
BEARING
€ 14.00
18
0926317004
ref: 18
BEARING(17X21X9.8)
€ 7.00
19
0811362030
ref: 19
09262-17023
BEARING
€ 14.00
20
0926222011
ref: 20
09262-22028
BEARING
€ 59.50
21
0928332003
ref: 21
SEAL,OIL(32X42X6)
€ 3.50
22-1
2474140000
ref: 22-1
24741-40001
PLATE,COUNTERSHAFT BEARING
€ 16.50
22-2
2474140001
ref: 22-2
PLATE,COUNTERSHAFT BEARING
€ 16.50
23
0212206128
ref: 23
02122-06127
SCREW
€ 3.00
24
2626041100
ref: 24
26260-13A10
GEAR,KICK STARTER IDLE
€ 52.00
25
0938017001
ref: 25
CIRCLIP
€ 2.00
26
0821117241
ref: 26
WASHER
€ 2.00
27-1
2751141110
ref: 27-1
SPROCKET,ENGINE
€ 25.00
27-2
2751141100
ref: 27-2
SPROCKET,ENGINE
€ 48.50
27-3
2751141120
ref: 27-3
27511-14210
SPROCKET,ENGINE
€ 24.50
28
0918022007
ref: 28
SPACER(22X32X11.5)
€ 10.00
29
0914022006
ref: 29
NUT
€ 6.00
30
0916722005
ref: 30
WASHER,LOCK
€ 2.50
31
0928022003
ref: 31
O RING(D:1.7,ID:22)
€ 2.50
32
2760041110
ref: 32
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
33
2762040000
ref: 33
27620-14252
JOINT ASSEMBLY,CHAIN
€ 3.00
