STAND - FOOTREST
RM250 1976 (A) USA (E03)

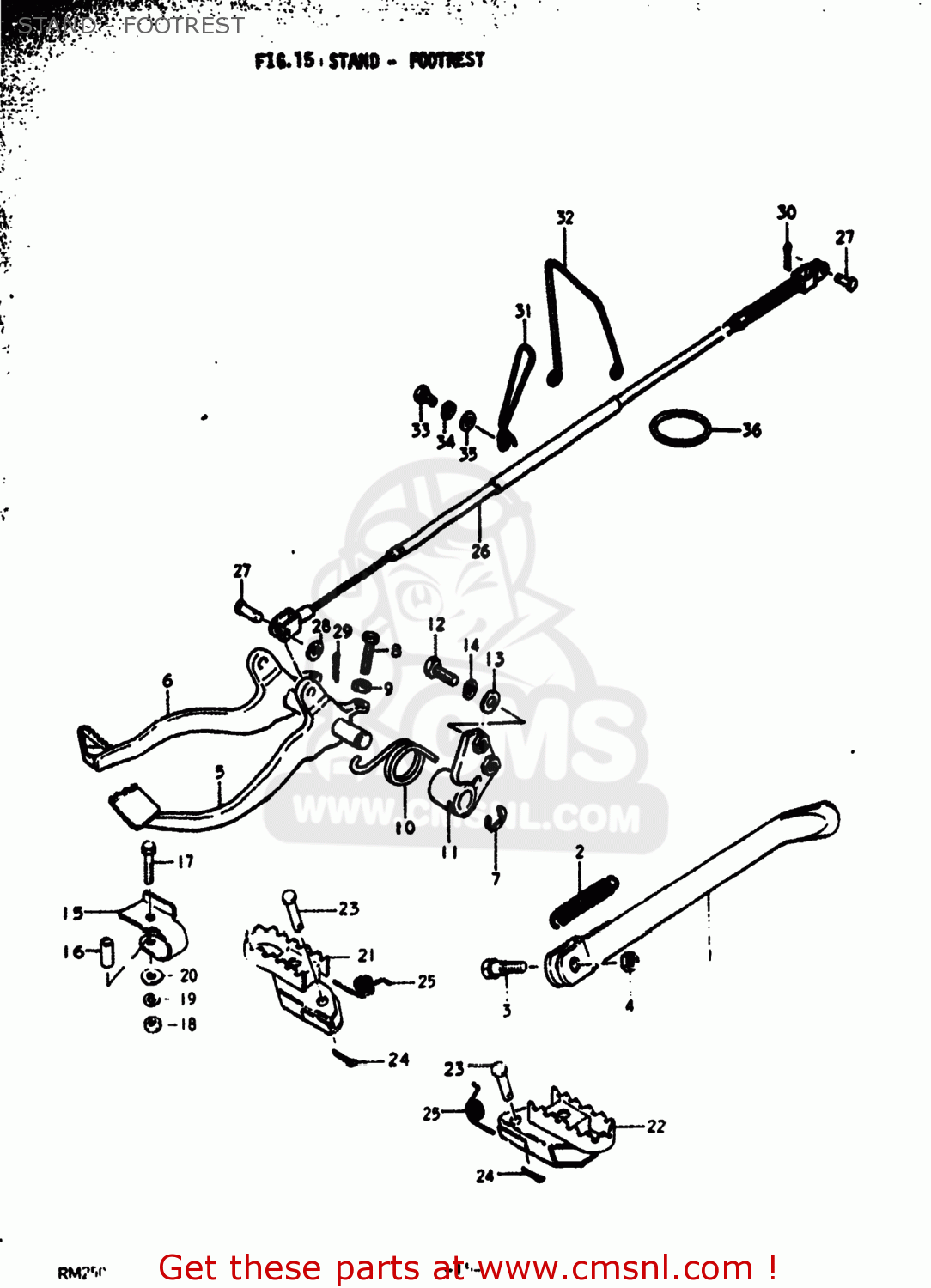

Stand - footrest diagram RM250 1976 (A) USA (E03)
STAND - FOOTREST RM250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231041100
ref: 1
STAND,PROP
€ 33.50
2
0944314005
ref: 2
09443-14017
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4311041100
ref: 5
43110-41202
PEDAL,BRAKE
€ 83.00
6-1
4311041101
ref: 6-1
43110-41202
PEDAL,BRAKE
€ 83.00
6-2
4311041102
ref: 6-2
43110-41202
PEDAL,BRAKE
€ 83.00
7
0833211098
ref: 7
08332-1109A
E RING
€ 1.50
8
0910006009
ref: 8
BOLT(6X23)
€ 1.50
9
0831011068
ref: 9
08310-00067
NUT
€ 2.50
10
0944828002
ref: 10
SPRING
€ 1.50
11-1
4313041100
ref: 11-1
VALVE ASSEMBLY,WHEEL RIM
€ 13.50
11-2
4313041101
ref: 11-2
VALVE ASSEMBLY,WHEEL RIM
€ 10.00
12
0110708206
ref: 12
01500-0820A
BOLT,8X1.25X2
€ 2.00
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
4316041100
ref: 15
HANDLE
€ 4.00
16
4316241990
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0110706358
ref: 17
09100-06033
BOLT
€ 2.50
18
0831011068
ref: 18
08310-00067
NUT
€ 2.50
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
0916006013
ref: 20
09160-06121
WASHER (6.5X18X2)
€ 10.50
21-1
4355041100
ref: 21-1
BAR,FOOTREST,RIGHT
€ 25.00
21-2
4355041102
ref: 21-2
43550-48501
FOOTREST,FRONT
€ 30.50
22-1
4356041100
ref: 22-1
FOOTREST
€ 14.00
22-2
4356041102
ref: 22-2
43560-48501
FOOTREST
€ 31.50
23-1
0920008002
ref: 23-1
PIN
€ 2.00
23-2
0920010008
ref: 23-2
PIN
€ 3.00
24
0411120208
ref: 24
04111-2020A
PIN 20X20
€ 1.50
25-1
0944814012
ref: 25-1
SPRING
€ 3.00
25-2
0944815004
ref: 25-2
SPRING
€ 2.50
26-1
5851041100
ref: 26-1
58510-41101
CABLE ASSEMBLY,REAR BRAKE
€ 38.50
26-2
5851041101
ref: 26-2
CABLE,RR BRAKE
€ 38.50
26-3
5851041110
ref: 26-3
CABLE,RR BRAKE
€ 37.00
27
0920005001
ref: 27
PIN(L:17.5)
€ 1.50
28
0832221068
ref: 28
08322-01067
WASHER
€ 2.00
29
0411120208
ref: 29
04111-2020A
PIN 20X20
€ 1.50
30
0411120158
ref: 30
04111-2015A
PIN
€ 1.50
31
5862141100
ref: 31
GUIDE,CABLE
€ 2.50
32
5862241110
ref: 32
GUIDE,CABLE
€ 2.00
33-1
0110706128
ref: 33-1
01500-06127
BOLT
€ 2.00
33-2
0110706168
ref: 33-2
01500-06167
BOLT, UPPER
€ 3.00
34
0832121068
ref: 34
08321-01067
LOCK WASHER
€ 2.50
35
0832221068
ref: 35
08322-01067
WASHER
€ 2.00
36
5864241300
ref: 36
O RING,RR BRAKE CABLE
€ 2.50
