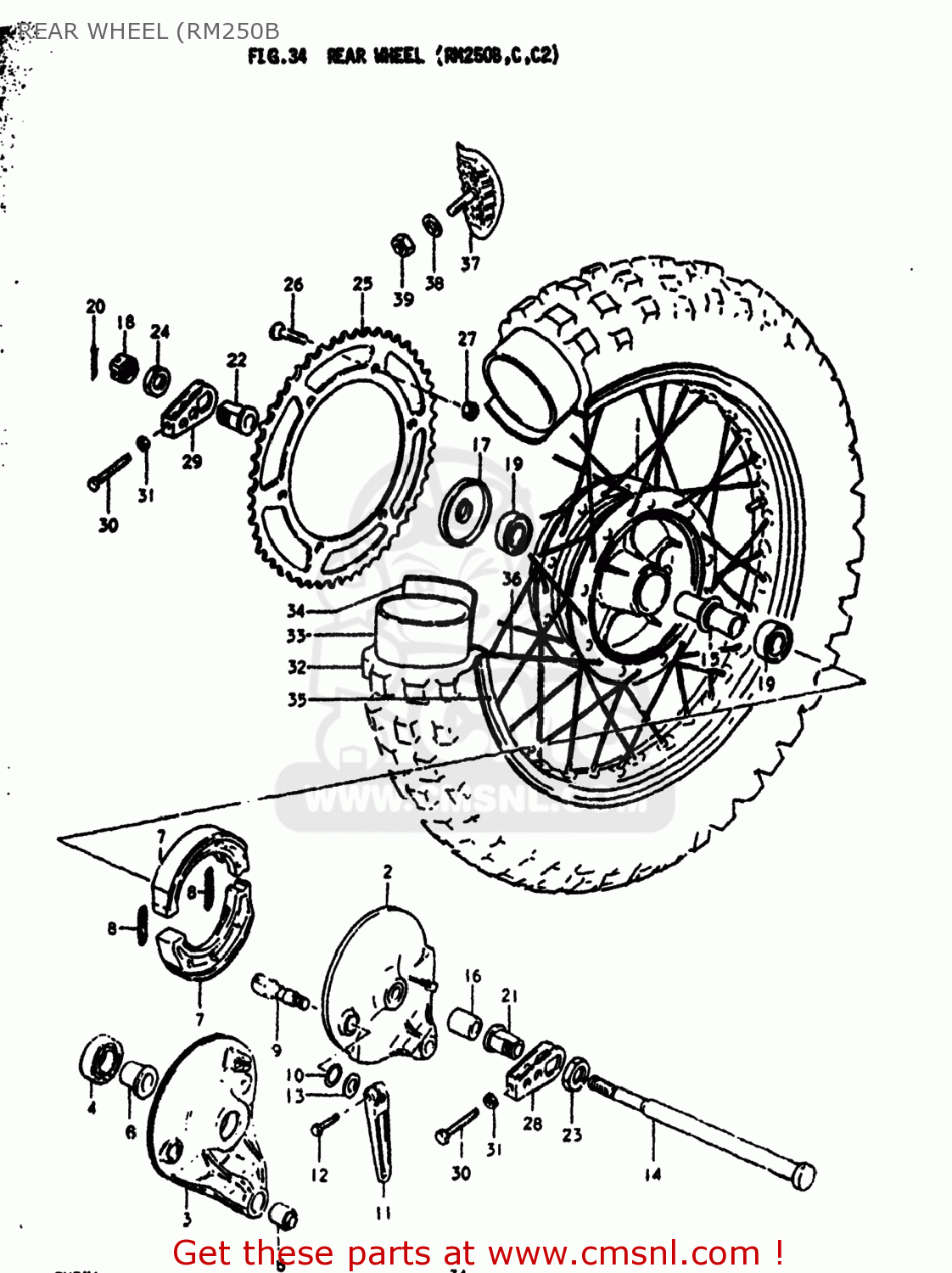

REAR WHEEL (RM250B

ref

part #

description

quantity

1-1

6411041602
ref: 1-1

HUB COMP,REAR

€ 166.50

1-2

6410041820
ref: 1-2

HUB REAR

€ 256.00

1-2

6410041820
ref: 1-2

HUB REAR

€ 256.00

2-1

6421041103
ref: 2-1

PANEL,REAR HUB

€ 82.00

2-2

6421041701
ref: 2-2

PANEL,REAR HUB

€ 116.00

3

6421041110
ref: 3
64200-41820

PANEL,REAR HUB

€ 77.50

4

0812360050
ref: 4
08123-60057

BEARING,RR SPROCKET DRUM

€ 16.50

5

0931910008
ref: 5

BUSH

€ 8.00

6

6421341110
ref: 6

SPACER,REAR HUB PANEL

€ 6.00

7

5441008002
ref: 7
64400-02830

SHOE,BRAKE

€ 35.00

8

5542041100
ref: 8

SPRING

€ 5.50

9

5444008001
ref: 9
54440-08004

CAM,FRONT BRAKE

€ 19.00

10

0928013001
ref: 10

O RING(D:3.2,ID:12.9)

€ 4.00

11

5445141100
ref: 11

LEVER,FRONT BRAKE CAM

€ 43.50

12

0110706258
ref: 12
01500-06257

BOLT

€ 2.00

13

0916015001
ref: 13
09160-15048

WASHER (15X24X1.6)

€ 2.50

14

6471141100
ref: 14

AXLE,REAR

€ 29.50

15

6473041101
ref: 15

SPACER,REAR HUB BEARING

€ 11.50

16-1

0918017044
ref: 16-1

SPACER

€ 3.50

16-2

6474141110
ref: 16-2

SPACER,REAR AXLE,RIGHT

€ 4.50

17

6475041102
ref: 17

SPACER,REAR AXLE

€ 4.50

18-1

0831431148
ref: 18-1
08314-3114A

NUT

€ 2.50

18-2

0914114004
ref: 18-2

NUT

€ 5.00

19

0812362034
ref: 19
08133-62037

BEARING

€ 24.50

20

0411130408
ref: 20
04111-3040A

PIN 30X40

€ 1.50

21-1

6478141100
ref: 21-1

SPACER,CHAIN ADJUSTER

€ 7.00

21-2

6478141710
ref: 21-2

SPACER,CHAIN ADJUSTER

€ 13.00

22-1

6479141100
ref: 22-1

SPACER,CHAIN ADJUSTER

€ 14.50

22-2

6479141710
ref: 22-2

SPACER,CHAIN ADJUSTER

€ 15.00

23

0914024007
ref: 23

NUT

€ 4.50

24

0914022006
ref: 24

NUT

€ 6.00

25

6451141130
ref: 25
64511-41131

SPROCKET,REAR

€ 79.50

26

0912008003
ref: 26
09120-08004

SCREW

€ 3.00

27

0915908021
ref: 27

NUT

€ 1.50

28-1

6142041100
ref: 28-1

ADJUSTER,CHAIN

€ 8.00

28-2

6142041710
ref: 28-2

ADJUSTER,CHAIN

€ 8.50

29-1

6141041100
ref: 29-1

ADJUSTER,CHAIN

€ 10.00

29-2

6141041710
ref: 29-2

ADJUSTER,CHAIN

€ 9.50

30

0910408006
ref: 30
09104-08034

BOLT

€ 3.00

31

0831012088
ref: 31
08310-00087

NUT

€ 2.00

32-1

6510041610
ref: 32-1
65100-14230

TIRE

€ 0.00

32-2

6510041611
ref: 32-2
65100-14230

TIRE

€ 0.00

33

6520041110
ref: 33
65200-16510

TUBE ASSEMBLY,WHEEL,INNER

€ 16.00

34

6526116510
ref: 34
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

35

6531141220
ref: 35

RIM,REAR WHEEL

€ 119.00

36

6530041850
ref: 36
65300-41851

SPOKE SET,REAR

€ 48.00

37

6527032101
ref: 37
65270-28E00

STOPPER,BEAD

€ 38.00

38

0832211088
ref: 38
08322-01087

WASHER

€ 2.00

39

0831012086
ref: 39
08310-0008A

NUT

€ 1.50
