REAR SWINGING ARM (RM2508)
RM250 1976 (A) USA (E03)

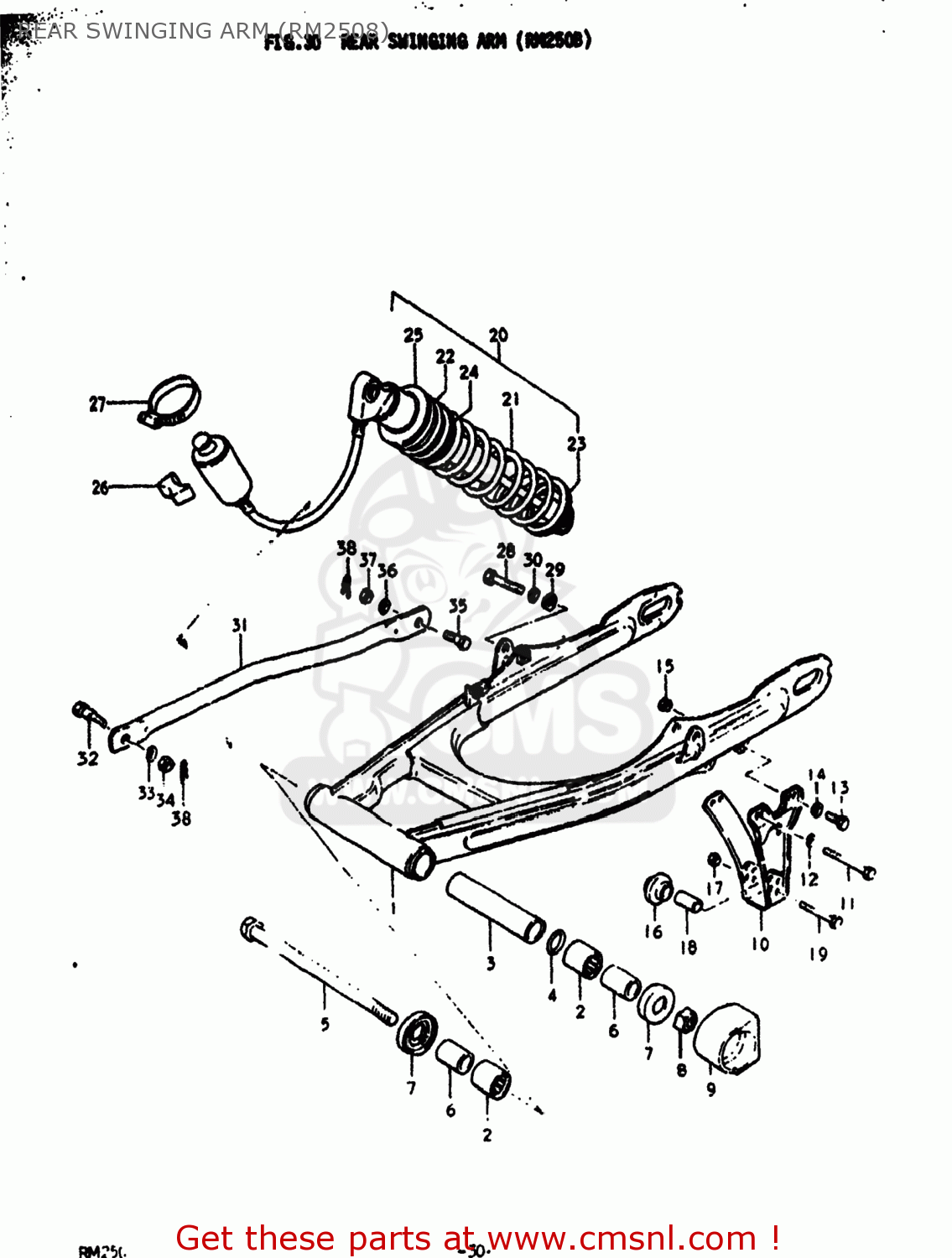

Rear swinging arm (rm2508) diagram RM250 1976 (A) USA (E03)
REAR SWINGING ARM (RM2508) RM250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110041841019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 73.50
2
0926320021
ref: 2
BEARING(20X28X25)
€ 41.00
3
6128240000
ref: 3
SPACER,REAR SWING ARM
€ 17.50
4
0928019001
ref: 4
O RING(D:1.9,ID:18.8)
€ 1.50
5
6121138001
ref: 5
61211-38004
SHAFT,REAR SWING ARM
€ 22.50
6
0918014007
ref: 6
SPACER(14X20X30)
€ 12.50
7
0926920010
ref: 7
THRUST BEARING IKO
€ 47.00
8
0831911148
ref: 8
08319-2114A
NUT
€ 3.00
9
6127341400
ref: 9
61273-41401
BUFFER,CHAIN TOUCH DEFLECTOR
€ 10.00
10
6134041400
ref: 10
GUIDE,CHAIN
€ 9.00
11
0110706508
ref: 11
01500-06507
BOLT
€ 3.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0110706128
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
0831011068
ref: 15
08310-00067
NUT
€ 2.50
16
6134541100
ref: 16
RUBBER,CHAIN GUARD
€ 4.50
17
0915906018
ref: 17
NUT (6MM)
€ 1.50
18
0918006067
ref: 18
SPACER(6.5X10.5X22.5)
€ 2.50
19
0110706358
ref: 19
09100-06033
BOLT
€ 2.50
20
6210041650
ref: 20
62100-41651
ABSORBER ASSEMBLY,REAR SHOCK
€ 227.50
21
6221141650
ref: 21
SPRING
€ 17.00
22
6221241650
ref: 22
SPRING
€ 11.50
23
6222540600
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
24
6222141650
ref: 24
SPRING
€ 4.50
25
6219141650
ref: 25
GUIDE,SPRING
€ 4.00
26
6233141630
ref: 26
CUSHION,RR SHOCK ABSORBER
€ 6.00
27
6233241631
ref: 27
CLAMP
€ 10.00
28
0910010096
ref: 28
09100-10184
BOLT 10X40
€ 2.50
29
0832211108
ref: 29
08322-01107
WASHER
€ 2.50
30
0832121108
ref: 30
08321-01107
LOCK WASHER
€ 2.00
31
6431134000
ref: 31
64311-34000-019
TORQUE LINK,REAR
€ 13.50
32
0911108012
ref: 32
BOLT(8X22.5)
€ 3.00
33
0832121088
ref: 33
08321-01087
LOCK WASHER
€ 2.00
34
0914008008
ref: 34
NUT
€ 1.50
35
0910110003
ref: 35
BOLT(10X31)
€ 4.00
36
0832121108
ref: 36
08321-01107
LOCK WASHER
€ 2.00
37
0831022108
ref: 37
08310-00107
NUT
€ 2.50
38
0938510001
ref: 38
09385-10005
CLIP
€ 1.50
