HANDLEBAR
RM250 1976 (A) USA (E03)

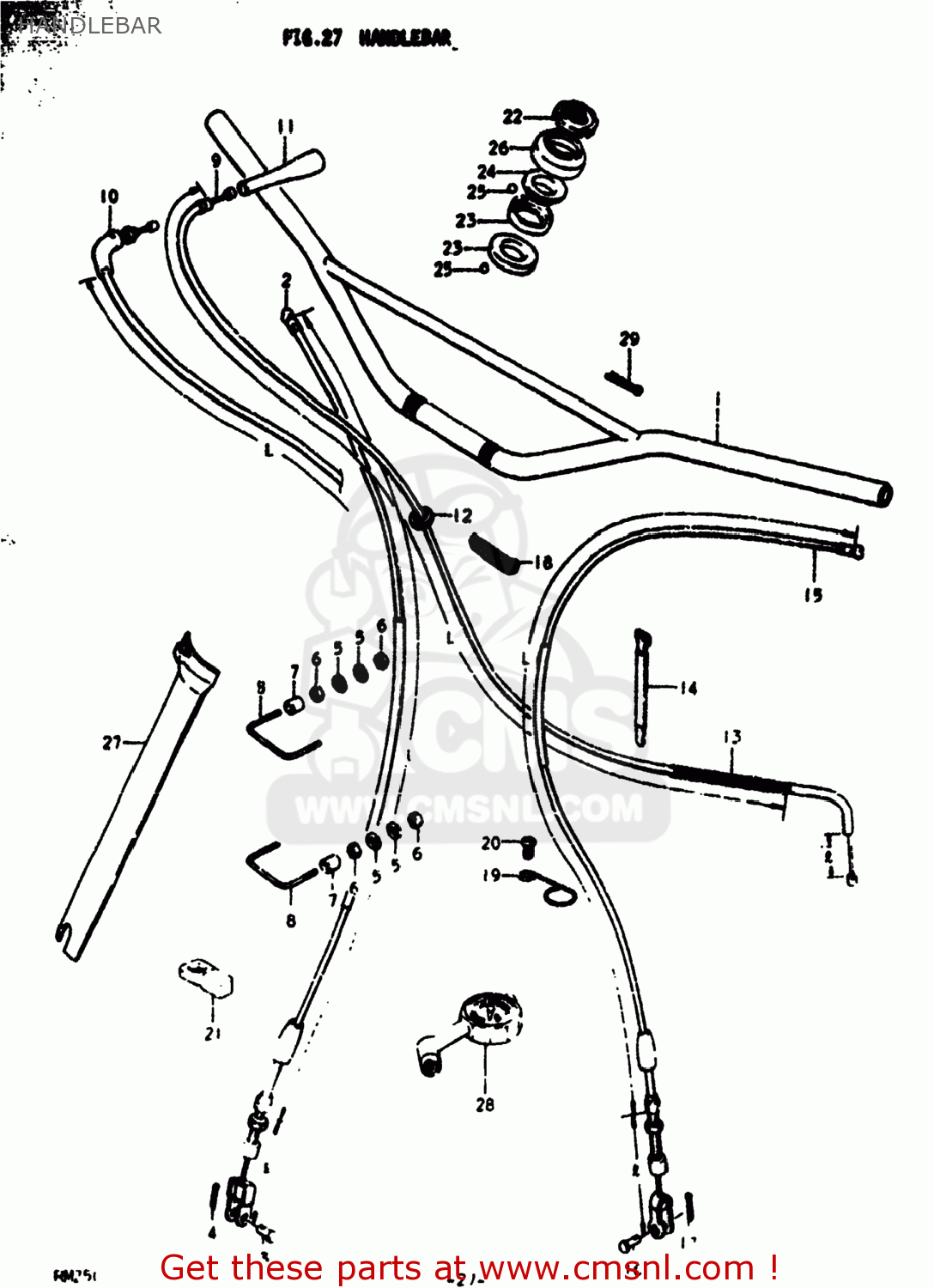

Handlebar diagram RM250 1976 (A) USA (E03)
HANDLEBAR RM250 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611041100
ref: 1-1
HANDLEBAR
€ 0.00
1-2
5611041301
ref: 1-2
56110-41311
HANDLEBAR
€ 0.00
1-3
5611041110
ref: 1-3
56110-41111
HANDLEBAR
€ 34.50
2-1
5810041601
ref: 2-1
CABLE ASSY,FR BRAKE
€ 30.50
2-2
5810041300
ref: 2-2
58100-37200
CABLE ASSEMBLY,FRONT BRAKE
€ 33.50
3-1
0920006004
ref: 3-1
PIN(L:13)
€ 1.50
3-2
0920005001
ref: 3-2
PIN(L:17.5)
€ 1.50
4
0411120158
ref: 4
04111-2015A
PIN
€ 1.50
5
0832221038
ref: 5
08322-01037
WASHER
€ 2.00
5
0832221038
ref: 5
08322-01037
WASHER
€ 2.00
6
0831011038
ref: 6
08310-0003B
NUT 3MM
€ 2.00
6
0831011038
ref: 6
08310-0003B
NUT 3MM
€ 2.00
7
0930604002
ref: 7
BUSHING
€ 1.00
7
0930604002
ref: 7
BUSHING
€ 1.00
8
5862641000
ref: 8
CLAMP,CABLE
€ 5.50
8
5862641000
ref: 8
CLAMP,CABLE
€ 5.50
9
5831041101
ref: 9
58300-41X01
CABLE ASSEMBLY,THROTTLE
€ 26.50
10
5830041602
ref: 10
58300-41X01
CABLE ASSEMBLY,THROTTLE
€ 26.50
10
5830041602
ref: 10
58300-41X01
CABLE ASSEMBLY,THROTTLE
€ 26.50
11
5833340000
ref: 11
SEAL
€ 1.50
12
0930812002
ref: 12
GROMMET
€ 2.00
13
5839927100
ref: 13
PROTECTOR,CABLE
€ 10.50
14
0940718301
ref: 14
CLAMP
€ 6.00
14
0940718301
ref: 14
CLAMP
€ 6.00
15-1
5820041100
ref: 15-1
58200-41301
CABLE ASSEMBLY,CLUTCH
€ 28.50
15-2
5820041101
ref: 15-2
58200-41301
CABLE ASSEMBLY,CLUTCH
€ 28.50
16
0920006004
ref: 16
PIN(L:13)
€ 1.50
17
0411120158
ref: 17
04111-2015A
PIN
€ 1.50
18
0940406401
ref: 18
09404-06432
CLAMP L:35
€ 2.50
19
0940318401
ref: 19
CLAMP
€ 1.00
20
0211206128
ref: 20
02112-06127
SCREW 6X12
€ 2.00
21
5862141110
ref: 21
GUIDE,CABLE
€ 5.50
22
5163128000
ref: 22
NUT,STEERING STEM(25X44X10)
€ 12.50
23
5161133002
ref: 23
LACE,STEERING INNER LWR
€ 7.00
24
5162130001
ref: 24
LACE,STEERING OUTER UPR
€ 14.00
25
0611108003
ref: 25
BALL
€ 1.50
26
5164330000
ref: 26
DUST SEAL,STEERING UPR
€ 15.50
27
5120140001
ref: 27
PROTECTOR
€ 3.50
28
9620041310
ref: 28
96200-41330
GAUGE ASSEMBLY,AIR PRESSURE
€ 77.50
29
0411125258
ref: 29
04111-2530A
COTTER PIN
€ 1.50
