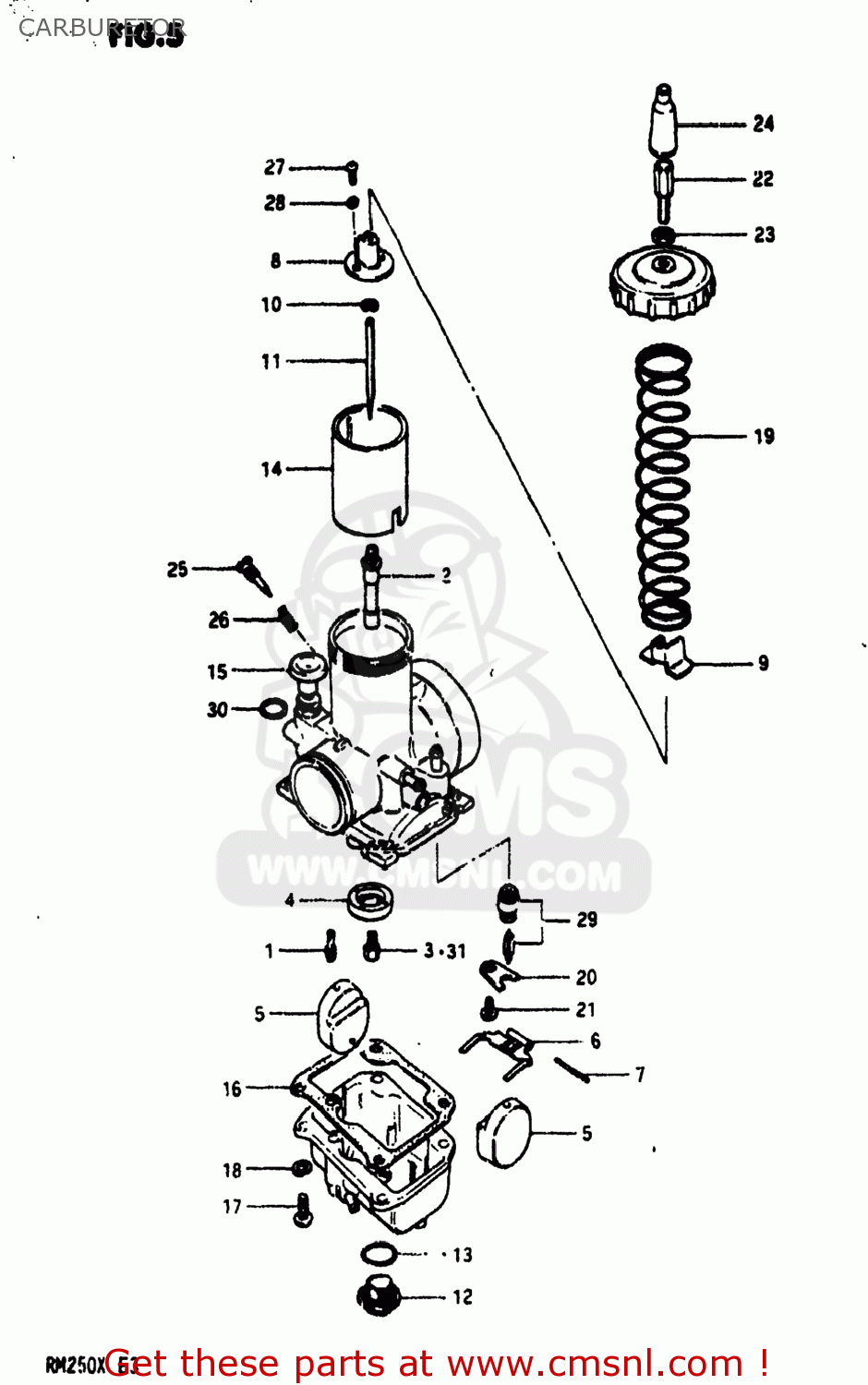

CARBURETOR

ref

part #

description

quantity

0

1320014201
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

0949260004
ref: 1

JET,PILOT

€ 7.50

2

0949400333
ref: 2

JET,NEEDLE

€ 0.00

3

0949164001
ref: 3
09491-64002

JET

€ 8.50

4

1333140600
ref: 4

RING,MAIN JET FIXING

€ 0.00

5

1325216600
ref: 5

FLOAT

€ 17.50

6

1325340200
ref: 6

ARM,FLOAT

€ 10.00

7

1325401010
ref: 7

PIN,FLOAT

€ 3.00

8

1358140200
ref: 8

CONNECTOR

€ 7.00

9

1362940200
ref: 9

COVER,HOLDER

€ 4.00

10

1339410010
ref: 10

CLIP

€ 4.50

11

1338314200
ref: 11

NEEDLE JET

€ 8.50

12

1324740600
ref: 12

PLUG

€ 8.00

13

0928020003
ref: 13

O RING(D:1.5,ID:19.5)

€ 2.50

14

1355114200
ref: 14

VALVE,THROTTLE

€ 84.00

15

1341014100
ref: 15

VALVE ASSEMBLY,STARTER

€ 38.00

16

1325140230
ref: 16

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

17

0211205168
ref: 17
02112-05167

SCREW

€ 2.50

18

0832121058
ref: 18
08321-0105A

LOCK WASHER

€ 2.00

19

1357316601
ref: 19

SPRING

€ 1.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204068
ref: 21
02112-0406B

SCREW 4X6

€ 2.00

22

1357741612
ref: 22

ADJUSTER,CABLE

€ 8.00

23

1366116600
ref: 23

NUT

€ 5.00

24

1368133010
ref: 24

CAP,CABLE ADJUSTER

€ 8.00

25

1326915010
ref: 25

SCREW,PILOT AIR

€ 10.50

26

1326801010
ref: 26

SPRING

€ 3.50

27

0211203088
ref: 27
02112-03087

SCREW

€ 1.50

28

0832121038
ref: 28
09162-03001

LOCK WASHER

€ 1.50

29

1337040230
ref: 29
13370-40600

VALVE ASSEMBLY,NEEDLE

€ 48.50

30

1329515010
ref: 30
09280-08014

O-RING

€ 3.00

31-1

0949160003
ref: 31-1
09491-60007

JET

€ 9.50

31-2

0949162001
ref: 31-2
09491-62005

JET

€ 10.50

31-3

0949166001
ref: 31-3
09491-66002

JET

€ 10.50

31-4

0949168001
ref: 31-4
09491-68002

JET

€ 8.50

31-5

0949170008
ref: 31-5
09491-70011

JET

€ 8.50
