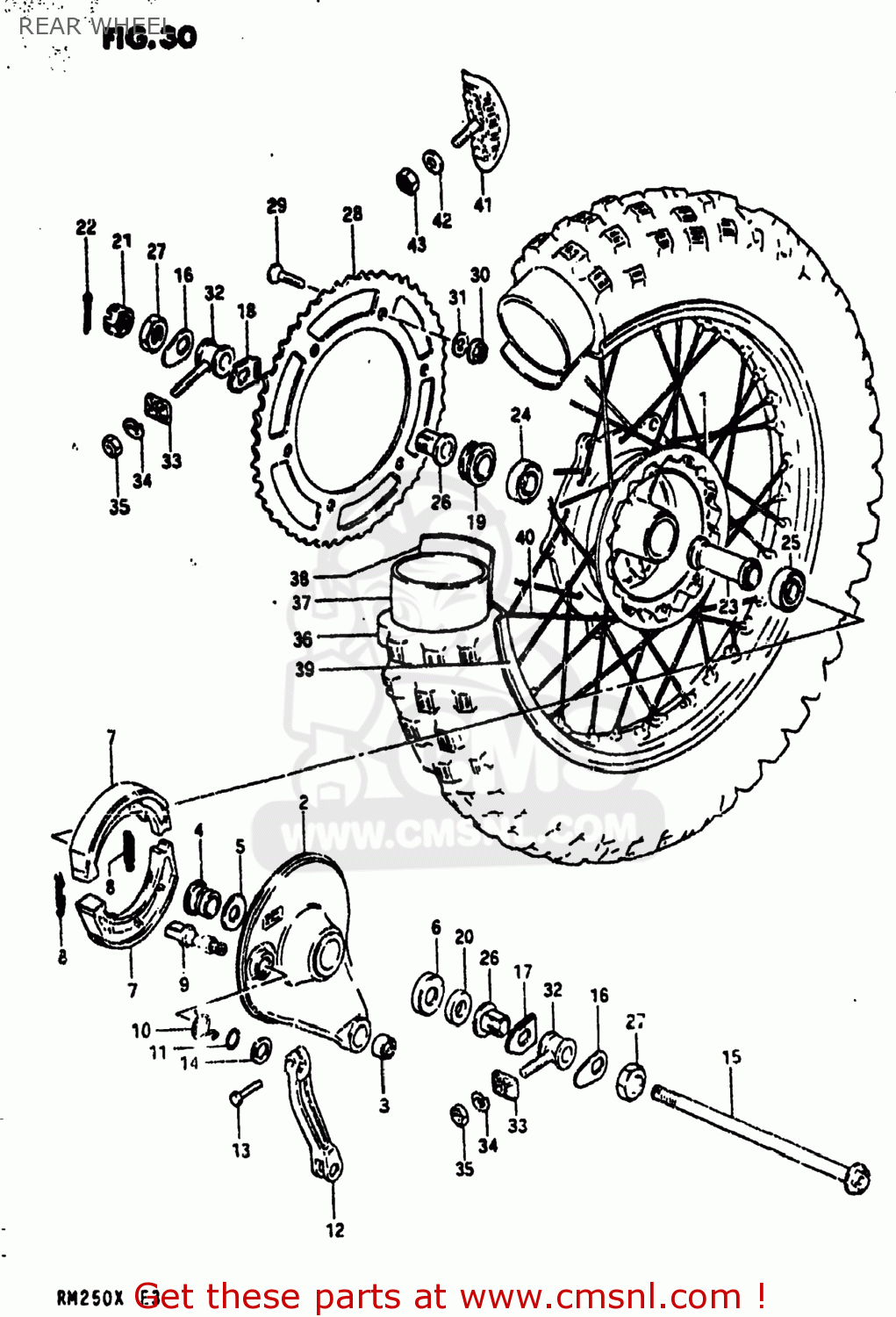

REAR WHEEL

ref

part #

description

quantity

1

6411014102
ref: 1
64110-14103

DRUM,REAR HUB

€ 212.50

2

6420014811
ref: 2
64200-14830

PANEL SET,REAR HUB

€ 177.00

3

6435240401
ref: 3

SPHERICAL BRNG,TORQUE LINK

€ 69.50

4

6421314100
ref: 4

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

6484514100
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

7

6441014100
ref: 7
64400-14820

SHOE,BRAKE (MCA)

€ 41.50

8

0944307001
ref: 8
09443-07025

SPRING(L:34)

€ 2.50

9

5444114100
ref: 9
54441-14101

CAM,FRONT BRAKE

€ 16.00

10

0944830007
ref: 10
09448-30007-XC0

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114100
ref: 12

LEVER,RR BRAKE CAM

€ 62.50

13

0110706258
ref: 13
01500-06257

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114201
ref: 15

AXLE,REAR

€ 150.50

16

6471214201
ref: 16

WASHER,CHAIN ADJUST GUIDE

€ 3.50

17

6478214200
ref: 17

PLATE,CHAIN ADJUSTER,RIGHT

€ 0.00

18

6479214200
ref: 18

PLATE,CHAIN ADJUSTER,LEFT

€ 10.50

19

6475014200
ref: 19

SPACER,RR AXLE,L

€ 16.00

20

6474114200
ref: 20

SPACER,REAR AXLE,RIGHT

€ 9.50

21

0914114004
ref: 21

NUT

€ 5.00

22

0411130308
ref: 22
04111-3030A

COTTER PIN

€ 1.50

23

6473014100
ref: 23
64730-14101

SPACER,REAR HUB BEARING

€ 31.50

24

0812362027
ref: 24

BEARING

€ 14.50

25

0814362027
ref: 25

BEARING

€ 12.50

26

6478114201
ref: 26

SPACER,CHAIN ADJUSTER

€ 27.00

27

0914022006
ref: 27

NUT

€ 6.00

28

6451140271
ref: 28
64511-36E00

SPROCKET,REAR

€ 99.00

29

0912008004
ref: 29

SCREW(8X33.5)

€ 3.00

30

0831931088
ref: 30
08319-3108A

NUT

€ 2.50

31

0832211068
ref: 31
08322-0106B

WASHER 6MM

€ 2.00

32

6141014220
ref: 32

ADJUSTER,CHAIN

€ 18.50

33

6142114220
ref: 33

PLATE,CHAIN ADJUSTER GEAR

€ 5.00

34

0832121108
ref: 34
08321-01107

LOCK WASHER

€ 2.00

35

0831011108
ref: 35
08310-00107

NUT

€ 2.50

36-1

6510014230
ref: 36-1

TIRE

€ 0.00

36-2

6510014250
ref: 36-2

TIRE

€ 0.00

37

6520040430
ref: 37

TUBE,INNER

€ 0.00

38

6526115030
ref: 38
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

39

6531114211
ref: 39
65311-14600

RIM,REAR WHEEL

€ 272.00

40

6532014220
ref: 40
65320-14112

SPOKE SET,REAR WHEEL

€ 50.00

41

6527014200
ref: 41
65270-28E00

STOPPER,BEAD

€ 38.00

42

0832211088
ref: 42
08322-01087

WASHER

€ 2.00

43

0831012068
ref: 43
08310-00067

NUT

€ 2.50
