FRONT FORK
RM250 1981 (X) USA (E03)

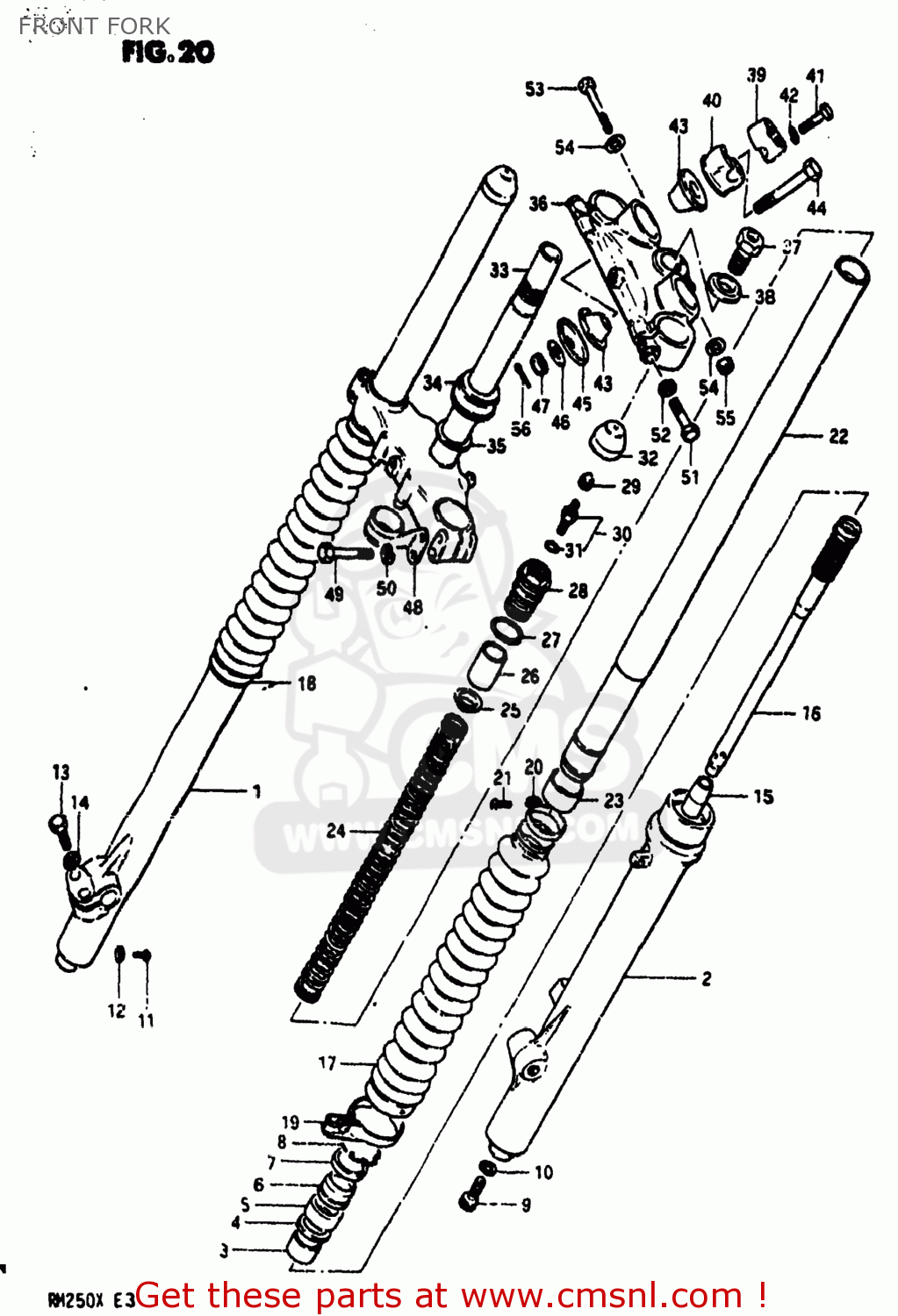

Front fork diagram RM250 1981 (X) USA (E03)
FRONT FORK RM250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511001425008C
ref: 0
DAMPER SET
€ 0.00
1
5113114230
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114114230
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714100
ref: 3
51167-13A00
METAL,SLIDE
€ 7.00
4
5115814100
ref: 4
WASHER(40X50X2.3)
€ 2.50
5
5115340300
ref: 5
SEAL,OIL
€ 11.50
6
5117340301
ref: 6
SEAL,DUST
€ 12.50
7
5114940301
ref: 7
CASE,DUST SEAL
€ 12.50
8
5115640301
ref: 8
RING,STOPPER
€ 4.50
9
5114740300
ref: 9
BOLT,CYLINDER
€ 5.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
€ 2.50
11
0211204088
ref: 11
02112-04087
SCREW
€ 1.50
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
5119514100
ref: 15
PIECE,OIL LOCK
€ 8.50
16-1
5114614100
ref: 16-1
CYLINDER,FRONT FORK
€ 59.50
16-2
5114614250
ref: 16-2
CYLINDER,FRONT FORK
€ 0.00
17
5157140300
ref: 17
BOOT
€ 31.50
18
5157340300
ref: 18
BAND,FRONT FORK COVER BOOT
€ 5.00
19
5157240300
ref: 19
BAND,FRONT FORK COVER BOOT
€ 9.00
20
5157540300
ref: 20
51575-44B00
BAND,BOOT
€ 9.00
21
0211204108
ref: 21
02112-04107
SCREW 4X10
€ 2.00
22-1
5111014100
ref: 22-1
TUBE,FORK,INNER
€ 120.00
22-2
5111014250
ref: 22-2
TUBE,FORK,INNER
€ 211.50
23
5112114100
ref: 23
PISTON
€ 10.50
24-1
5117114100
ref: 24-1
SPRING,FRONT FORK
€ 41.50
24-2
5117114250
ref: 24-2
SPRING,FRONT FORK
€ 0.00
25-1
5117240300
ref: 25-1
GUIDE
€ 5.00
25-2
5117214250
ref: 25-2
GUIDE,FRONT FORK SPRING
€ 3.50
26-1
5117614100
ref: 26-1
SPACER,FRONT FORK SPRING
€ 28.50
26-2
5117614250
ref: 26-2
SPACER,FRONT FORK SPRING
€ 0.00
27
5111740300
ref: 27
O RING
€ 2.50
28
5135140300
ref: 28
CAP,FORK INNER TUBE
€ 37.00
29
5129440400
ref: 29
CAP,VALVE AIR
€ 4.00
30
5129349001
ref: 30
VALVE
€ 18.00
31
5111741211
ref: 31
O RING
€ 6.50
32
5118941220
ref: 32
CAP
€ 6.00
33
514101410008C
ref: 33
51410-14310-08C
STEM,STEERING
€ 157.00
34
0926530005
ref: 34
09265-30009
BEARING
€ 49.50
35
0821130402
ref: 35
09181-30184
WASHER,THRUST
€ 4.00
36
513114040008C
ref: 36
HEAD,STEERING STEM
€ 0.00
37
5135141320
ref: 37
BOLT
€ 8.50
38
5135641310
ref: 38
WASHER
€ 6.00
39
562114030008C
ref: 39
HOLDER,HANDLEBAR
€ 7.00
40
562214040008C
ref: 40
HOLDER,HANDLEBAR,LOWER
€ 40.00
41
0110708358
ref: 41
01500-0835B
BOLT
€ 3.50
42
0832131088
ref: 42
08321-01087
WASHER,LOCK,8.
€ 2.00
43
5624140400
ref: 43
CUSHION,HANDLE HOLDER
€ 4.00
44
5132140400
ref: 44
BOLT,HANDLE HOLDER
€ 4.00
45
5172140400
ref: 45
COVER,HANDLEBAR HOLDER
€ 4.50
46
5135640400
ref: 46
09160-10035
WASHER,HANDLEBAR HOLDER
€ 2.00
47
0831921108
ref: 47
09159-10027
NUT
€ 3.00
48
5862140301
ref: 48
CLIP,CABLE
€ 14.50
49
0110708458
ref: 49
01500-08453
BOLT 8X45
€ 2.50
50
0832131088
ref: 50
08321-01087
WASHER,LOCK,8.
€ 2.00
51
0110710458
ref: 51
01500-1045A
BOLT
€ 2.00
52
0832131088
ref: 52
08321-01087
WASHER,LOCK,8.
€ 2.00
53
0110708508
ref: 53
01500-08507
BOLT 8X50
€ 3.00
54
0832221088
ref: 54
08322-01087
WASHER
€ 2.00
55
0831012088
ref: 55
08310-00087
NUT
€ 2.00
56
0411120208
ref: 56
04111-2020A
PIN 20X20
€ 1.50
