STAND - FOOTREST

RM250 1981 (X) USA (E03)

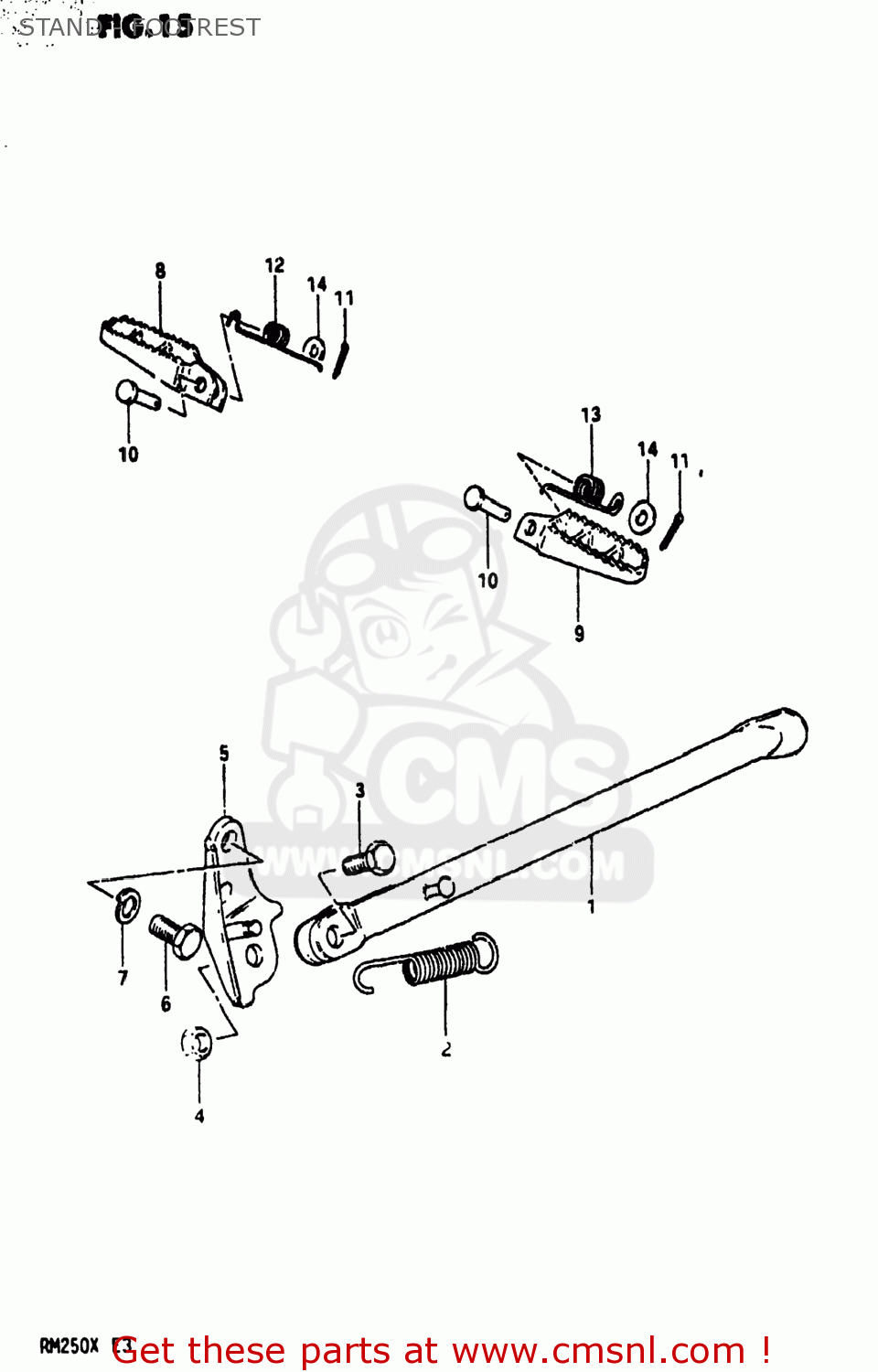

Stand - footrest diagram RM250 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

4231014201
ref: 1
42310-14400-019

STAND,SIDE

€ 79.00

0944317007
ref: 2

SPRING

€ 4.50

0910010067
ref: 3

BOLT(10X30)

€ 3.50

0831022108
ref: 4
08310-00107

NUT

€ 2.50

4233014100
ref: 5
42330-14400-019

BRACKET,SIDE STAND

€ 97.50

0910010118
ref: 6

BOLT(10X19)

€ 3.00

0832121108
ref: 7
08321-01107

LOCK WASHER

€ 2.00

4355137201
ref: 8
43551-37202-019

FOOTREST,RIGHT

€ 31.00

4356140401
ref: 9
43561-40401-019

FOOTREST

€ 24.50

0920008035
ref: 10
09200-08064

PIN

€ 6.50

0411120208
ref: 11
04111-2020A

PIN 20X20

€ 1.50

0944814021
ref: 12

SPRING

€ 3.00

0944814023
ref: 13
09448-14024

SPRING

€ 4.00

0832221088
ref: 14
08322-01087

WASHER

€ 2.00

STAND - FOOTREST
