ELECTRICAL

RM250 1981 (X) USA (E03)

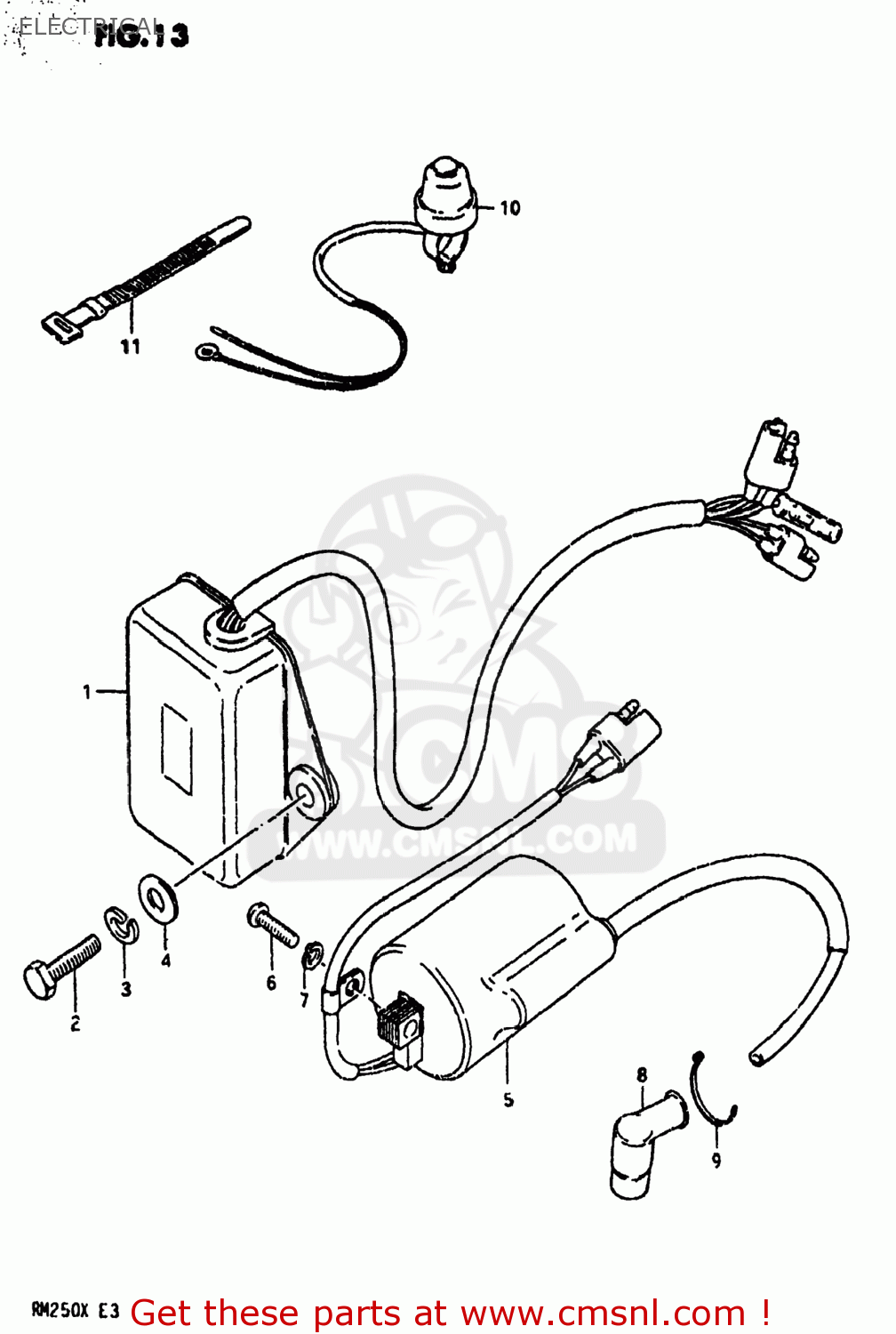

Electrical diagram RM250 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

3290014210
ref: 1

CDI UNIT

€ 0.00

0110706208
ref: 2
01500-06207

BOLT

€ 2.00

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

0916006019
ref: 4

WASHER(6.5X16X1.2)

€ 1.50

3341028600
ref: 5

COIL ASSY,IGNITION

€ 82.50

0211205208
ref: 6
02112-05207

SCREW 5X20

€ 3.00

0832121058
ref: 7
08321-0105A

LOCK WASHER

€ 2.00

3351041111
ref: 8
33510-20A02

CAP,SPARK PLUG

€ 23.00

0940709402
ref: 9

CLAMP

€ 3.00

3782040400
ref: 10
37820-14X50

SWITCH ASSEMBLY

€ 24.50

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
