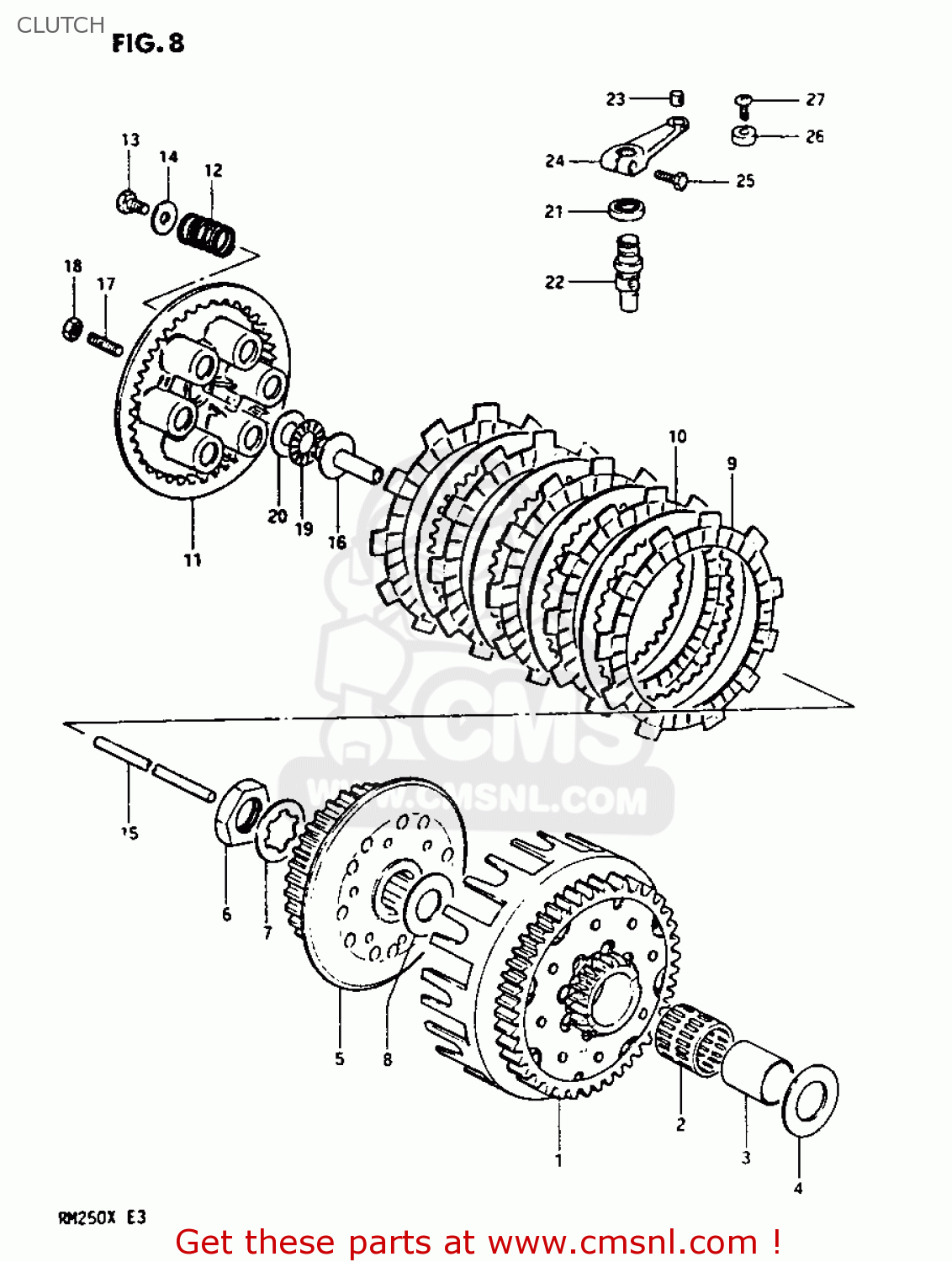

CLUTCH

ref

part #

description

quantity

1

2120014300
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 185.50

2

0926325004
ref: 2

ROLLER BEARING (25X30X2

€ 15.00

3

0918020025
ref: 3

SPACER

€ 7.50

4

0916020028
ref: 4

WASHER(20X38X2)

€ 6.50

5

2141140301
ref: 5

HUB,CLUTCH SLEEVE

€ 57.50

6

0914020002
ref: 6

NUT (20MM)

€ 3.50

7

0916720009
ref: 7

WASHER,LOCK

€ 3.00

8

0916020028
ref: 8

WASHER(20X38X2)

€ 6.50

9

2144137400
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

10-1

2145131000
ref: 10-1

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

10-2

2145131000
ref: 10-2
OPT

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

11

2146214301
ref: 11

DISC,CLUTCH PRESSURE

€ 51.00

12

0944019007
ref: 12

SPRING

€ 3.00

13

0150006167
ref: 13

BOLT

€ 3.00

14

0916006066
ref: 14

WASHER(6.5X20X1.6)

€ 2.00

15

2311139101
ref: 15

ROD,CLUTCH PUSH

€ 11.50

16

2312140301
ref: 16

PIECE,CLUTCH PUSH

€ 17.00

17

0913406010
ref: 17

SCREW(6X25)

€ 3.00

18

0831022067
ref: 18

NUT 6MM

€ 2.50

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0916015045
ref: 20

WASHER(15.5X28X1)

€ 4.00

21

0928512004
ref: 21

SEAL,OIL(12X19X5)

€ 9.00

22

2312240902
ref: 22

SHAFT,CLUTCH RELEASE C

€ 39.00

23

2322214200
ref: 23

PIECE,RELEASE ARM END

€ 7.50

24

2327114200
ref: 24

ARM,CLUTCH RELEASE

€ 39.50

25

0150006207
ref: 25

BOLT

€ 2.00

26

2328140300
ref: 26

GUIDE,CLUTCH CABLE

€ 4.50

27

0215206168
ref: 27

SCREW

€ 2.00

all assemblies
