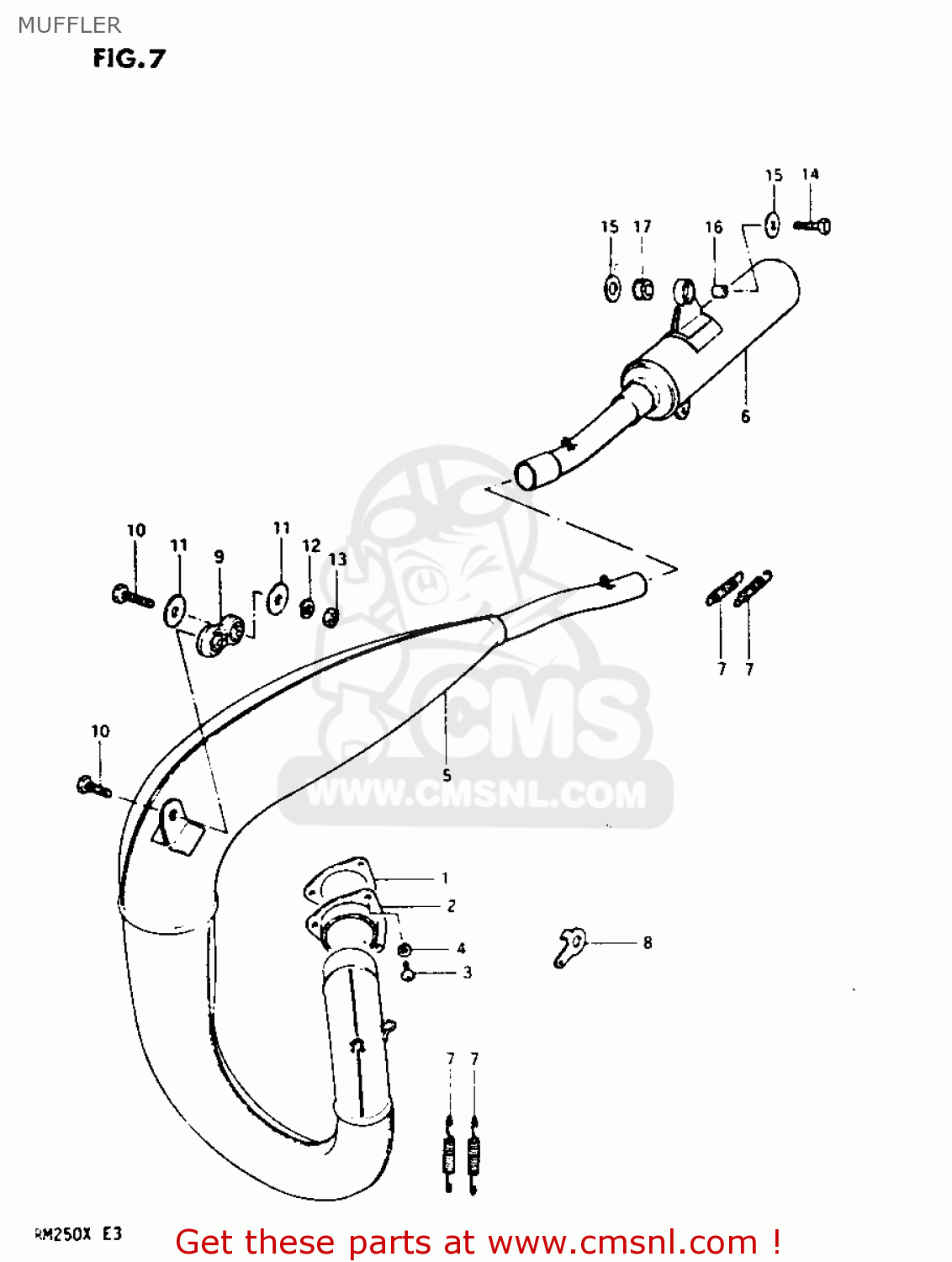

MUFFLER

ref

part #

description

quantity

1

1418116300
ref: 1

GASKET,EXHAUST PIPE (MCA)

€ 4.00

2

1417016301
ref: 2

FLANGE,EXHAUST PIPE

€ 70.50

3

0211206167
ref: 3

SCREW

€ 2.50

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

1431014200H01
ref: 5

MUFFLER ASSEMBLY,FIRST

€ 99.50

6

1433014310H01
ref: 6

BODY,MUFFLER,SECOND

€ 174.50

6

1433014310H01
ref: 6

BODY,MUFFLER,SECOND

€ 174.50

7

0944311002
ref: 7

SPRING

€ 4.50

8

1441140300
ref: 8

HOOK,MUFFLER FIT SPRING

€ 2.00

9

1477040000
ref: 9

DAMPER,MUFFLER

€ 139.00

10

0910008176
ref: 10

BOLT(8X32)

€ 2.00

11

0916008035
ref: 11

WASHER

€ 2.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0831000087
ref: 13

NUT

€ 2.00

14

0910008176
ref: 14

BOLT(8X32)

€ 2.00

15

0916008002
ref: 15

WASHER (8.5X29X1.6)

€ 2.00

16

0918008102
ref: 16

SPACER (8.6X12X17.5)

€ 3.00

17

0932012043
ref: 17

CUSHION

€ 8.00

all assemblies
