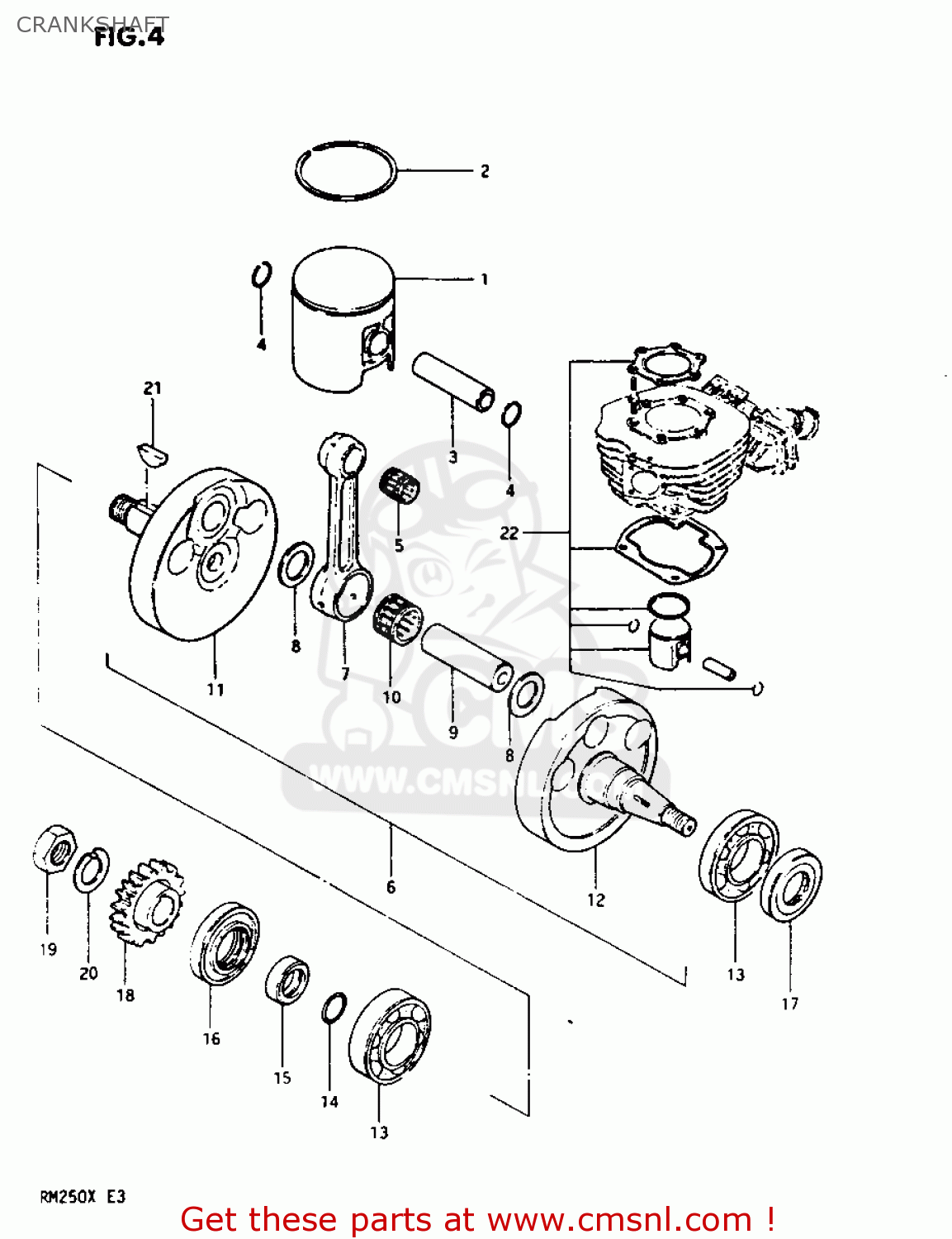

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040312
ref: 1-1

PISTON (67.00MM)

€ 71.00

1-2

1211040312025
ref: 1-2

PISTON (67.25MM)

€ 68.00

1-3

1211040312050
ref: 1-3

PISTON (67.50MM)

€ 111.50

2-1

1214141620
ref: 2-1

RING,PISTON

€ 22.50

2-2

1214141600025
ref: 2-2

RING,PISTON

€ 26.00

2-3

1214141600050
ref: 2-3

RING,PISTON

€ 22.50

3

1215145501
ref: 3

PIN,PISTON (18MM)

€ 14.00

4

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

5

0926318014
ref: 5

BEARING(18X22X22)

€ 20.50

6

1220014202
ref: 6

CRANKSHAFT ASSEMBLY

€ 0.00

7

1216114200
ref: 7

ROD,CONNECTING

€ 82.00

8

0916024015
ref: 8

WASHER(24X29X1.5)

€ 7.50

9

1221140300
ref: 9

PIN,CRANK

€ 33.00

10

0926324023
ref: 10

BEARING

€ 62.50

11

1222114202
ref: 11

CRANKSHAFT

€ 358.50

12

1226114202
ref: 12

CRANKSHAFT,LEFT

€ 134.00

13

0926230064
ref: 13

BALL BEARING 30X62X16

€ 38.00

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

1235914201
ref: 15

SPACER,PRIMARY DRIVE GEAR

€ 15.00

16

0928936003
ref: 16

SEAL,OIL(36X52X8)

€ 47.00

17

0928320034
ref: 17

SEAL,OIL(19.6X37X8)

€ 6.00

18

2111140302
ref: 18

GEAR,PRIMARY DRIVE

€ 41.00

19

0914014017
ref: 19

NUT

€ 4.00

20

0916614010
ref: 20

WASHER

€ 2.00

21

0834131059
ref: 21

KEY

€ 3.00

22-1

1210014830
ref: 22-1

PISTON SET

€ 0.00

22-2

1210014830025
ref: 22-2

PISTON KIT (OS:0.25)

€ 0.00

all assemblies
