ELECTRICAL

RM250 1981 (X)

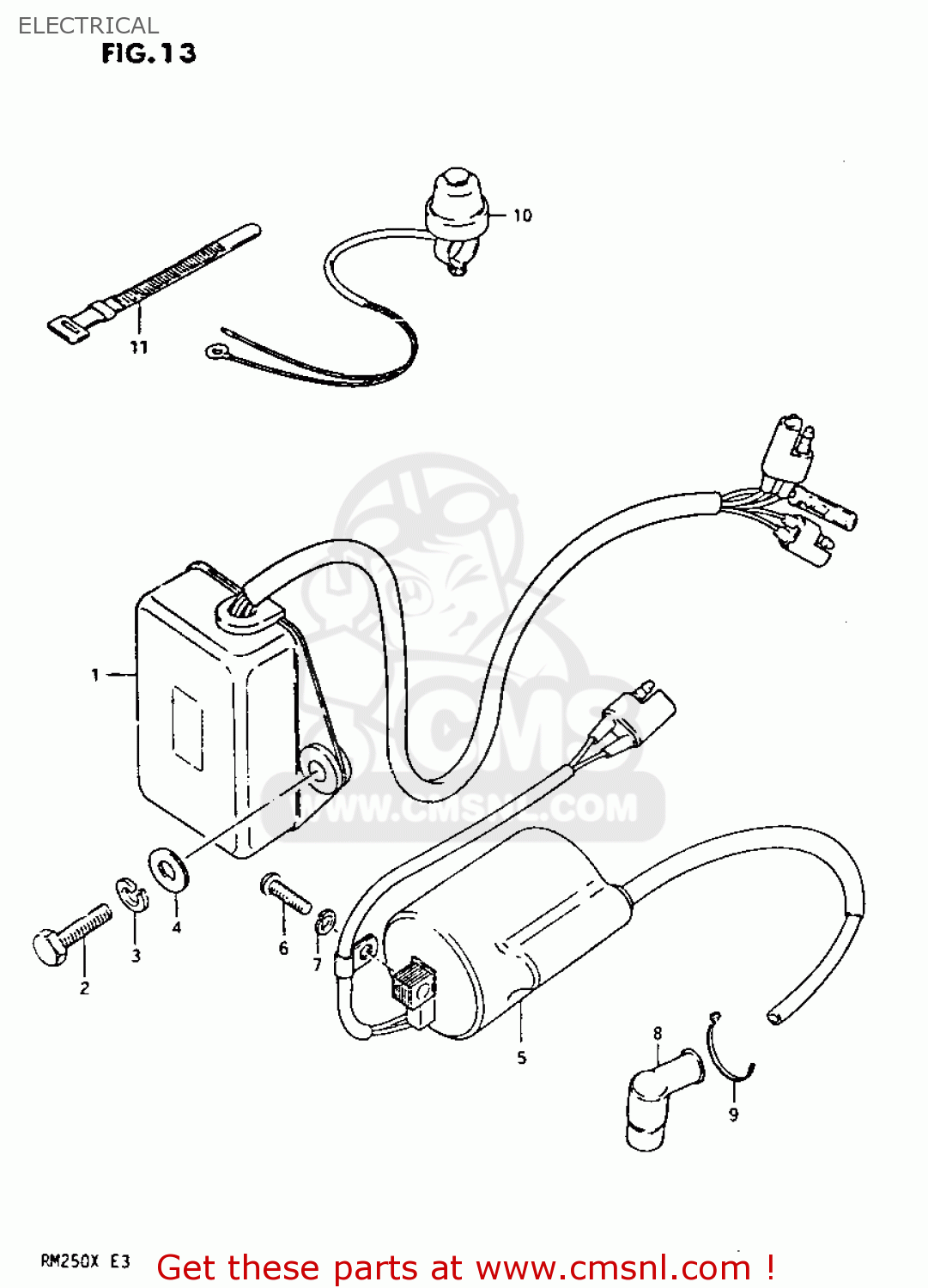

Electrical diagram RM250 1981 (X)

ELECTRICAL RM250 1981 (X)

ELECTRICAL RM250 1981 (X)

prices are in EUR

ref

part #

description

quantity

1

3290014210
ref: 1

CDI UNIT

€ 0.00

2

0150006207
ref: 2

BOLT

€ 2.00

3

0832101067
ref: 3

WASHER,LOCK

€ 2.50

4

0916006019
ref: 4

WASHER(6.5X16X1.2)

€ 1.50

5

3341028600
ref: 5

COIL ASSY,IGNITION

€ 82.50

6

0211205208
ref: 6

SCREW 5X20

€ 3.00

7

0832121057
ref: 7

LOCK WASHER

€ 2.00

8

3351020A00
ref: 8

CAP,SPARK PLUG

€ 23.00

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10

SWITCH ASSEMBLY

€ 24.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
