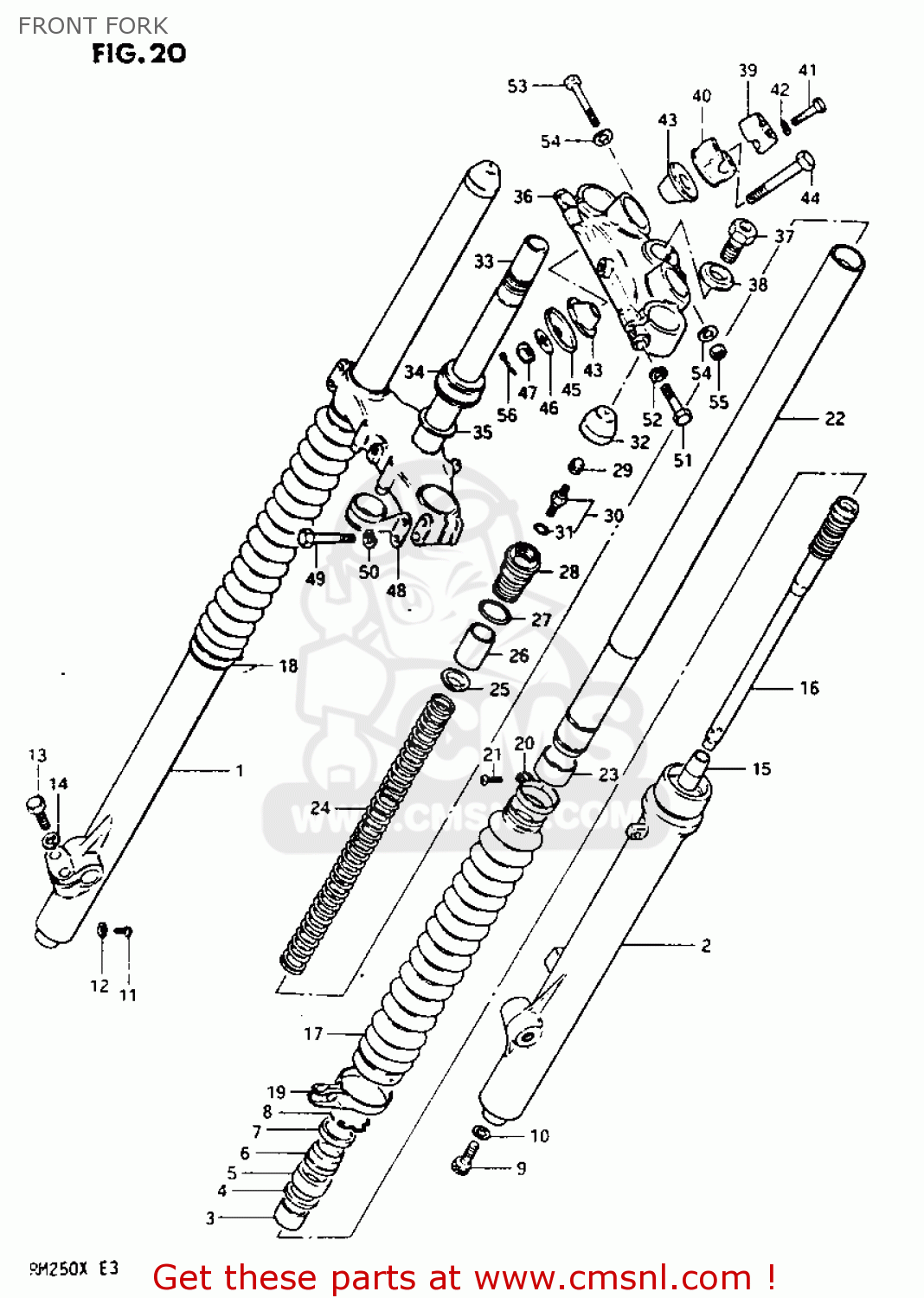

FRONT FORK

ref

part #

description

quantity

1

511001425008C
ref: 1
NIL REF.NO.56

DAMPER SET

€ 0.00

1

5113114230
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114114230
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5116713A00
ref: 3

METAL,SLIDE

€ 7.00

4

5115814100
ref: 4

WASHER(40X50X2.3)

€ 2.50

5

5115340300
ref: 5

SEAL,OIL

€ 11.50

6

5117340301
ref: 6

SEAL,DUST

€ 12.50

7

5114940301
ref: 7

CASE,DUST SEAL

€ 12.50

8

5115640301
ref: 8

RING,STOPPER

€ 4.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

0211204087
ref: 11

SCREW

€ 1.50

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

0110708307
ref: 13

BOLT

€ 2.50

14

0832131087
ref: 14

WASHER,LOCK

€ 2.00

15

5119514100
ref: 15

PIECE,OIL LOCK

€ 8.50

16-1

5114614100
ref: 16-1
-F.NO.101073

CYLINDER,FRONT FORK

€ 59.50

16-2

5114614250
ref: 16-2
F.NO.101074-

CYLINDER,FRONT FORK

€ 0.00

17

5157140300
ref: 17

BOOT

€ 31.50

18

5157340300
ref: 18

BAND,FRONT FORK COVER BOOT

€ 5.00

19

5157240300
ref: 19

BAND,FRONT FORK COVER BOOT

€ 9.00

20

5157544B00
ref: 20

BAND,BOOT

€ 9.00

21

1360238A10
ref: 21

SCREW

€ 2.00

22-1

5111014100
ref: 22-1
-F.NO.101073

TUBE,FORK,INNER

€ 120.00

22-2

5111014250
ref: 22-2
F.NO.101074-

TUBE,FORK,INNER

€ 211.50

23

5112114100
ref: 23

PISTON

€ 10.50

24-1

5117114100
ref: 24-1
-F,NO.101073

SPRING,FRONT FORK

€ 41.50

24-2

5117114250
ref: 24-2
F.NO.101074-

SPRING,FRONT FORK

€ 0.00

25-1

5117240300
ref: 25-1
-F.NO.101073

GUIDE

€ 5.00

25-2

5117214250
ref: 25-2
F.NO.101074-

GUIDE,FRONT FORK SPRING

€ 3.50

26-1

5117614100
ref: 26-1
-F.NO.101073

SPACER,FRONT FORK SPRING

€ 28.50

26-2

5117614250
ref: 26-2
F.NO.101074-

SPACER,FRONT FORK SPRING

€ 0.00

27

5111740300
ref: 27

O RING

€ 2.50

28

5135140300
ref: 28

CAP,FORK INNER TUBE

€ 37.00

29

5129440400
ref: 29

CAP,VALVE AIR

€ 4.00

30

5129349001
ref: 30

VALVE

€ 18.00

31

5111741211
ref: 31

O RING

€ 6.50

32

5118941220
ref: 32

CAP

€ 6.00

33

514101431008C
ref: 33

STEM,STEERING

€ 157.00

34

0926530009
ref: 34

BEARING(30X55X17)

€ 49.50

35

0821130402
ref: 35

WASHER,THRUST

€ 4.00

36

513114040008C
ref: 36

HEAD,STEERING STEM

€ 0.00

37

5135141320
ref: 37

BOLT

€ 8.50

38

5135641310
ref: 38

WASHER

€ 6.00

39

562114030008C
ref: 39

HOLDER,HANDLEBAR

€ 7.00

40

562214040008C
ref: 40

HOLDER,HANDLEBAR,LOWER

€ 40.00

41

0110708358
ref: 41

BOLT

€ 3.50

42

0832131087
ref: 42

WASHER,LOCK

€ 2.00

43

5624140400
ref: 43

CUSHION,HANDLE HOLDER

€ 4.00

44

5132140400
ref: 44

BOLT,HANDLE HOLDER

€ 4.00

45

5172140400
ref: 45

COVER,HANDLEBAR HOLDER

€ 4.50

46

5135640400
ref: 46

WASHER,HANDLEBAR HOLDER

€ 2.00

47

0915910027
ref: 47

NUT

€ 3.00

48

5862140301
ref: 48

CLIP,CABLE

€ 14.50

49

0110708458
ref: 49

BOLT 8X45

€ 2.50

50

0832131087
ref: 50

WASHER,LOCK

€ 2.00

51

0110710458
ref: 51

BOLT

€ 2.00

52

0832131087
ref: 52

WASHER,LOCK

€ 2.00

53

0110708508
ref: 53

BOLT 8X50

€ 3.00

54

0832221088
ref: 54

WASHER

€ 2.00

55

0831012088
ref: 55

NUT

€ 2.00

56

0411120208
ref: 56

PIN 20X20

€ 1.50
