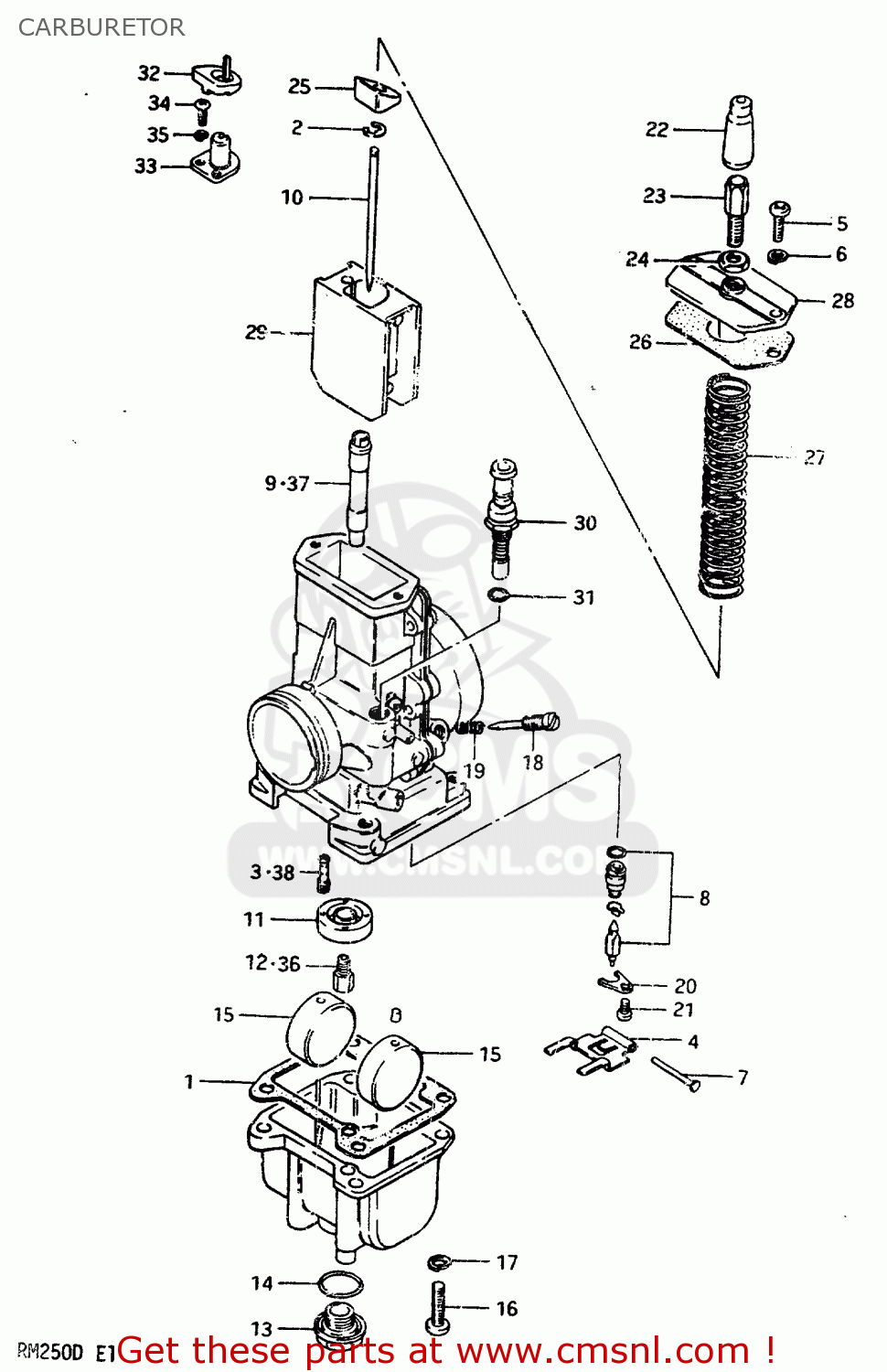

CARBURETOR

ref

part #

description

quantity

1

1320014300
ref: 1
MODEL Z

CARBURETOR ASSEMBLY

€ 0.00

1

1320014310
ref: 1
MODEL D

CARBURETOR ASSEMBLY (VM38)

€ 0.00

1

1325114300
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

2

1339410010
ref: 2

CLIP

€ 4.50

3

0949255005
ref: 3

JET,PILOT

€ 6.50

4

1325340010
ref: 4

ARM,FLOAT

€ 8.00

5

0211204128
ref: 5

SCREW

€ 1.50

6

0832121047
ref: 6

WASHER,LOCK 4M

€ 2.00

7

1325492311
ref: 7

PIN,FLOAT

€ 2.00

8

1337014300
ref: 8

VALVE ASSEMBLY,NEEDLE

€ 52.50

9-1

0949400356
ref: 9-1
MODEL Z

JET,NEEDLE

€ 17.00

9-2

0949400393
ref: 9-2
MODEL D

JET,NEEDLE

€ 20.00

10

1338314300
ref: 10

NEEDLE,JET

€ 12.50

11

1333114300
ref: 11

RING,MAIN JET FIXING

€ 0.00

12-1

0949158002
ref: 12-1
MODEL Z

JET,MAIN(290)

€ 7.50

12-2

0949160007
ref: 12-2
MODEL D

JET,MAIN(300)

€ 9.50

13

1324732210
ref: 13

SCREW,GUIDE

€ 13.00

14

1324941310
ref: 14

O RING,DRAIN PLUG

€ 5.00

15

1325218620
ref: 15

FLOAT

€ 27.50

16

0211205208
ref: 16

SCREW 5X20

€ 3.00

17

0832121057
ref: 17

LOCK WASHER

€ 2.00

18

1326946010
ref: 18

SCREW,PILOT AIR

€ 8.50

19

1326801010
ref: 19

SPRING

€ 3.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204068
ref: 21

SCREW 4X6

€ 2.00

22

1368133010
ref: 22

CAP,CABLE ADJUSTER

€ 8.00

23

1357741612
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1338714300
ref: 25
MODEL Z

SEAT,RETURN SPRING

€ 5.50

26

1326614300
ref: 26

GASKET,MIXING CHAMBER (NAS)

€ 4.00

27

1357314300
ref: 27

SPRING,THROTTLE VALVE

€ 7.50

28

1326114300
ref: 28

CAP,CARBURETOR,TOP

€ 14.50

29

1355114300
ref: 29

VALVE,THROTTLE

€ 68.00

30

1340014500
ref: 30

PLUNGER ASSEMBLY

€ 39.00

31

1329515010
ref: 31

O-RING

€ 3.00

32

1338714230
ref: 32
MODEL D

SEAT,RETURN SPRING

€ 6.00

33

1339814310
ref: 33
MODEL D

PLATE,NEEDLE JET

€ 7.00

34

0211203107
ref: 34
MODEL D

SCREW

€ 1.50

35

0916203001
ref: 35
MODEL D

WASHER,LOCK

€ 1.50

36-1

0949154002
ref: 36-1
OPT

JET,MAIN(270)

€ 11.50

36-2

0949156001
ref: 36-2
OPT

JET

€ 14.50

36-3

0949162005
ref: 36-3
OPT

JET,MAIN(310)

€ 10.50

36-4

0949164002
ref: 36-4
OPT

JET,MAIN(320)

€ 8.50

36-5

0949166002
ref: 36-5
OPT

JET,MAIN(330)

€ 10.50

37-1

0949400357
ref: 37-1
OPT

JET,NEEDLE(R-0)

€ 16.50

37-2

0949400356
ref: 37-2
OPT

JET,NEEDLE

€ 17.00

38-1

0949250010
ref: 38-1
OPT

JET,PILOT(50)

€ 8.00

38-2

0949260004
ref: 38-2
OPT

JET,PILOT

€ 7.50

all assemblies
