MUFFLER
RM250 1983 (D)

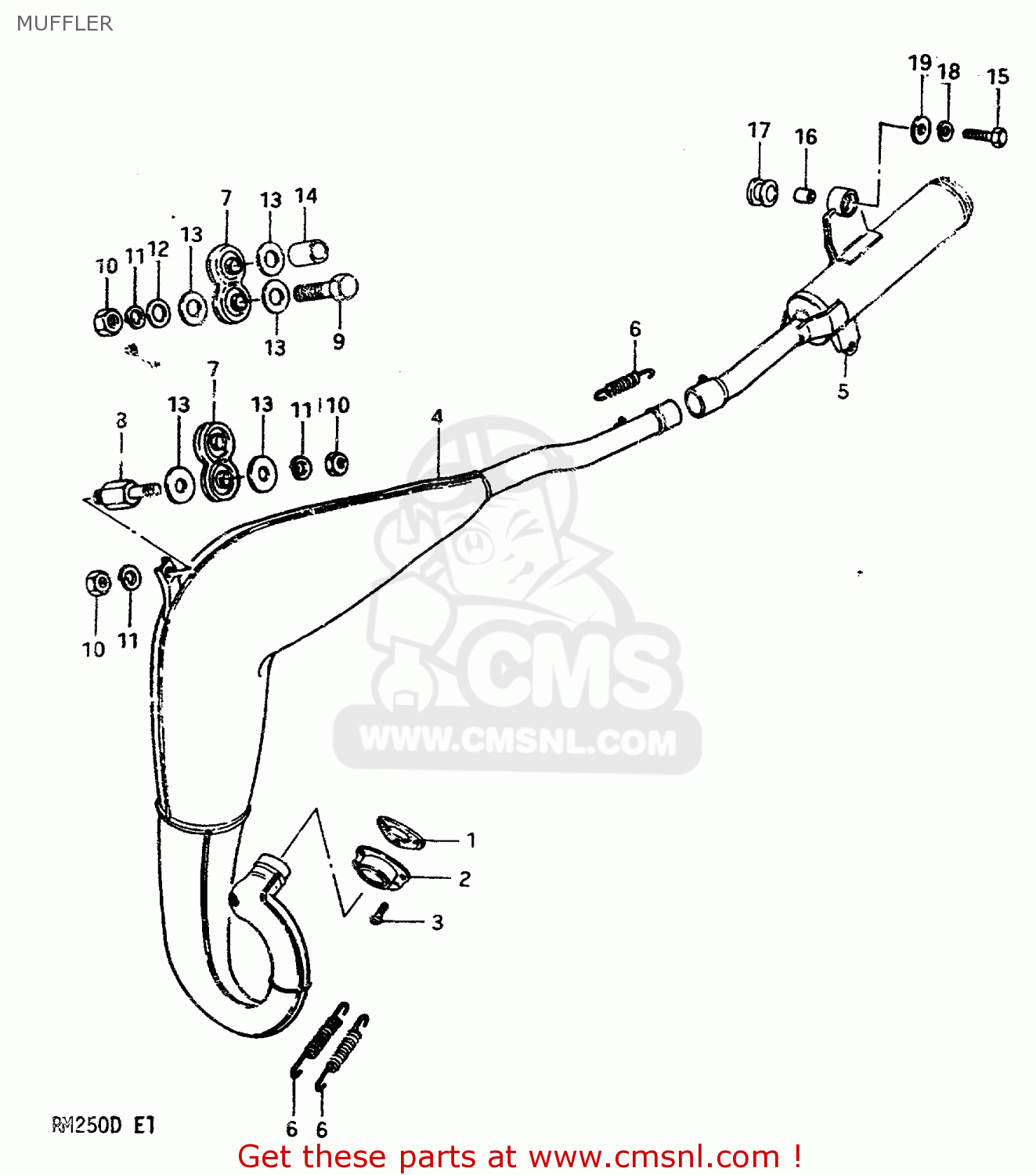

Muffler diagram RM250 1983 (D)
MUFFLER RM250 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
1418116300
ref: 1
GASKET,EXHAUST PIPE (MCA)
€ 4.00
2
1417000B20
ref: 2
FLANGE,EXHAUST PIPE
€ 56.00
3
0211206164
ref: 3
SCREW
€ 2.00
4
1431014310H01
ref: 4
BODY,MUFFLER,FIRST
€ 302.00
5
1433014310H01
ref: 5
BODY,MUFFLER,SECOND
€ 174.50
6
0944312024
ref: 6
SPRING
€ 5.50
7
1477040000
ref: 7
DAMPER,MUFFLER
€ 139.00
8
0910808099
ref: 8
MODEL Z
STUD
€ 0.00
9
0110708358
ref: 9
MODEL D
BOLT
€ 3.50
10
0831000087
ref: 10
NUT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0832211088
ref: 12
MODEL D
WASHER
€ 2.00
13
0916008035
ref: 13
WASHER
€ 2.00
14
0918008109
ref: 14
MODEL D
SPACER (8.6X16X23.5)
€ 3.00
15
0910008176
ref: 15
BOLT(8X32)
€ 2.00
16
0918008102
ref: 16
SPACER (8.6X12X17.5)
€ 3.00
17
0932012043
ref: 17
CUSHION
€ 8.00
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
19
0916008002
ref: 19
WASHER (8.5X29X1.6)
€ 2.00
