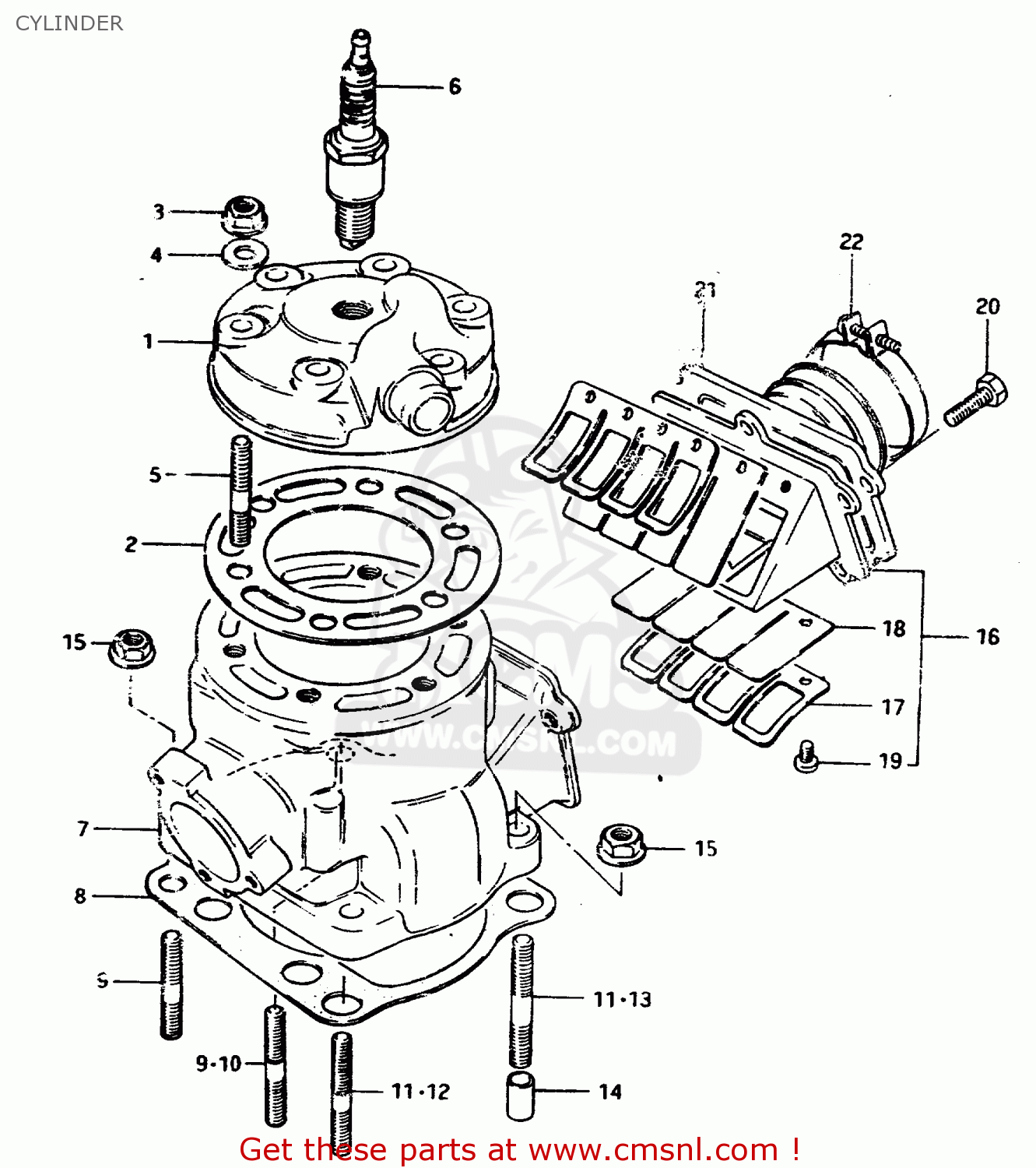

CYLINDER

ref

part #

description

quantity

1-1

1111114300
ref: 1-1
MODEL Z

HEAD,CYLINDER

€ 122.50

1-2

1111114601
ref: 1-2
MODEL D

HEAD,CYLINDER

€ 237.50

2-1

1114114311H17
ref: 2-1
MODEL Z

GASKET,CYLINDER HEAD (NAS)

€ 39.50

2-2

1114114311H17
ref: 2-2
MODEL D

GASKET,CYLINDER HEAD (NAS)

€ 39.50

3

0831616085
ref: 3

NUT 8MM

€ 3.00

4

0916008053
ref: 4

WASHER (8.5X19X2.3)

€ 2.00

5-1

0910808102
ref: 5-1
MODEL Z

BOLT,STUD

€ 4.00

5-2

0910808105
ref: 5-2
MODEL D

STUD

€ 4.00

6

0948200208
ref: 6

PLUG,SPARK(NGK B-8EN)

€ 16.00

7-1

1121014303
ref: 7-1
-E.NO.107126

CYLINDER

€ 439.00

7-2

1121014303
ref: 7-2
E.NO.107127-

CYLINDER

€ 439.00

8-1

1124114600H17
ref: 8-1
MODEL Z

GASKET,CYLINDER (NAS)

€ 17.00

8-2

1124114600H17
ref: 8-2
MODEL D

GASKET,CYLINDER (NAS)

€ 17.00

9

0910808142
ref: 9
-E.NO.107126

BOLT,STUD

€ 3.00

10

0910808142
ref: 10
E.NO.107127-

BOLT,STUD

€ 3.00

11

0910808143
ref: 11
E.NO.107127-

BOLT,STUD

€ 3.00

12

0910808144
ref: 12
-E.NO.107126

BOLT,STUD

€ 4.50

13

0910808144
ref: 13
E.NO.107127-

BOLT,STUD

€ 4.50

14

0910808105
ref: 14
E.NO.107127-

STUD

€ 4.00

15

0421111169
ref: 15

PIN

€ 2.00

16

0831616085
ref: 16

NUT 8MM

€ 3.00

17

1315014201
ref: 17

VALVE ASSEMBLY,REED

€ 97.00

18

1315214200
ref: 18

STOPPER,REED VALVE

€ 97.00

19

1315314200
ref: 19

VALVE,REED

€ 15.50

20

0211203087
ref: 20

SCREW

€ 1.50

21

0150006207
ref: 21

BOLT

€ 2.00

22

1311014300
ref: 22

PIPE,INTAKE

€ 43.00

23

0940256208
ref: 23

CLAMP

€ 3.50
