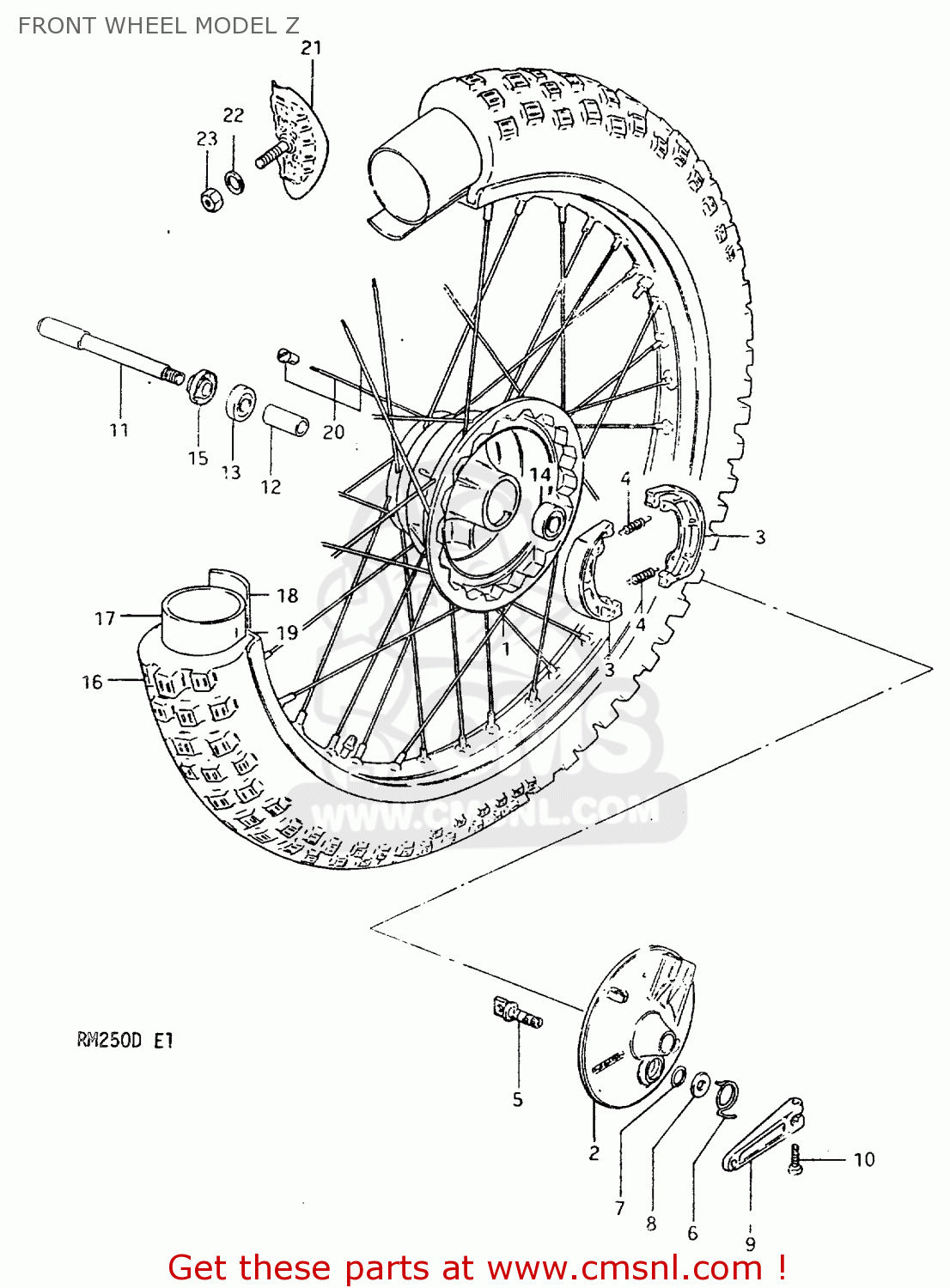

FRONT WHEEL MODEL Z

ref

part #

description

quantity

1

5411014202
ref: 1

HUB,FRONT

€ 156.50

2

5421014201
ref: 2

PANEL,FRONT HUB

€ 122.00

3

5441014200
ref: 3

SHOE,BRAKE

€ 45.00

4

0944308022
ref: 4

SPRING

€ 3.50

5

5444114201
ref: 5

CAM,FRONT BRAKE

€ 12.50

6

0944832007
ref: 6

SPRING

€ 8.00

7

0928012001
ref: 7

O RING(D:2.5,ID:11.4)

€ 2.50

8

0916012011
ref: 8

WASHER(12.5X20X1)

€ 1.50

9

5445114101
ref: 9

LEVER,FRONT BRAKE CAM

€ 35.50

10

0150006257
ref: 10

BOLT

€ 2.00

11

5471114500
ref: 11

AXLE,FRONT

€ 46.50

12

5473014100
ref: 12

SPACER,FRONT HUB BEARING

€ 23.00

13

0812362027
ref: 13

BEARING

€ 14.50

14

0814362027
ref: 14

BEARING

€ 12.50

15

5474014200
ref: 15

SPACER,FRONT AXLE,RIGHT

€ 8.50

16-1

5510014120
ref: 16-1
BS

TIRE,FRONT

€ 0.00

16-2

5510014240
ref: 16-2
DUN

TIRE,FRONT

€ 0.00

17

5520016510
ref: 17

TUBE

€ 32.50

18

5526116510
ref: 18

PROTECTOR,WHEEL,INNER

€ 5.00

19

5531114500
ref: 19

RIM,FRONT WHEEL (1.60X21)

€ 124.50

20

5532014212
ref: 20

SPOKE SET,FRONT

€ 40.50

21

6527014300
ref: 21

STOPPER,BEAD

€ 26.00

22

0832211088
ref: 22

WASHER

€ 2.00

23

0831000087
ref: 23

NUT

€ 2.00
