HANDLEBAR
RM250 1983 (D)

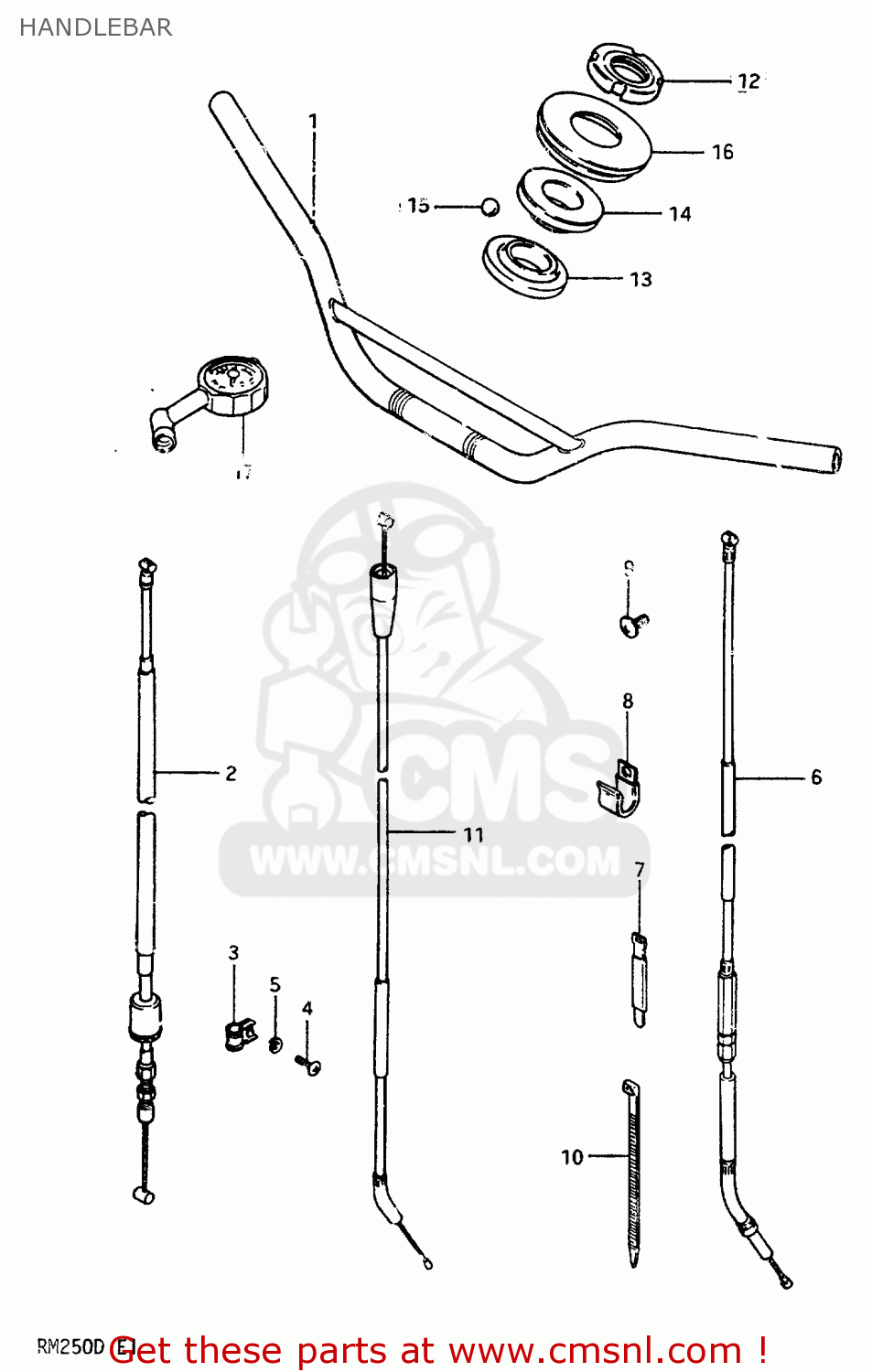

Handlebar diagram RM250 1983 (D)
HANDLEBAR RM250 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
561101421108C
ref: 1-1
MODEL Z
HANDLEBAR
€ 76.50
1-2
5611014211291
ref: 1-2
MODEL D
HANDLEBAR
€ 63.00
2-1
5810014202
ref: 2-1
MODEL Z
CABLE ASSY,FR BRAKE
€ 34.00
2-2
5810014310
ref: 2-2
MODEL D
CABLE ASSY,FR BRAKE
€ 31.50
3
5862014201
ref: 3
MODEL Z
GUIDE,CABLE
€ 6.50
4
0211206207
ref: 4
MODEL Z
SCREW
€ 2.00
5
0832101067
ref: 5
MODEL Z
WASHER,LOCK
€ 2.50
6
5820014301
ref: 6
CABLE ASSY,CLUTCH
€ 40.00
7
0940718301
ref: 7
CLAMP
€ 6.00
8
0940300069
ref: 8
CLAMP
€ 8.50
9
0215206108
ref: 9
MODEL D
SCREW
€ 2.00
10
0940720401
ref: 10
CLAMP
€ 4.50
11-1
5830014X07
ref: 11-1
MODLE Z
CABLE ASSY,THROTTLE
€ 30.50
11-2
5830014X08
ref: 11-2
MODEL D
CABLE ASSY,THROTTLE
€ 29.00
12
5163140200
ref: 12
NUT,STEERING STEM
€ 12.00
13
5161140201
ref: 13
RACE,STEERING INNER (SUJ)
€ 8.50
14
5162140200
ref: 14
RACE,STEERING,OUTER,UPPER
€ 17.00
15
0611108003
ref: 15
BALL
€ 1.50
16
5164340200
ref: 16
SEAL,STEERING UPR DUST
€ 7.50
17
9620041330
ref: 17
GAUGE ASSY,AIR PRESSURE
€ 77.50
