CARBURETOR (MODEL G)
RM250 1986 (G) USA (E03)

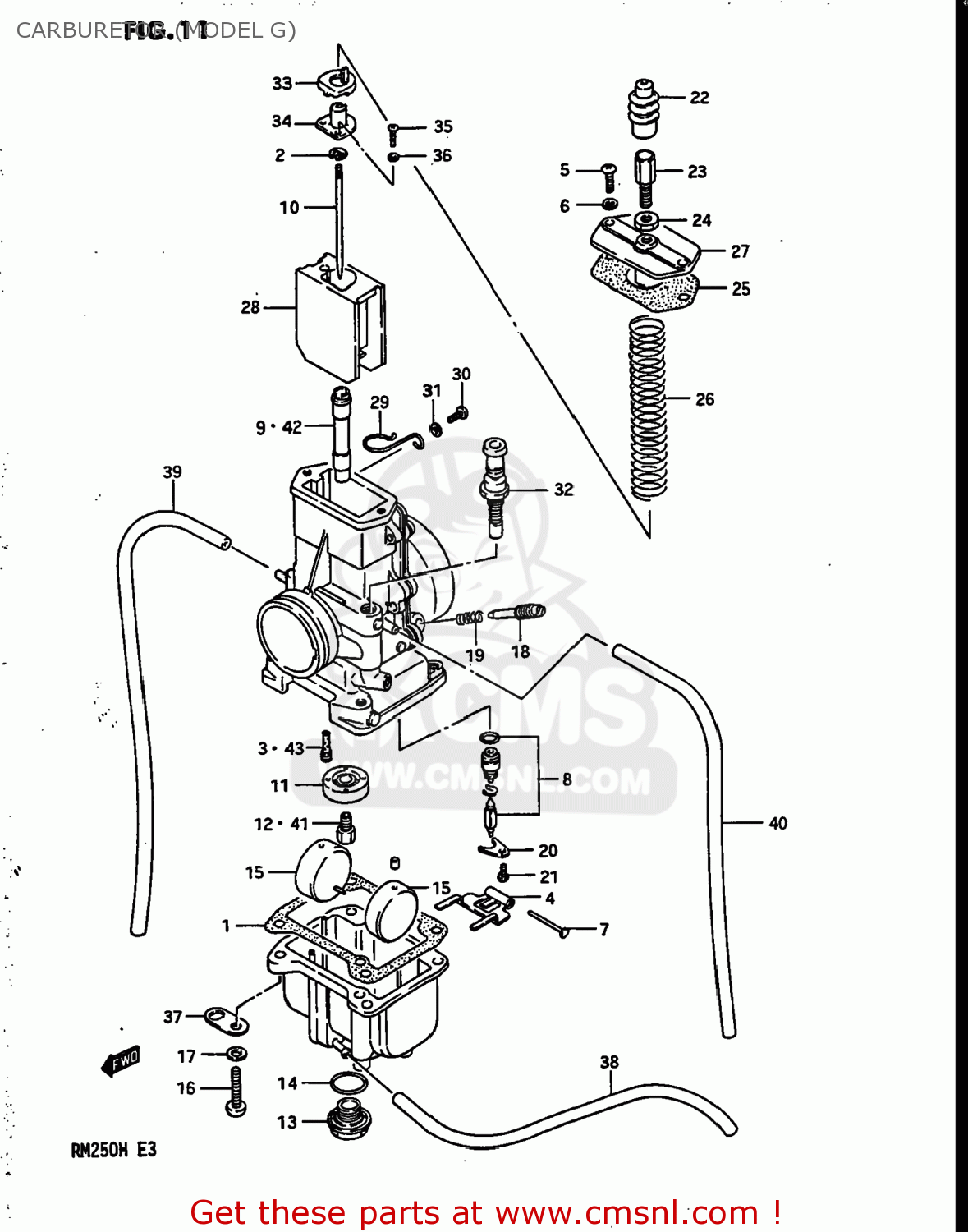

Carburetor (model g) diagram RM250 1986 (G) USA (E03)
CARBURETOR (MODEL G) RM250 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320000B00
ref:
CARBURETOR ASSEMBLY (VM38)
€ 447.50
1
1325114300
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2
1339410010
ref: 2
CLIP
€ 4.50
3
0949250010
ref: 3
JET,PILOT(50)
€ 8.00
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204126
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832121046
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337014300
ref: 8
13370-43B00
VALVE ASSEMBLY,NEEDLE
€ 52.50
9
0949400357
ref: 9
JET,NEEDLE(R-0)
€ 16.50
10
1338300B00
ref: 10
NEEDLE JET
€ 0.00
11
1333114300
ref: 11
RING,MAIN JET FIXING
€ 0.00
12
0949160007
ref: 12
JET,MAIN(300)
€ 9.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325218620
ref: 15
FLOAT
€ 27.50
16
0211205206
ref: 16
02112-0520B
SCREW
€ 2.50
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18
1326946010
ref: 18
13269-95110
SCREW,PILOT AIR
€ 8.50
19
1326801010
ref: 19
SPRING
€ 3.50
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204066
ref: 21
02112-0406B
SCREW
€ 2.00
22
1368141510
ref: 22
CAP,CABLE ADJUSTER
€ 11.00
23
1357741612
ref: 23
ADJUSTER,CABLE
€ 8.00
24
1366116600
ref: 24
NUT
€ 5.00
25
1326614300
ref: 25
GASKET,MIXING CHAMBER (NAS)
€ 4.00
26
1357314300
ref: 26
SPRING,THROTTLE VALVE
€ 7.50
27
1326114300
ref: 27
CAP,CARBURETOR,TOP
€ 14.50
28
1355100B00
ref: 28
VALVE,THROTTLE,CA (3.0)
€ 73.00
29
1369214500
ref: 29
CLIP
€ 4.00
30
0211204167
ref: 30
02112-0416A
SCREW
€ 1.00
31
0832121046
ref: 31
08321-0104A
LOCK WASHER
€ 2.00
32
1340014500
ref: 32
PLUNGER ASSEMBLY
€ 39.00
32
1340014500
ref: 32
PLUNGER ASSEMBLY
€ 39.00
33
1338714230
ref: 33
SEAT,RETURN SPRING
€ 6.00
34
1339814310
ref: 34
PLATE,NEEDLE JET
€ 7.00
35
0211203106
ref: 35
02112-0310B
SCREW
€ 1.50
36
0832121036
ref: 36
08321-2103B
LOCK WASHER
€ 1.50
37
1369313A00
ref: 37
PLATE
€ 3.50
38
0934304046
ref: 38
09352-40703-600
HOSE
€ 3.00
39
0934304046
ref: 39
09352-40703-600
HOSE
€ 3.00
40
0934304046
ref: 40
09352-40703-600
HOSE
€ 3.00
41-1
0949156001
ref: 41-1
09491-56003
JET
€ 14.50
41-2
0949158002
ref: 41-2
JET,MAIN(290)
€ 7.50
41-3
0949162005
ref: 41-3
JET,MAIN(310)
€ 10.50
41-4
0949166002
ref: 41-4
JET,MAIN(330)
€ 10.50
41-5
0949168002
ref: 41-5
JET,MAIN(340)
€ 8.50
42-1
0949400453
ref: 42-1
JET
€ 19.50
42-2
0949400356
ref: 42-2
JET,NEEDLE
€ 17.00
42-3
0949400393
ref: 42-3
JET,NEEDLE
€ 20.00
43-1
0949240004
ref: 43-1
JET,PILOT(40)
€ 17.50
43-2
0949260004
ref: 43-2
JET,PILOT
€ 7.50
43-2
0949260004
ref: 43-2
JET,PILOT
€ 7.50
