CUSHION LEVER (MODEL H)
RM250 1986 (G) USA (E03)

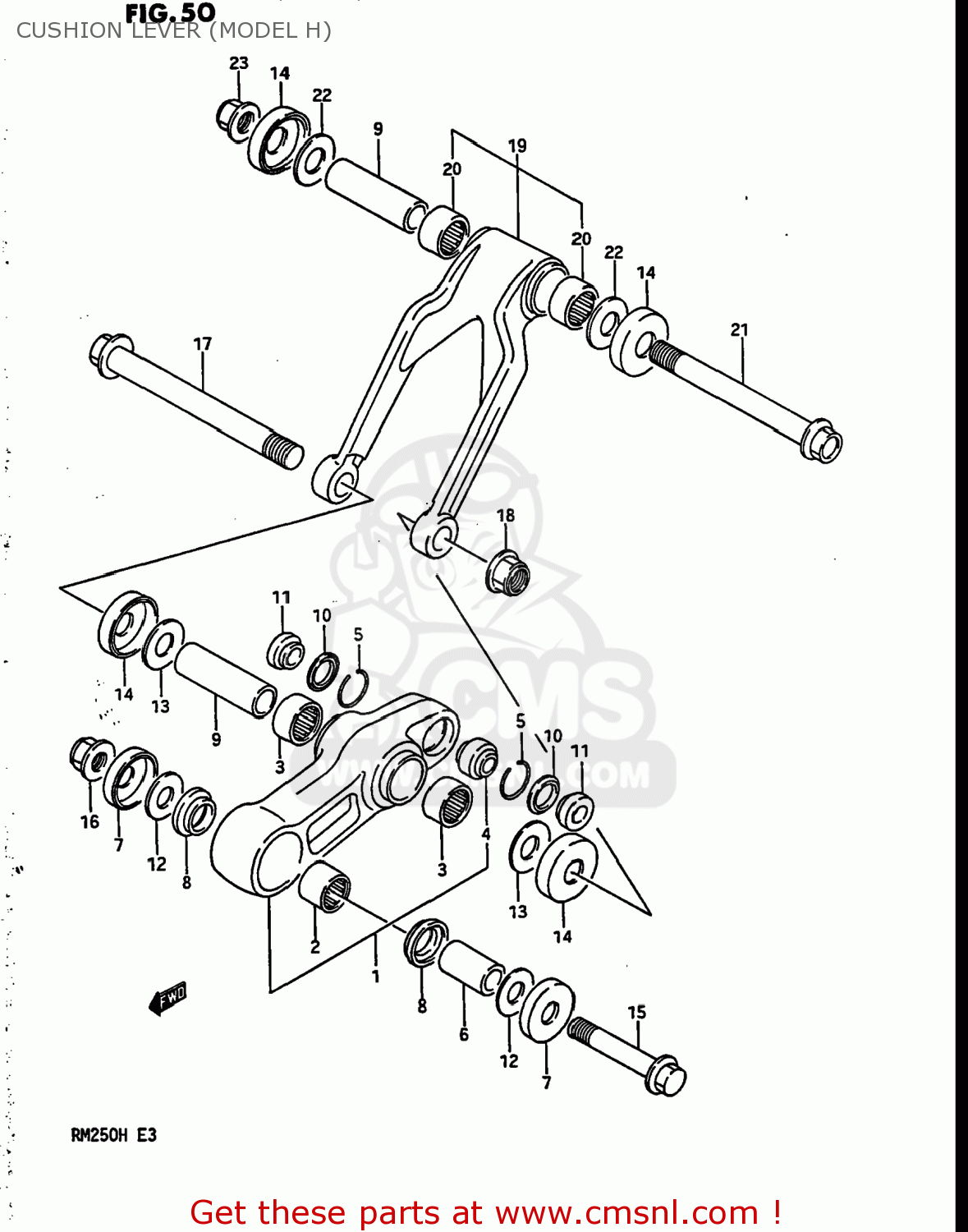

Cushion lever (model h) diagram RM250 1986 (G) USA (E03)
CUSHION LEVER (MODEL H) RM250 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260001851
ref: 1
LEVER SET,REAR CUSHION
€ 146.50
2
0926320053
ref: 2
BEARING(20X27X25)
€ 15.50
3
0926320063
ref: 3
BEARING(20X27X20)
€ 34.00
4
6217500B00
ref: 4
BEARING,RR CUSHION LEVER
€ 66.00
5
6227714200
ref: 5
62657-34A01
RING
€ 1.50
6
6231700B20
ref: 6
62317-27C10
SPACER,REAR CUSHION LEVER
€ 9.00
7
6126240200
ref: 7
61262-03B00
COVER,REAR SWING ARM DUST
€ 5.00
8
6231601B20
ref: 8
COLLAR,RR CUSHION LEVER FR
€ 13.50
9
6264600B20
ref: 9
62626-05D00
SPACER,REAR CUSHION LEVER
€ 18.50
10
6222614520
ref: 10
SEAL,DUST RR SHOCK ABSORBER
€ 12.50
11
6268414520
ref: 11
COLLAR
€ 7.00
12
0821112281
ref: 12
WASHER
€ 2.00
13
0821114322
ref: 13
WASHER
€ 2.50
14
6268301B00
ref: 14
62683-27C00
DUST SEAL,RR C
€ 7.00
15
6265800B20
ref: 15
BOLT,RR CUSHION LEVER FR
€ 8.50
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17
6262101B00
ref: 17
SHAFT,RR CUSHION LEVER
€ 12.50
18
0915914017
ref: 18
08319-3114A
NUT
€ 9.00
19
6260001890
ref: 19
LEVER SET,REAR CUSHION
€ 139.50
20
0926320063
ref: 20
BEARING(20X27X20)
€ 34.00
21
6262200B20
ref: 21
BOLT,REAR CUSHION ROD
€ 16.50
22
0821114322
ref: 22
WASHER
€ 2.50
23
0915914017
ref: 23
08319-3114A
NUT
€ 9.00
