REAR WHEEL (MODEL H)
RM250 1986 (G) USA (E03)

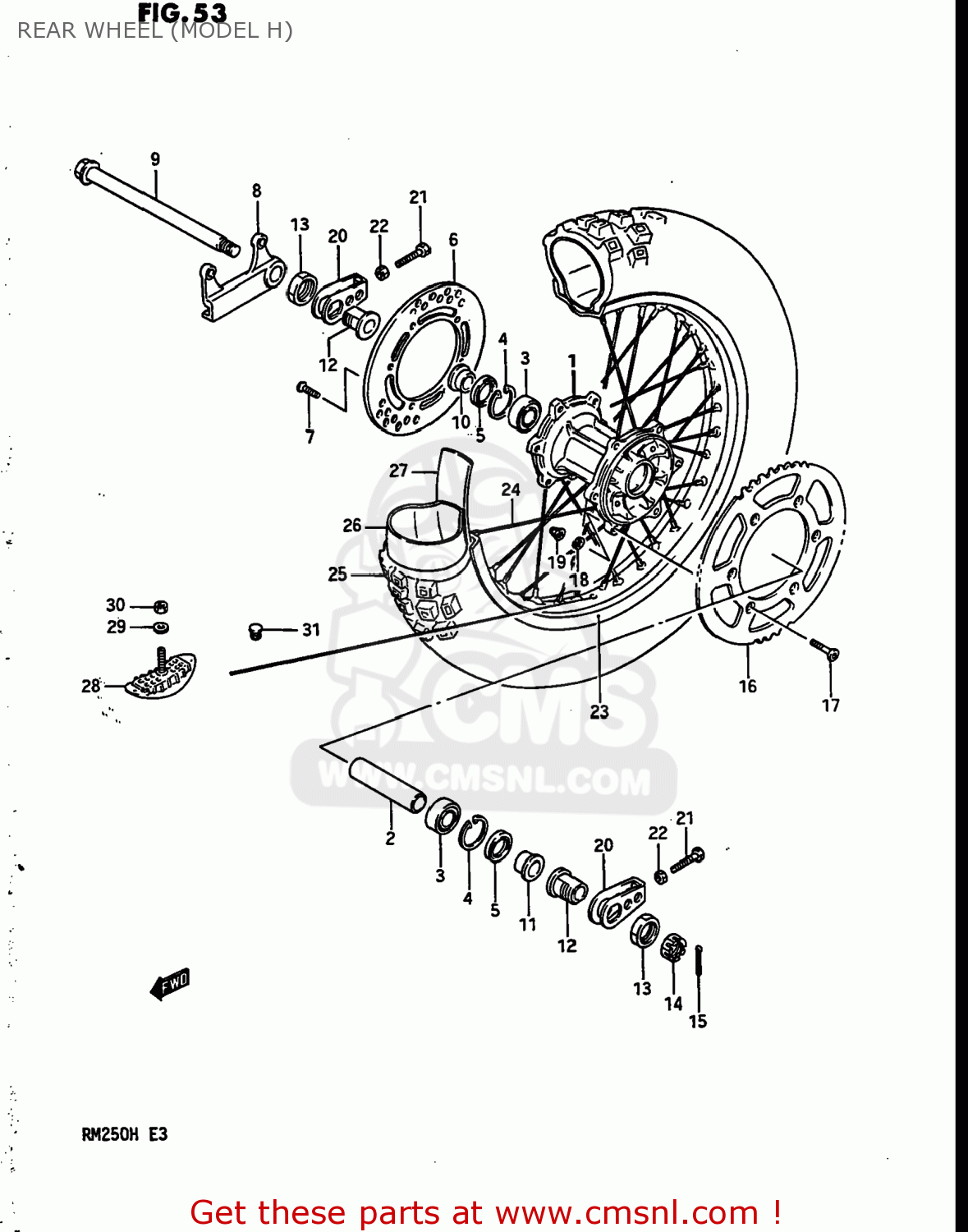

Rear wheel (model h) diagram RM250 1986 (G) USA (E03)
REAR WHEEL (MODEL H) RM250 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411000B22
ref: 1
64110-27C01
HUB,REAR WHEEL
€ 265.00
2
6473200B22
ref: 2
64731-00B22
SPACER,BEARING
€ 18.00
3
0812362047
ref: 3
BEARING
€ 17.00
4
0833141478
ref: 4
08331-41479
CIRCLIP,14MM
€ 2.50
5
0928426003
ref: 5
09283-26019
OIL SEAL
€ 9.50
6
6921100B20
ref: 6
DISC,REAR BRAKE
€ 237.00
7
0212206167
ref: 7
SCREW
€ 2.00
8
6972100B20
ref: 8
BRACKET,REAR CALIPER
€ 61.00
9
6471100B20
ref: 9
AXLE,REAR
€ 61.50
10
6474100B20
ref: 10
64741-00B21
SPACER,REAR AXLE
€ 12.50
11
6475100B20
ref: 11
SPACER COMP,REAR AXLE
€ 13.50
12
6478100B20
ref: 12
SPACER,CHAIN ADJUSTER
€ 12.00
13
0914027001
ref: 13
NUT
€ 7.00
14
0831441188
ref: 14
08314-40187
NUT 18MM
€ 6.00
15
0411140308
ref: 15
04111-4030A
PIN,COTTER
€ 1.50
16-1
6451140271
ref: 16-1
64511-36E00
SPROCKET,REAR
€ 99.00
16-2
6451140280
ref: 16-2
64511-28E00
SPROCKET,REAR
€ 99.00
16-3
6451140261
ref: 16-3
SPROCKET,RR(NT:51 AL)
€ 87.50
16-4
6451100B00
ref: 16-4
64511-00B01
SPROCKET,REAR
€ 99.00
16-5
6451100B10
ref: 16-5
64511-00B12
SPROCKET,REAR
€ 86.00
16-6
6451100B20
ref: 16-6
64511-00B21
SPROCKET,REAR
€ 66.00
17
0912008004
ref: 17
SCREW(8X33.5)
€ 3.00
18
0916408011
ref: 18
WASHER
€ 3.50
19
0831931087
ref: 19
NUT
€ 2.50
20
6141000B20
ref: 20
ADJUSTER, CHAIN
€ 12.00
21
0910408027
ref: 21
BOLT(8X43)
€ 9.00
22
0831012088
ref: 22
08310-00087
NUT
€ 2.00
23
6531100B20
ref: 23
65311-28C01
RIM,REAR WHEEL
€ 351.50
24
6532000B20
ref: 24
SPOKE SET,REAR WHEEL
€ 79.00
25
6510000B00
ref: 25
65100-00B10
TIRE
€ 0.00
26
6520040430
ref: 26
TUBE,INNER
€ 0.00
27
6526115010
ref: 27
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
28
6527014200
ref: 28
65270-28E00
STOPPER,BEAD
€ 38.00
29
0832211088
ref: 29
08322-01087
WASHER
€ 2.00
30
0831022088
ref: 30
08310-00087
NUT 8MM
€ 2.00
31
0925008013
ref: 31
CAP(OD:12)
€ 2.00
