ELECTRICAL (MODEL H)

RM250 1986 (G) USA (E03)

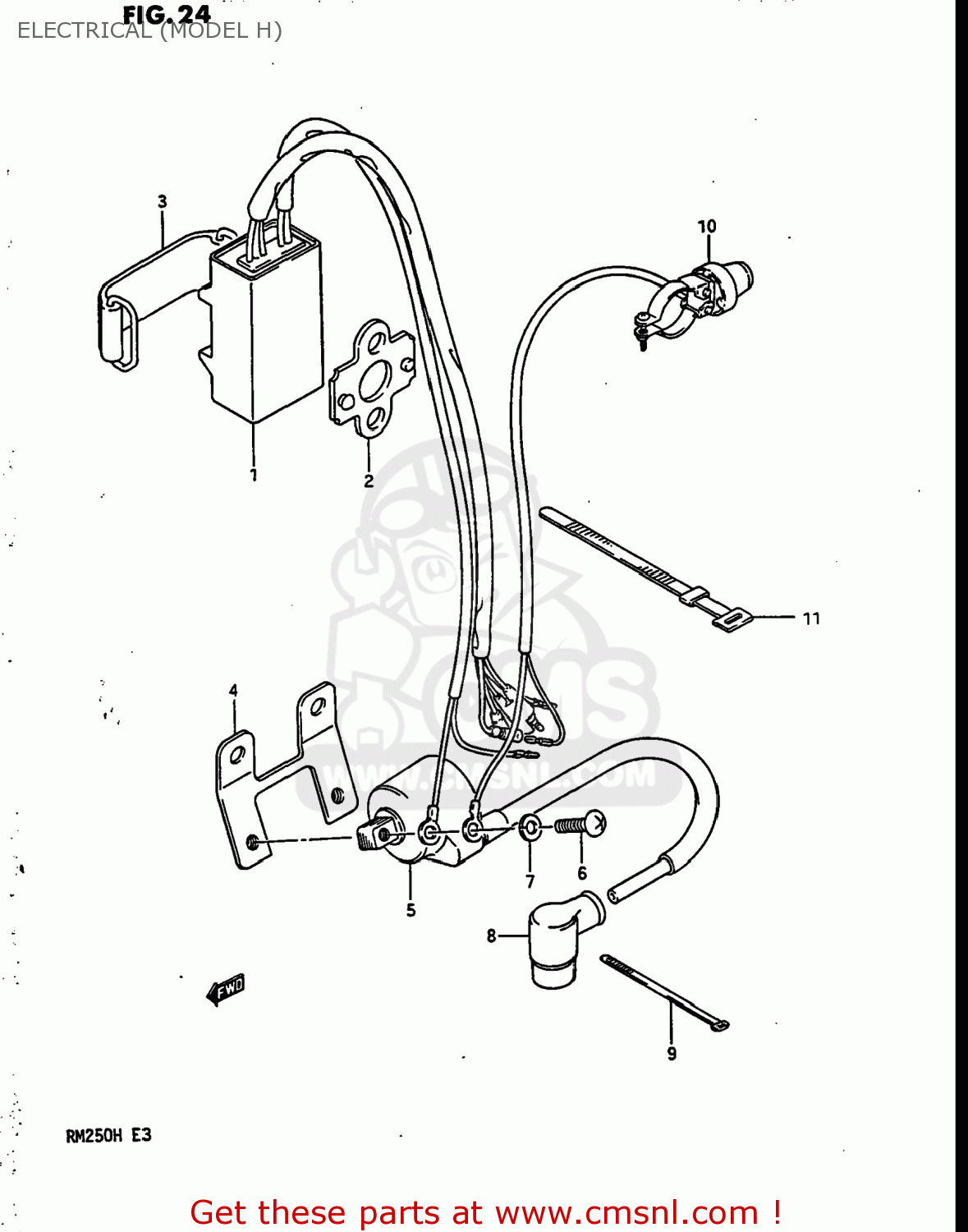

Electrical (model h) diagram RM250 1986 (G) USA (E03)

ELECTRICAL (MODEL H) RM250 1986 (G) USA (E03)

ELECTRICAL (MODEL H) RM250 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290000B30
ref: 1

UNIT,CDI

€ 466.00

2

3294114300
ref: 2

PROTECTOR,CDI UNIT

€ 4.00

3

3294214110
ref: 3
32942-14111

BAND

€ 8.00

4

3341601B01
ref: 4

BRACKET,IGNITION COIL

€ 6.50

5

3341001B20
ref: 5
33410-12C00

COIL ASSEMBLY,IGNITION

€ 123.00

6

0211206206
ref: 6
02112-0620A

SCREW

€ 2.00

7

0832121066
ref: 7
08321-0106A

WASHER,LOCK

€ 2.00

8

3351041111
ref: 8
33510-20A02

CAP,SPARK PLUG

€ 23.00

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10
37820-14X50

SWITCH ASSEMBLY

€ 24.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
