FRONT DAMPER (MODEL G)
RM250 1986 (G) USA (E03)

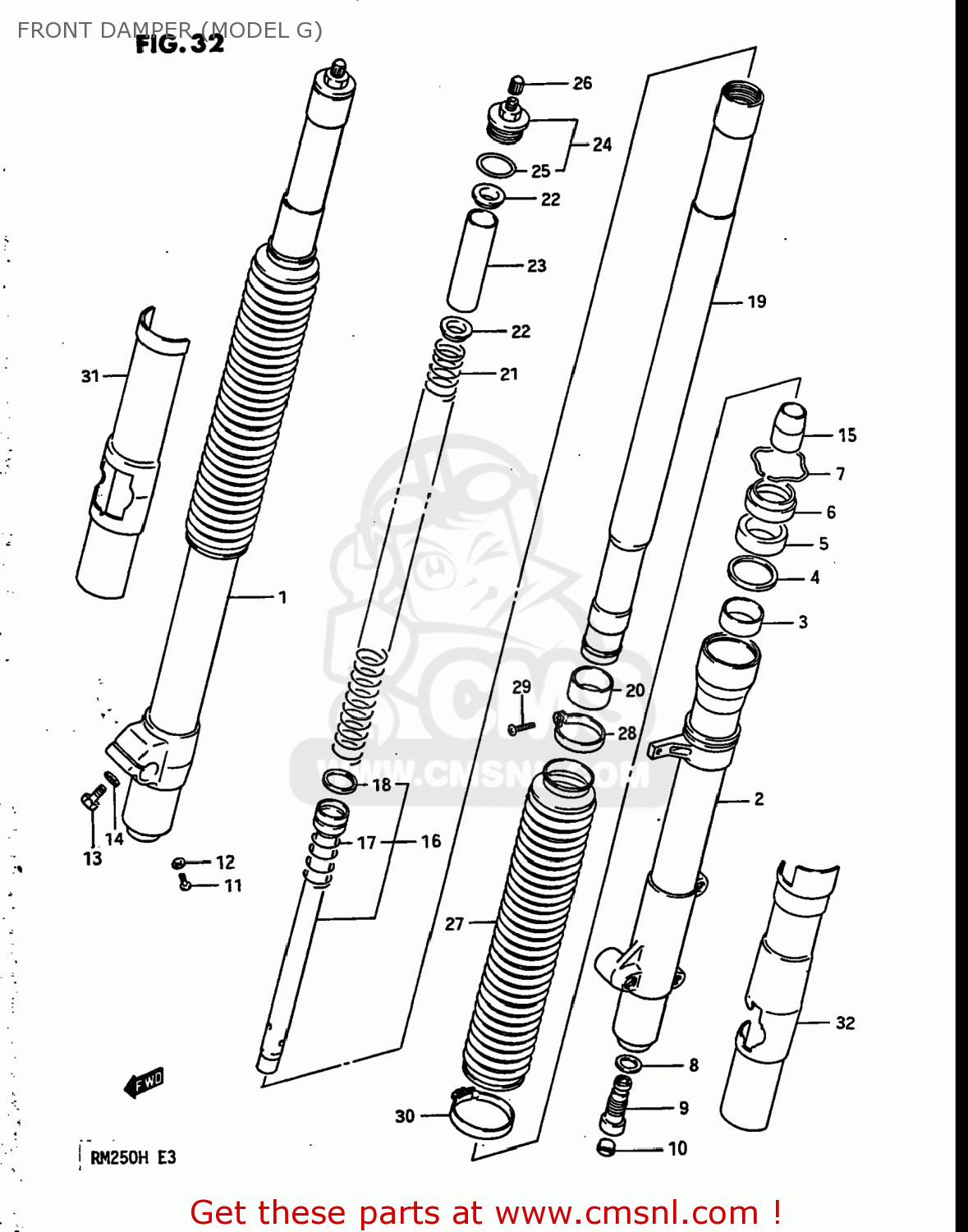

Front damper (model g) diagram RM250 1986 (G) USA (E03)
FRONT DAMPER (MODEL G) RM250 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110300B10
ref:
DAMPER ASSEMBLY
€ 0.00
5110400B10
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5113014500
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114014520
ref: 2
TUBE,OUTER,LEFT
€ 476.50
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115314330
ref: 5
SEAL,OIL
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
€ 4.50
8
5114814330
ref: 8
GASKET,FORK CYLINDER
€ 2.50
9
5177014500
ref: 9
VALVE,DF
€ 39.50
10
5118914500
ref: 10
CAP,FRONT FORK DF
€ 5.00
11
0211204068
ref: 11
02112-0406B
SCREW 4X6
€ 2.00
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708307
ref: 13
01500-08307
BOLT
€ 2.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
5119514330
ref: 15
PIECE,FRONT FORK OIL LOCK
€ 10.50
16
5114600B00
ref: 16
CYLINDER,FRONT FORK
€ 0.00
17
5117714330
ref: 17
SPRING,REBOUND
€ 5.50
18
5119614330
ref: 18
RING,FRONT FORK PISTON
€ 6.50
19
5111014520
ref: 19
TUBE,FORK,INNER
€ 248.00
20
5112114200
ref: 20
PISTON
€ 14.00
21
5117100B10
ref: 21
SPRING,FRONT FORK
€ 0.00
22
5117214500
ref: 22
51172-14200
GUIDE,FRONT FORK SPRING
€ 5.00
23
5117614620
ref: 23
SPACER,FRONT FORK SPRING
€ 15.50
24
5135114500
ref: 24
CAP,FORK INNER TUBE
€ 31.50
25
5111714200
ref: 25
O RING
€ 2.00
26
5129420400
ref: 26
CAP
€ 3.50
27
5157100B0019F
ref: 27
51571-32E00-38K
BOOT
€ 45.50
28
5157500B00
ref: 28
51575-14500
BAND,FRONT FORK COVER
€ 7.00
29
0211204108
ref: 29
02112-04107
SCREW 4X10
€ 2.00
30
5157600B00
ref: 30
BAND,BOOT LWR
€ 6.50
31
5120114500163
ref: 31
PROTECTOR,RIGHT
€ 0.00
32
5120214501163
ref: 32
PROTECTOR,LEFT
€ 25.50
32
5120214501163
ref: 32
PROTECTOR,LEFT
€ 25.50
