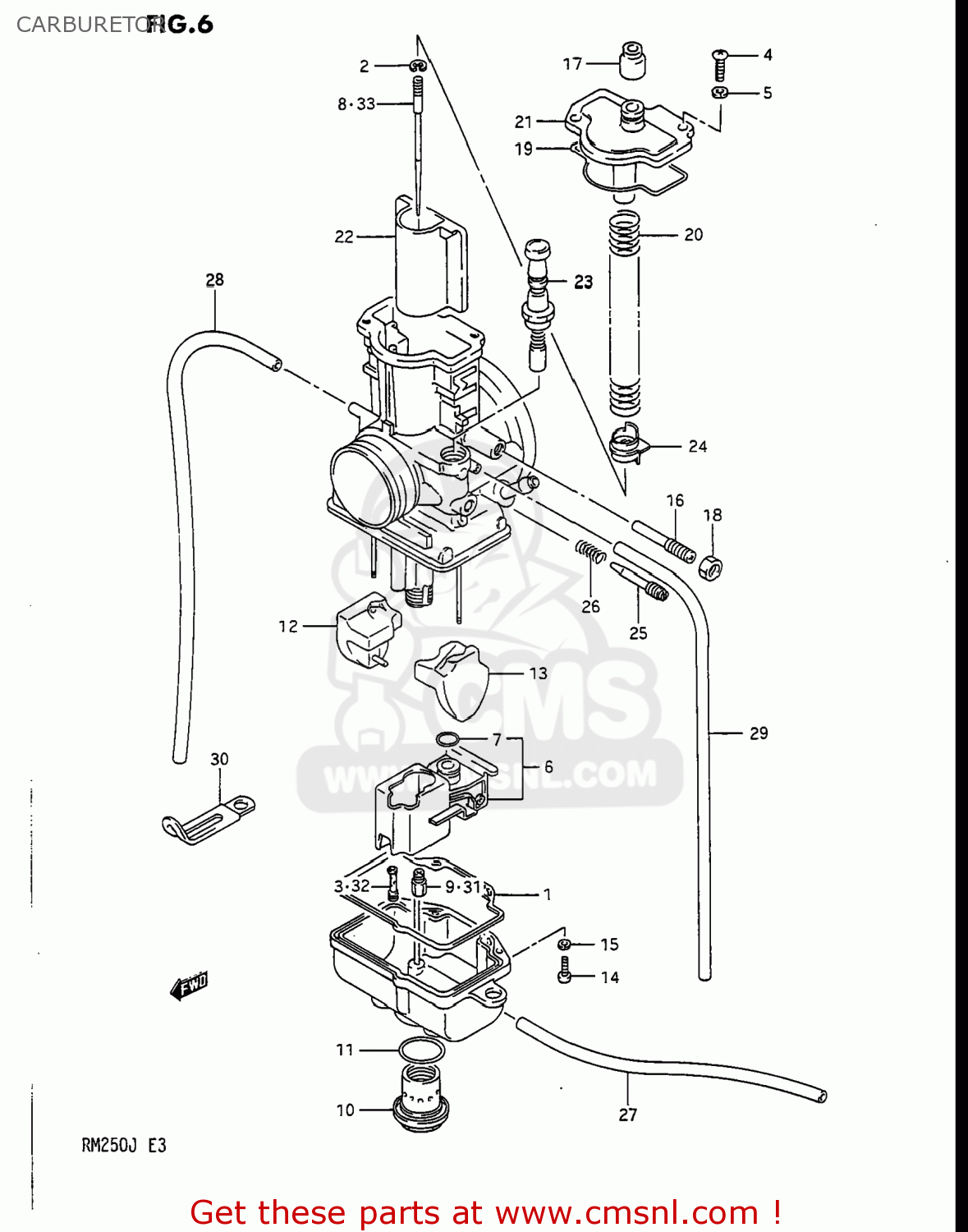

CARBURETOR

ref

part #

description

quantity

1320026C00
ref:

CARBURETOR ASSEMBLY

€ 485.50

1

1369626C00
ref: 1

O RING,FLOAT CHAMBER

€ 12.50

2

1339431210
ref: 2

CLIP,NEEDLE

€ 3.50

3

0949220008
ref: 3

JET,PILOT 20

€ 10.00

4

0211204126
ref: 4
02112-0412A

SCREW

€ 1.50

5

0832121046
ref: 5
08321-0104A

LOCK WASHER

€ 2.00

6

1337026C00
ref: 6

VALVE ASSY,NEEDLE

€ 41.00

7

1337444080
ref: 7
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

8

1338326C00
ref: 8

NEEDLE JET

€ 14.50

9

0949174003
ref: 9

JET,MAIN(370)

€ 8.50

10

1324726C00
ref: 10

CAP,DRAIN

€ 12.50

11

1324941310
ref: 11

O RING,DRAIN PLUG

€ 5.00

12

1325201B20
ref: 12

FLOAT,R

€ 22.50

13

1325201B21
ref: 13

FLOAT,L

€ 21.50

14

0211203086
ref: 14
02112-0308A

SCREW

€ 1.50

15

0832121036
ref: 15
08321-2103B

LOCK WASHER

€ 1.50

16

1327926C00
ref: 16

ADJUSTER

€ 10.00

17

1368104010
ref: 17

CAP

€ 3.00

18

1360747070
ref: 18

NUT

€ 4.00

19

1325126C00
ref: 19

O RING,TOP CAP

€ 9.50

20

1357326C00
ref: 20

SPRING

€ 6.50

21

1326126C00
ref: 21

CAP,TOP

€ 27.00

22

1355126C00
ref: 22

VALVE,PISTON(CA:3.5)

€ 117.50

23

1341126C00
ref: 23

PLUNGER ASSY

€ 41.00

24

1342426C00
ref: 24

RING

€ 7.50

25

1326709400
ref: 25

SCREW,AIR

€ 5.00

26

1326835010
ref: 26

SPRING

€ 3.00

27

0935130503320
ref: 27
09351-30503-600

HOSE

€ 6.50

28

0935135653440
ref: 28
09351-35653-600

HOSE

€ 5.50

29

0935135653440
ref: 29
09351-35653-600

HOSE

€ 5.50

30

0940406402
ref: 30
09404-06432

CLAMP

€ 2.50

31-1

0949166002
ref: 31-1

JET,MAIN(330)

€ 10.50

31-2

0949168002
ref: 31-2

JET,MAIN(340)

€ 8.50

31-3

0949170011
ref: 31-3

JET,MAIN(350)

€ 8.50

31-4

0949172011
ref: 31-4

JET,MAIN(360)

€ 8.50

31-5

0949176003
ref: 31-5

JET,MAIN(380)

€ 8.50

31-6

0949178005
ref: 31-6

JET,MAIN(390)

€ 8.50

31-7

0949180010
ref: 31-7

JET,MAIN(400)

€ 8.50

31-8

0949182007
ref: 31-8

JET,MAIN(410)

€ 11.00

32-1

0949215007
ref: 32-1

JET,PILOT(15)

€ 8.50

32-2

0949217006
ref: 32-2

JET,PILOT(17.5)

€ 7.50

32-3

0949225005
ref: 32-3

JET,PILOT(25)

€ 6.50

32-4

0949230006
ref: 32-4

JET,PILOT(30)

€ 8.50

33-1

1338326C15
ref: 33-1

NEEDLE JET (6EJ12-53)

€ 10.00

33-2

1338326C10
ref: 33-2

NEEDLE JET (6EJ12-54)

€ 12.50

33-3

1338326C20
ref: 33-3

NEEDLE JET (6EJ12-56)

€ 10.00

33-4

1338326C25
ref: 33-4

NEEDLE JET (6EJ12-57)

€ 12.50

all assemblies
