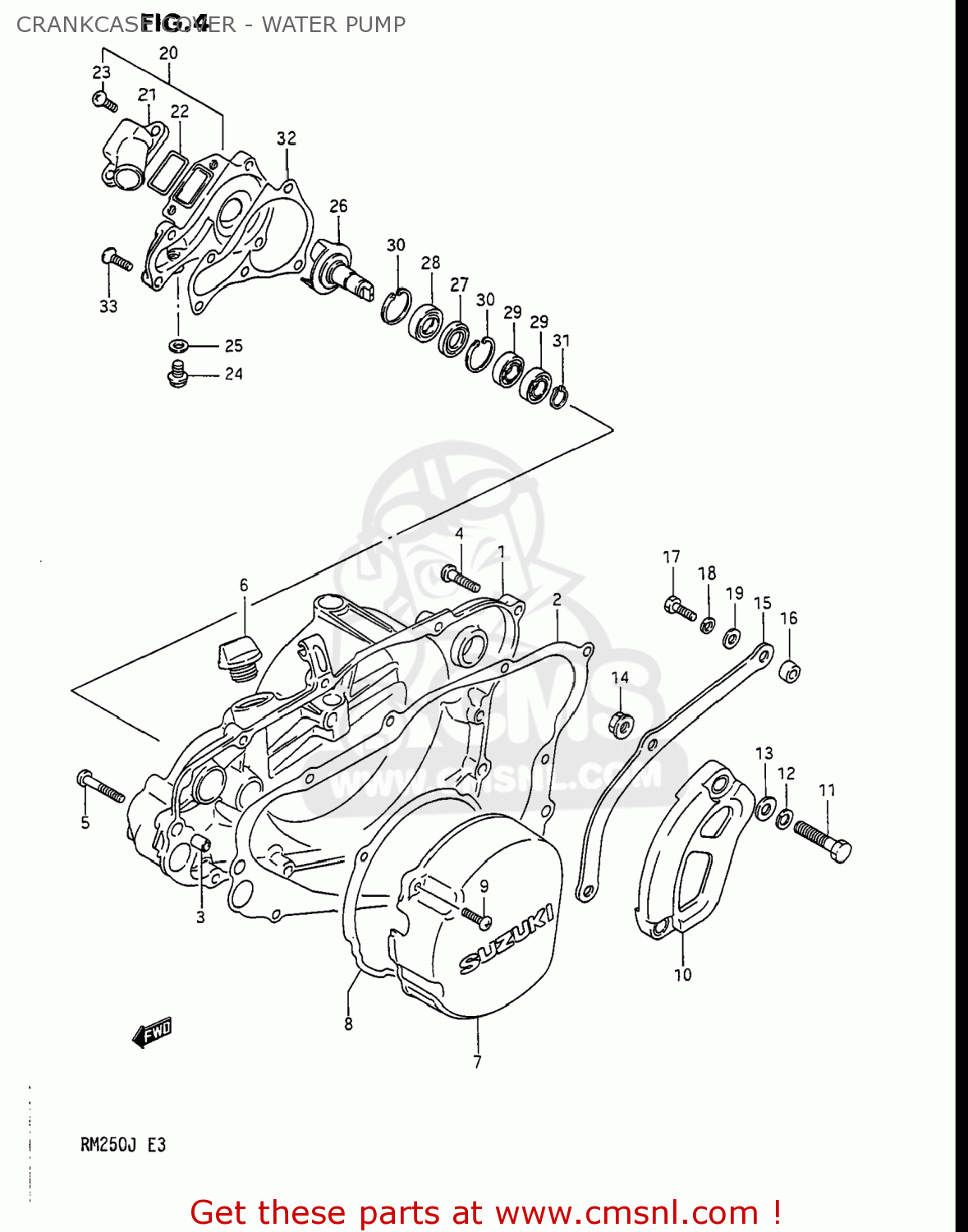

CRANKCASE COVER - WATER PUMP - RM250 1988 (J) USA (E03)

ref

part #

description

quantity

1

1134126C00
ref: 1

COVER,CLUTCH

€ 208.00

2

1148200B20
ref: 2
11482-00B20-H17

GASKET,CLUTCH COVER

€ 28.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206258
ref: 4
02112-06257

SCREW

€ 2.00

5

0211206357
ref: 5

SCREW

€ 2.50

6

0920020810
ref: 6

PLUG SET

€ 8.00

7

1135100B20
ref: 7

COVER,MAGNETO

€ 140.00

8

1148300B20
ref: 8
11483-00B20-H17

GASKET,MAGNETO COVER (MCA)

€ 7.50

9

0211205168
ref: 9
02112-05167

SCREW

€ 2.50

10

1136000B00
ref: 10

COVER,SPROCKET

€ 19.50

11

0110708307
ref: 11
01500-08307

BOLT

€ 2.50

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

0832211088
ref: 13
08322-01087

WASHER

€ 2.00

14

0831616088
ref: 14
08316-10087

NUT

€ 2.50

15-1

2764100B10
ref: 15-1

PLATE,FRONT CHAIN GUIDE

€ 8.50

15-2

2764100B01
ref: 15-2

PLATE,FR CHAIN GUIDE

€ 11.50

15-3

2764100B20
ref: 15-3

PLATE,FRONT CHAIN GUIDE

€ 10.00

16

0918006141
ref: 16
09180-06141-XC0

SPACER (6.5X12X8)

€ 4.00

17

0110706205
ref: 17
01500-0620A

BOLT

€ 2.00

18

0832121064
ref: 18
08321-0106A

WASHER,LOCK

€ 2.00

19

0832221064
ref: 19
08322-0106B

WASHER

€ 2.00

20

1741000B20
ref: 20

CASE ASSEMBLY,WATER PUMP

€ 107.00

21

1742100B20
ref: 21

CONNECTOR,WATER INLET

€ 32.50

22

1741414300
ref: 22

O RING,WATER PUMP CONNECTOR

€ 3.00

23

0211206167
ref: 23

SCREW

€ 2.50

24

1741520920
ref: 24

BOLT,DRAIN

€ 5.00

25

0916808008
ref: 25
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

26

1749126C00
ref: 26

IMPELLER,WATER PUMP

€ 41.50

27

0928212006
ref: 27

SEAL,OIL(12X24X3.6)

€ 7.00

28

0928912004
ref: 28

SEAL,OIL(12X24X6.4)

€ 9.00

29

0926210004
ref: 29

BEARING(10X22X6)

€ 20.50

30

0833141246
ref: 30
08331-41249

CIRCLIP

€ 2.50

31

0833131106
ref: 31
08331-3110A

CIRCLIP,10MM

€ 2.00

32

1743100B30
ref: 32
17431-00B30-H17

GASKET,WATER PUMP CASE (MCA)

€ 8.50

33

0212206208
ref: 33
02122-0620A

SCREW

€ 2.00
