MAGNETO

RM250 1988 (J) USA (E03)

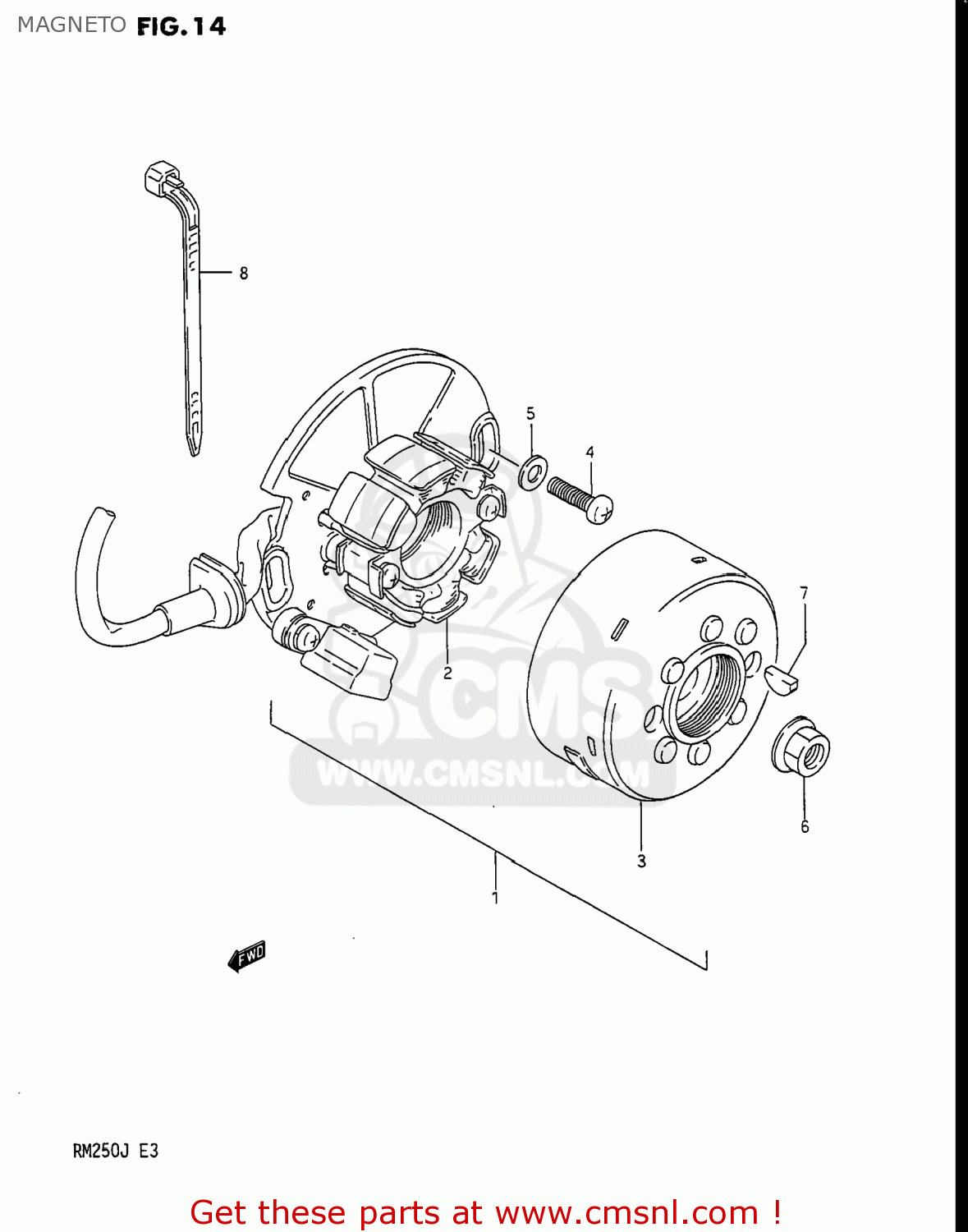

Magneto diagram RM250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210000B30
ref: 1
32100-00B31

MAGNETO ASSEMBLY

€ 599.50

3210100B30
ref: 2
32101-00B31

STATOR ASSEMBLY

€ 380.00

3210200B30
ref: 3

ROTOR

€ 309.50

0211206208
ref: 4
02112-06207

SCREW

€ 2.00

0832221067
ref: 5
08322-01067

WASHER

€ 2.00

0831616108
ref: 6
08316-10107

NUT

€ 2.00

0834131049
ref: 7
09420-04008

KEY 4MM

€ 3.50

8-1

0940714403
ref: 8-1

CLAMP(L:125)

€ 2.50

8-2

0940718402
ref: 8-2

CLAMP(L:165)

€ 2.50

8-3

0940725401
ref: 8-3

CLAMP(L:235)

€ 4.00
