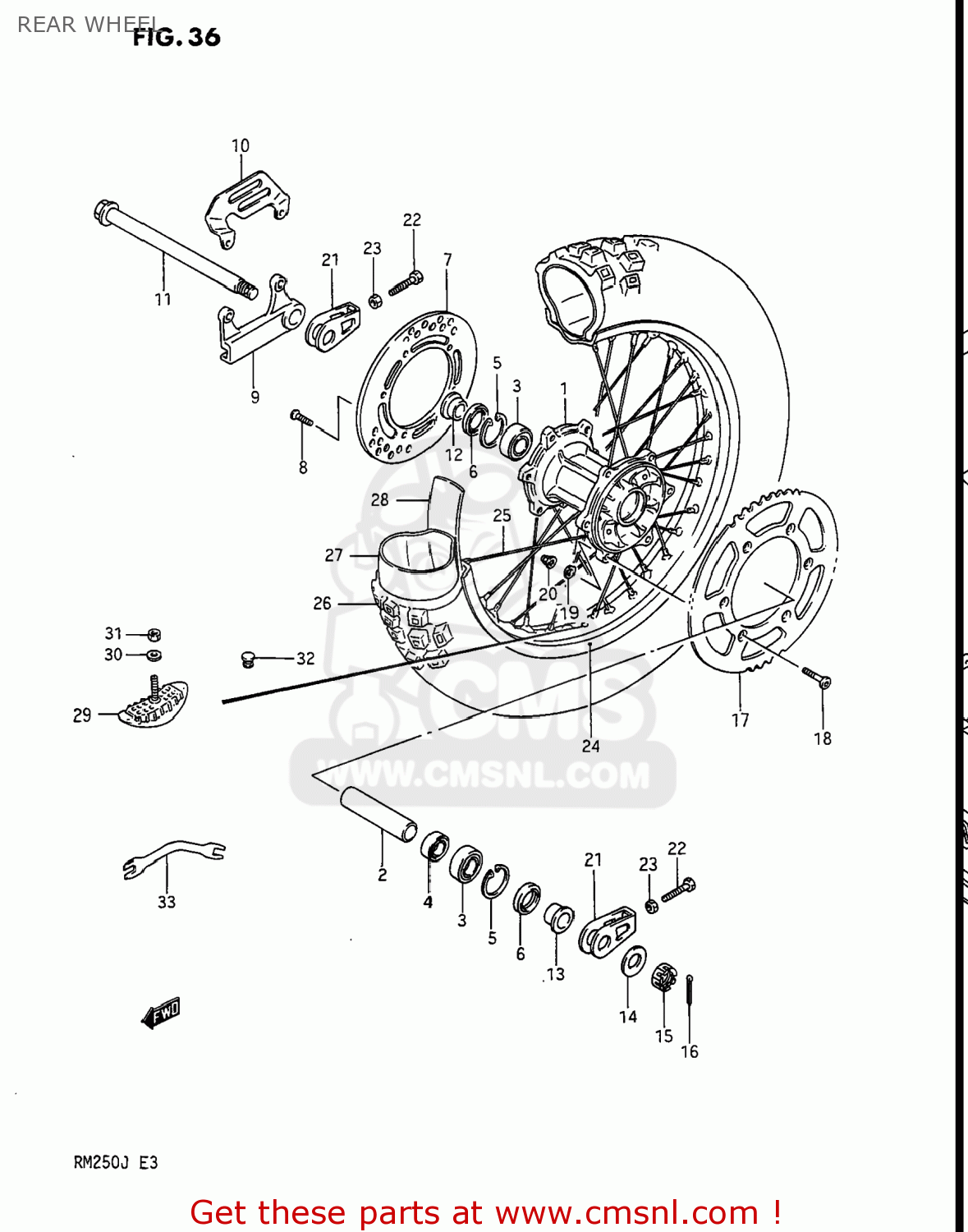

REAR WHEEL

ref

part #

description

quantity

1

6411000B30
ref: 1
64110-28C01

HUB,REAR WHEEL

€ 352.00

2

6473100B30
ref: 2

SPACER,RR HUB BEARING

€ 15.50

3

0812362047
ref: 3

BEARING

€ 17.00

4

0812360047
ref: 4
08133-60047

BALL BEARING

€ 21.00

5

0833141478
ref: 5
08331-41479

CIRCLIP,14MM

€ 2.50

6

0928426003
ref: 6
09283-26019

OIL SEAL

€ 9.50

7

6921100B20
ref: 7

DISC,REAR BRAKE

€ 237.00

8

0212206167
ref: 8

SCREW

€ 2.00

9

6972100B30
ref: 9

BRACKET,REAR CALIPER

€ 99.00

10

6972526C01
ref: 10

GUARD,REAR CALIPER

€ 14.00

11

6471101B30
ref: 11

AXLE,RR

€ 46.50

12

6474100B21
ref: 12

SPACER,RR AXLE,R

€ 12.50

13

6475100B30
ref: 13

SPACER,REAR AXLE,LEFT

€ 15.50

14

0916019010
ref: 14
09160-19022

WASHER (19X32X3.2)

€ 5.00

15

0831441188
ref: 15
08314-40187

NUT 18MM

€ 6.00

16

0411140308
ref: 16
04111-4030A

PIN,COTTER

€ 1.50

17-1

6451140271
ref: 17-1
64511-36E00

SPROCKET,REAR

€ 99.00

17-2

6451140280
ref: 17-2
64511-28E00

SPROCKET,REAR

€ 99.00

17-3

6451140261
ref: 17-3

SPROCKET,RR(NT:51 AL)

€ 87.50

17-4

6451100B01
ref: 17-4

SPROCKET,RR(NT:49)

€ 99.00

17-5

6451100B11
ref: 17-5
64511-00B12

SPROCKET,REAR

€ 86.00

17-6

6451100B21
ref: 17-6

SPROCKET,RR(NT:51)

€ 66.00

18

0912008004
ref: 18

SCREW(8X33.5)

€ 3.00

19

0916408011
ref: 19

WASHER

€ 3.50

20

0831931087
ref: 20

NUT

€ 2.50

21

6141000B30
ref: 21

ADJUSTER COMP,CHAIN

€ 21.00

22

0910008271
ref: 22

BOLT L:50

€ 0.00

23

0831012088
ref: 23
08310-00087

NUT

€ 2.00

24

6531100B20
ref: 24
65311-28C01

RIM,REAR WHEEL

€ 351.50

25

6532026C00
ref: 25

SPOKE ASSY,RR WHEEL

€ 94.00

26

6510000B10
ref: 26

TIRE,REAR

€ 0.00

27

6520040430
ref: 27

TUBE,INNER

€ 0.00

28

6526115010
ref: 28
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

29

6527014200
ref: 29
65270-28E00

STOPPER,BEAD

€ 38.00

30

0832211088
ref: 30
08322-01087

WASHER

€ 2.00

31

0831022088
ref: 31
08310-00087

NUT 8MM

€ 2.00

32

0925008013
ref: 32

CAP(OD:12)

€ 2.00

33

0981300039
ref: 33

SPANNER,OPEN

€ 8.00
