ELECTRICAL

RM250 1988 (J) USA (E03)

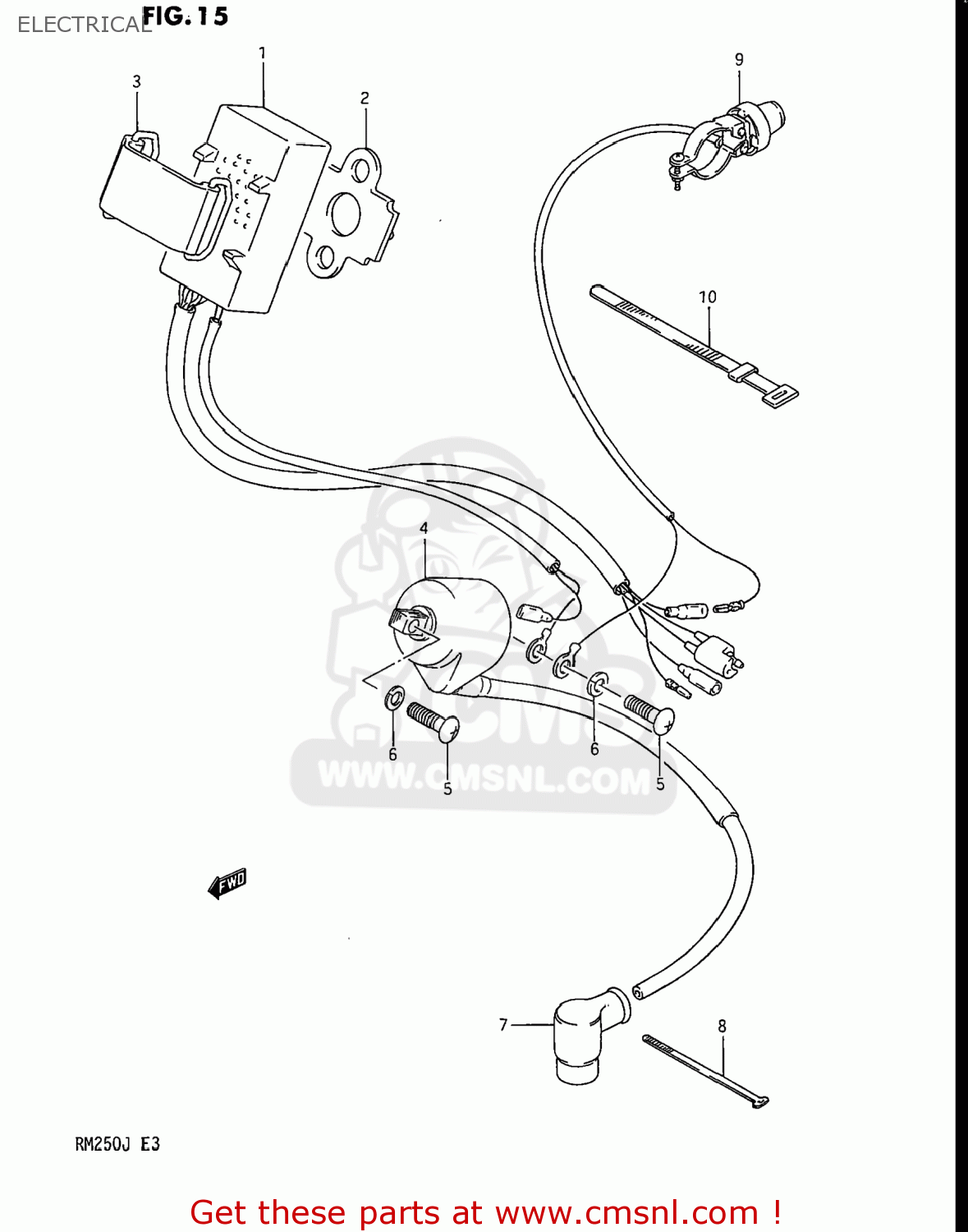

Electrical diagram RM250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3290000B30
ref: 1

UNIT,CDI

€ 466.00

3294114300
ref: 2

PROTECTOR,CDI UNIT

€ 4.00

3294214110
ref: 3
32942-14111

BAND

€ 8.00

3341026C00
ref: 4
33410-12C00

COIL ASSEMBLY,IGNITION

€ 138.00

0211206206
ref: 5
02112-0620A

SCREW

€ 2.00

0832121066
ref: 6
08321-0106A

WASHER,LOCK

€ 2.00

3351041111
ref: 7
33510-20A02

CAP,SPARK PLUG

€ 23.00

0940709402
ref: 8

CLAMP

€ 3.00

3782000B00
ref: 9
37820-14X50

SWITCH ASSEMBLY

€ 24.50

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

all assemblies
