STAND - FOOTREST
RM250 1988 (J) USA (E03)

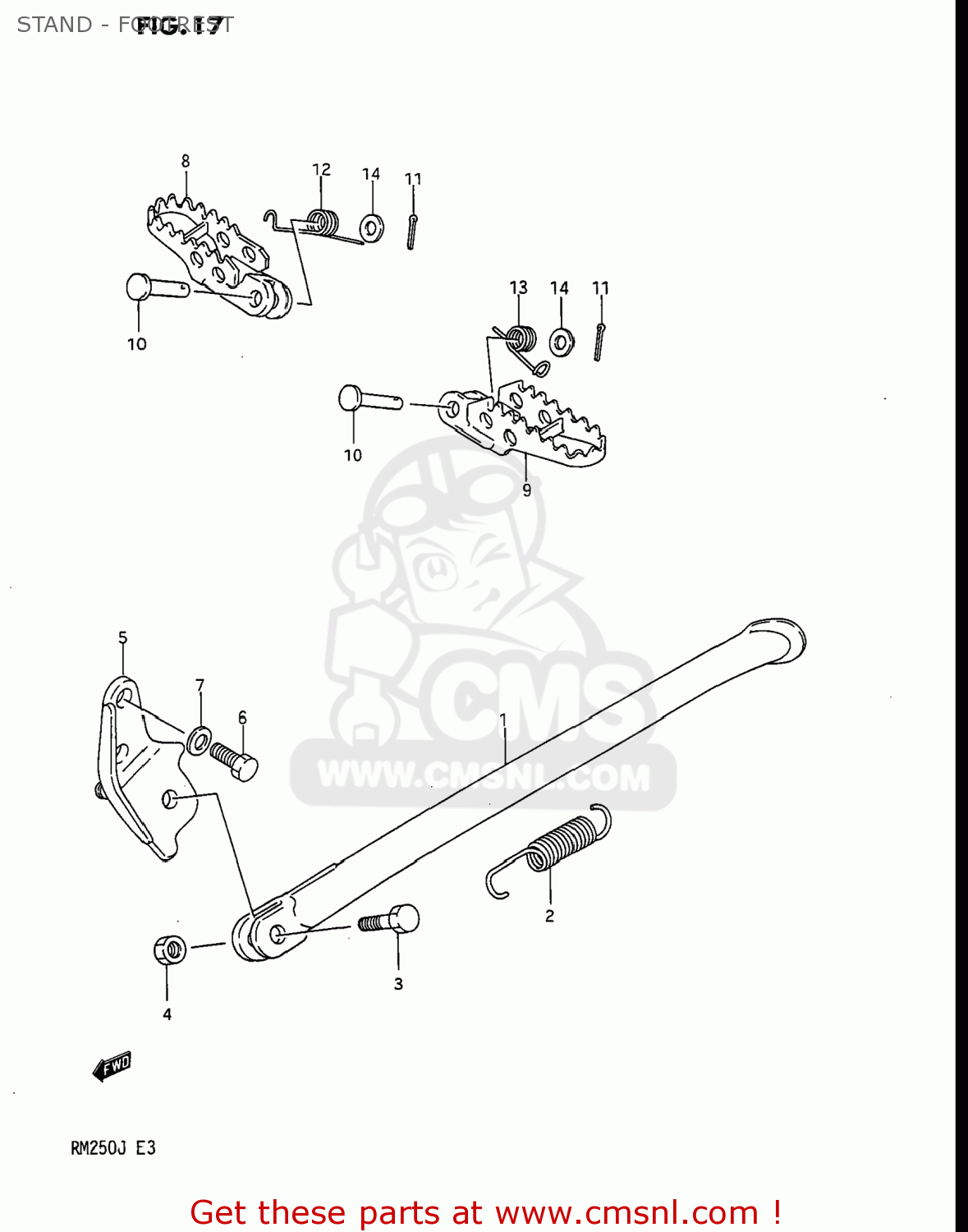

Stand - footrest diagram RM250 1988 (J) USA (E03)
STAND - FOOTREST RM250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231026C0019F
ref: 1
42310-26C00-019
STAND,SIDE
€ 195.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022107
ref: 4
08310-00107
NUT
€ 2.50
5
4233026C0019F
ref: 5
42330-26C00-019
BRACKET,SIDE STAND
€ 92.00
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121107
ref: 7
08321-01107
WASHER,LOCK,10
€ 2.00
8
4355026C0019F
ref: 8
43550-26C02-19F
FOOTREST,FRONT,RIGHT
€ 46.50
9
4356026C0019F
ref: 9
43560-26C02-19F
FOOTREST,FRONT,LEFT
€ 46.50
10
0920008064
ref: 10
PIN
€ 6.50
11
0411125208
ref: 11
04111-2520A
PIN 25X20
€ 2.00
12
0944814014
ref: 12
09448-14014-XC0
SPRING
€ 3.00
13
0944814018
ref: 13
09448-14018-XC0
SPRING
€ 4.00
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
