CRANKCASE (MODEL P)
RM250 1994 (R) USA (E03)

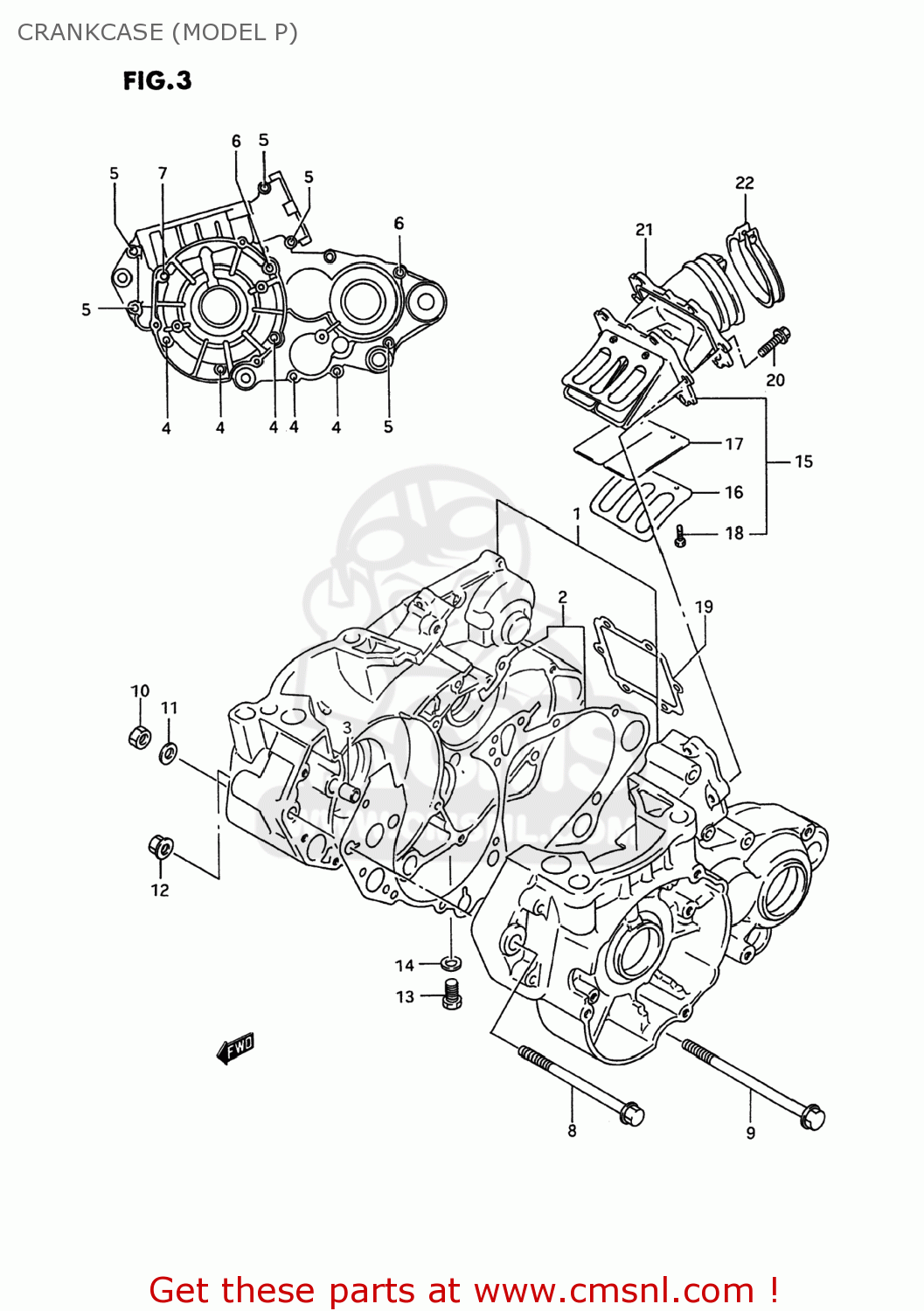

Crankcase (model p) diagram RM250 1994 (R) USA (E03)
CRANKCASE (MODEL P) RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130128813
ref: 1
11301-28814
CRANKCASE SET
€ 838.00
2
1148128C00
ref: 2
GASKET,CRANKCASE (NAS)
€ 15.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706407
ref: 4
BOLT
€ 2.50
5
0154706507
ref: 5
BOLT
€ 2.50
6
0154706557
ref: 6
BOLT
€ 2.50
7
0154706607
ref: 7
BOLT
€ 2.50
8
0910308296
ref: 8
BOLT(8X102)
€ 5.50
9
0910308317
ref: 9
BOLT 8X140
€ 5.50
10
0915908034
ref: 10
NUT
€ 2.00
11
0916408020
ref: 11
WASHER
€ 2.50
12
0915908034
ref: 12
NUT
€ 2.00
13
0110708167
ref: 13
01500-0816B
BOLT,8X16
€ 2.00
14
0916808026
ref: 14
09168-08016
GASKET (NAS)
€ 1.00
15
1315028E00
ref: 15
13150-28E01
VALVE ASSEMBLY,REED
€ 88.50
16
1315228E00
ref: 16
STOPPER,REED VALVE
€ 4.00
17
1315328E00
ref: 17
VALVE,REED
€ 14.50
18
0211233068
ref: 18
02112-3306A
SCREW
€ 2.00
19
1315601C10
ref: 19
GASKET,REED VALVE (NAS)
€ 3.00
20
0154706207
ref: 20
BOLT
€ 2.50
21
1311028E00
ref: 21
PIPE,INTAKE
€ 62.50
22
0940256208
ref: 22
09402-56901
CLAMP
€ 3.50
