KICK STARTER
RM250 1994 (R) USA (E03)

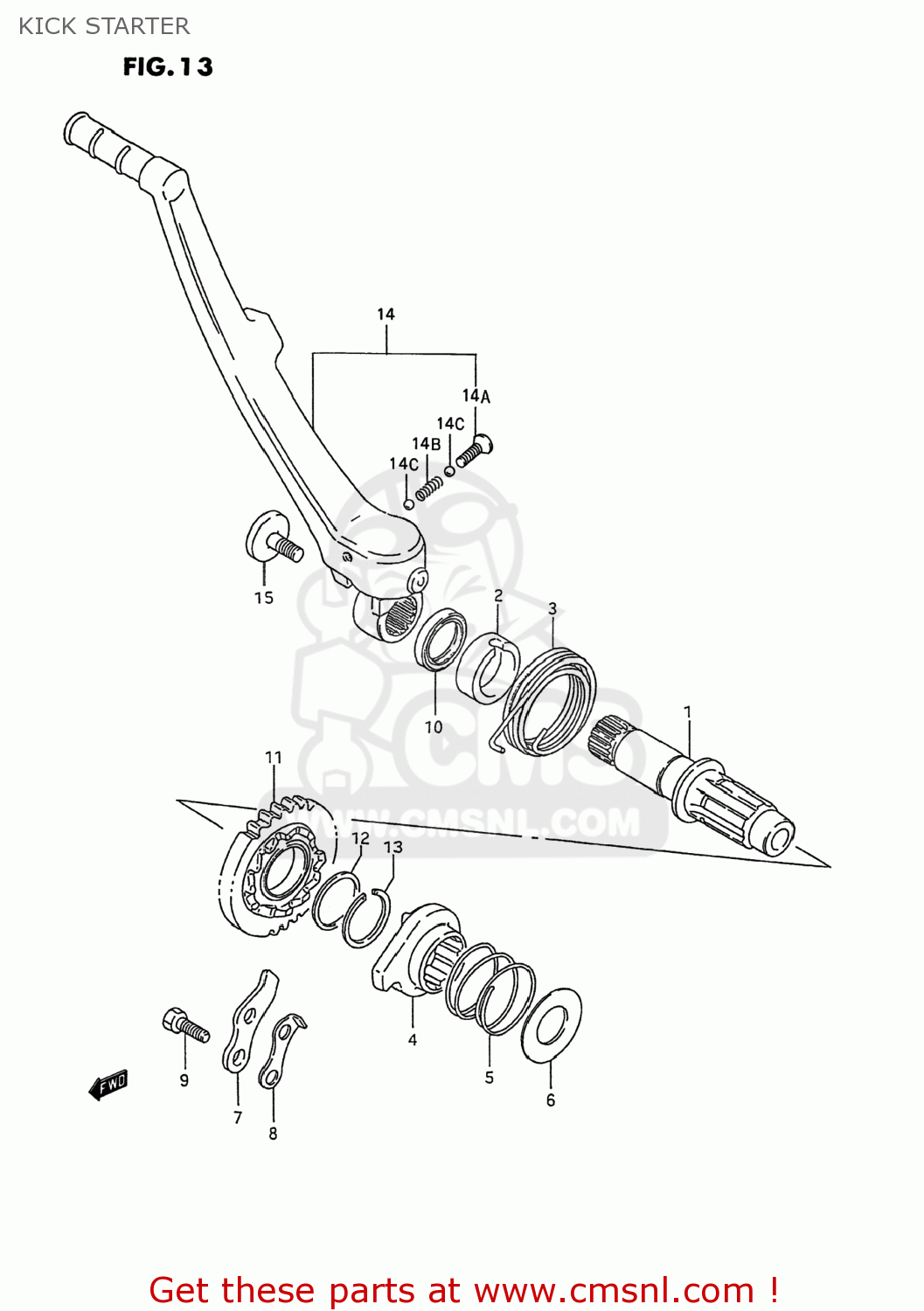

Kick starter diagram RM250 1994 (R) USA (E03)
KICK STARTER RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621105D02
ref: 1
26211-05D03
SHAFT,KICK STARTER
€ 69.00
2
2622101B00
ref: 2
26221-01B01
GUIDE,KICK STARTER SHAFT
€ 3.00
2
2622101B00
ref: 2
26221-01B01
GUIDE,KICK STARTER SHAFT
€ 3.00
3-1
0944848011
ref: 3-1
SPRING
€ 11.00
3-2
0944848012
ref: 3-2
SPRING
€ 15.50
4-1
2623122A10
ref: 4-1
STARTER,KICK
€ 47.50
4-2
2623128E20
ref: 4-2
26231-28E21
STARTER,KICK
€ 36.00
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821117341
ref: 6
WASHER
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
€ 3.00
8
2623340200
ref: 8
26233-40201
STOPPER,KICK STARTER
€ 2.50
9-1
0110706127
ref: 9-1
01500-06127
BOLT
€ 2.00
9-2
0150006123
ref: 9-2
01500-0612A
BOLT
€ 2.00
10
0928320031
ref: 10
SEAL,OIL(20X27X5)
€ 5.00
11-1
2624028C00
ref: 11-1
GEAR,KICK STARTER DRIVE(NT:30)
€ 58.00
11-1
2624028C00
ref: 11-1
GEAR,KICK STARTER DRIVE(NT:30)
€ 58.00
11-2
2624028E20
ref: 11-2
GEAR COMP,KICK STARTER
€ 68.50
12
0821122281
ref: 12
09181-22139
SHIM
€ 4.00
13
0938022006
ref: 13
CIRCLIP
€ 3.00
14A
0912706016
ref: 14A
SCREW(6X27.5)
€ 3.00
14B
0944005031
ref: 14B
SPRING
€ 1.50
14C
0611107004
ref: 14C
BALL
€ 1.50
14-1
2630028C22
ref: 14-1
26300-28E20
LEVER ASSEMBLY,KICK STARTER
€ 298.00
14-2
2630028E10
ref: 14-2
26300-28E20
LEVER ASSEMBLY,KICK STARTER
€ 298.00
15
0910608098
ref: 15
BOLT(8X14)
€ 6.50
