SHOCK ABSORBER (MODEL P)
RM250 1994 (R) USA (E03)

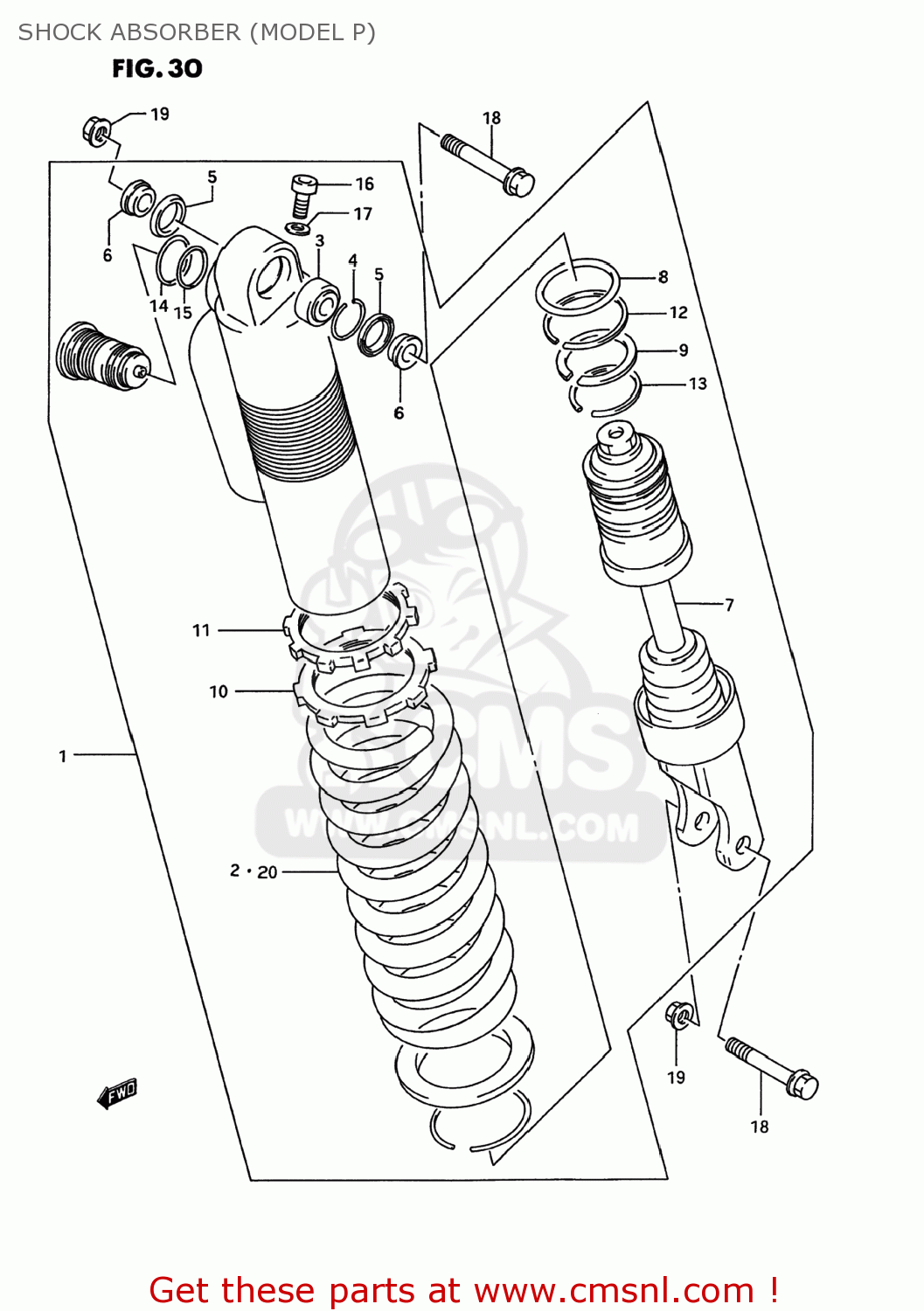

Shock absorber (model p) diagram RM250 1994 (R) USA (E03)
SHOCK ABSORBER (MODEL P) RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6210028E10163
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 1,286.50
2
6221128C70
ref: 2
62211-28C70-163
SPRING
€ 166.50
3
6217527C20
ref: 3
62175-43D00
BEARING,REAR SHOCK ABSORBER
€ 54.00
4
6227727C40
ref: 4
RING,STOPPER
€ 2.00
5
6222627C40
ref: 5
SEAL,DUST
€ 7.00
6
6268427C40
ref: 6
COLLAR
€ 12.50
7
6212028E00
ref: 7
ROD,PISTON
€ 466.50
8
6215343D00
ref: 8
O RING
€ 5.00
9
6229143D00
ref: 9
62290-28E00
STOPPER
€ 18.00
10
6219127C40
ref: 10
62190-28E00
GUIDE,SPRING
€ 51.00
11
6219427C40
ref: 11
NUT
€ 16.00
12
6227943D00
ref: 12
RING,STOPPER
€ 3.50
13
6229243D00
ref: 13
RING,STOPPER
€ 2.50
14
6213128E00
ref: 14
O RING
€ 3.50
15
5117443D00
ref: 15
O RING,CTR BOLT UPR
€ 3.00
16
6228143D00
ref: 16
62281-27C40
BOLT,REAR SHOCK ABSORBER
€ 4.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
€ 4.00
18
6231128C00
ref: 18
62311-28E00
BOLT,REAR SHOCK ABSORBER
€ 4.00
19
0915910058
ref: 19
09159-10115
NUT
€ 4.00
20-1
6221128C80
ref: 20-1
62211-28C80-163
SPRING,REAR (K=5.4)
€ 160.50
20-2
6221127C90
ref: 20-2
SPRING,REAR (K=5.0)
€ 214.00
