GEAR SHIFTING
RM250 1994 (R) USA (E03)

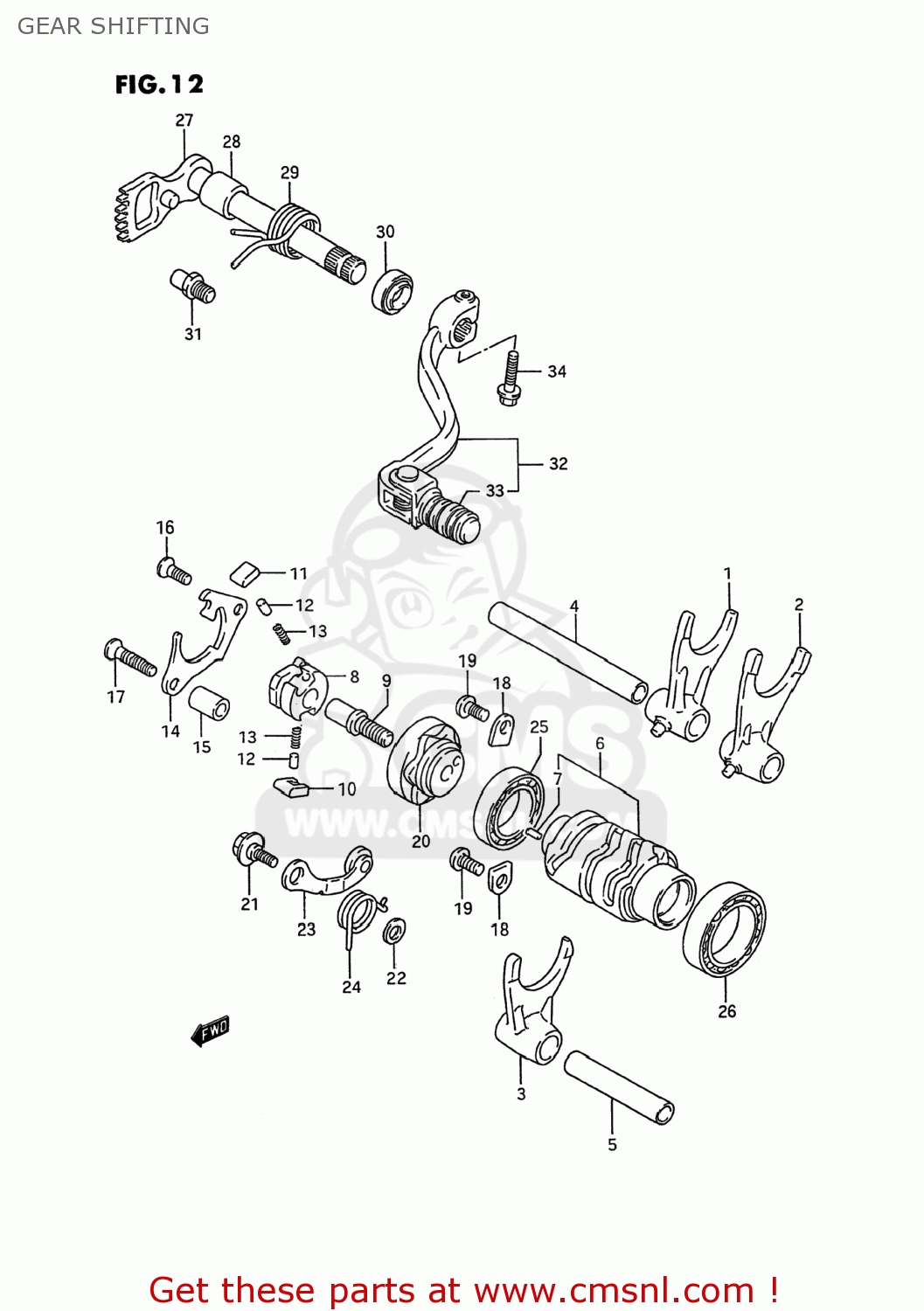

Gear shifting diagram RM250 1994 (R) USA (E03)
GEAR SHIFTING RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521128C01
ref: 1
FORK,GEAR SHIFT NO.1
€ 45.00
2
2522128C01
ref: 2
25221-28C02
FORK,GEAR SHIFT NO.2
€ 45.00
3
2523128C01
ref: 3
25231-28C02
FORK,GEAR SHIFT NO.3
€ 48.00
4
2541127C00
ref: 4
25411-37F20
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C00
ref: 5
25421-27C01
SHAFT,GEAR SHIFT FORK
€ 9.50
6
2531028C20
ref: 6
CAM,GEAR SHIFT
€ 232.50
7
0422104089
ref: 7
PIN
€ 1.50
8
2532231301
ref: 8
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9-1
2531327C00
ref: 9-1
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9-2
2531327C01
ref: 9-2
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533128C00
ref: 14
LIFTER,GEAR SHIFT POLE
€ 15.00
15
0918006204
ref: 15
SPACER(6.2X12X18)
€ 6.50
16-1
0212206128
ref: 16-1
02122-06127
SCREW
€ 3.00
16-2
0212206123
ref: 16-2
02122-0612A
SCREW
€ 3.00
17-1
0212206308
ref: 17-1
02122-0630B
SCREW
€ 2.00
17-2
0212206303
ref: 17-2
02122-0630B
SCREW
€ 2.00
18-1
2474120A10
ref: 18-1
24741-21A00
RETAINER,SHIFT CAM,R BEARING
€ 2.00
18-2
2474121A00
ref: 18-2
RETAINER
€ 2.00
19-1
0211206128
ref: 19-1
02112-06127
SCREW 6X12
€ 2.00
19-2
0211206123
ref: 19-2
02112-0612A
SCREW
€ 1.50
20
2538128C20
ref: 20
PLATE,SHIFT CAM STOPPER
€ 31.50
21
0911106041
ref: 21
BOLT(6X14.3)
€ 3.00
22
0821106121
ref: 22
WASHER
€ 2.00
23
2535028C20
ref: 23
STOPPER,SHIFT CAM
€ 12.00
24
0944818024
ref: 24
SPRING
€ 3.50
25
0814069050
ref: 25
BEARING
€ 28.50
26
0926330035
ref: 26
BEARING(30X37X12)
€ 22.00
27
2551028C30
ref: 27
SHAFT,GEAR SHIFT
€ 48.00
28
0918014016
ref: 28
SPACER(14X20X17.5)
€ 4.50
29
0944426013
ref: 29
SPRING
€ 3.50
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
€ 6.50
31
2567101000
ref: 31
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
32-1
2560028C21
ref: 32-1
LEVER ASSY,GEAR SHIFT
€ 75.00
32-2
2560028E10
ref: 32-2
25600-28E11
LEVER ASSEMBLY,GEAR SHIFTING
€ 49.50
33
2565227C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 21.00
34-1
0154706257
ref: 34-1
BOLT
€ 2.50
34-2
0154706253
ref: 34-2
01547-0625B
SCREW
€ 2.50
