FRONT DAMPER (MODEL P)
RM250 1994 (R) USA (E03)

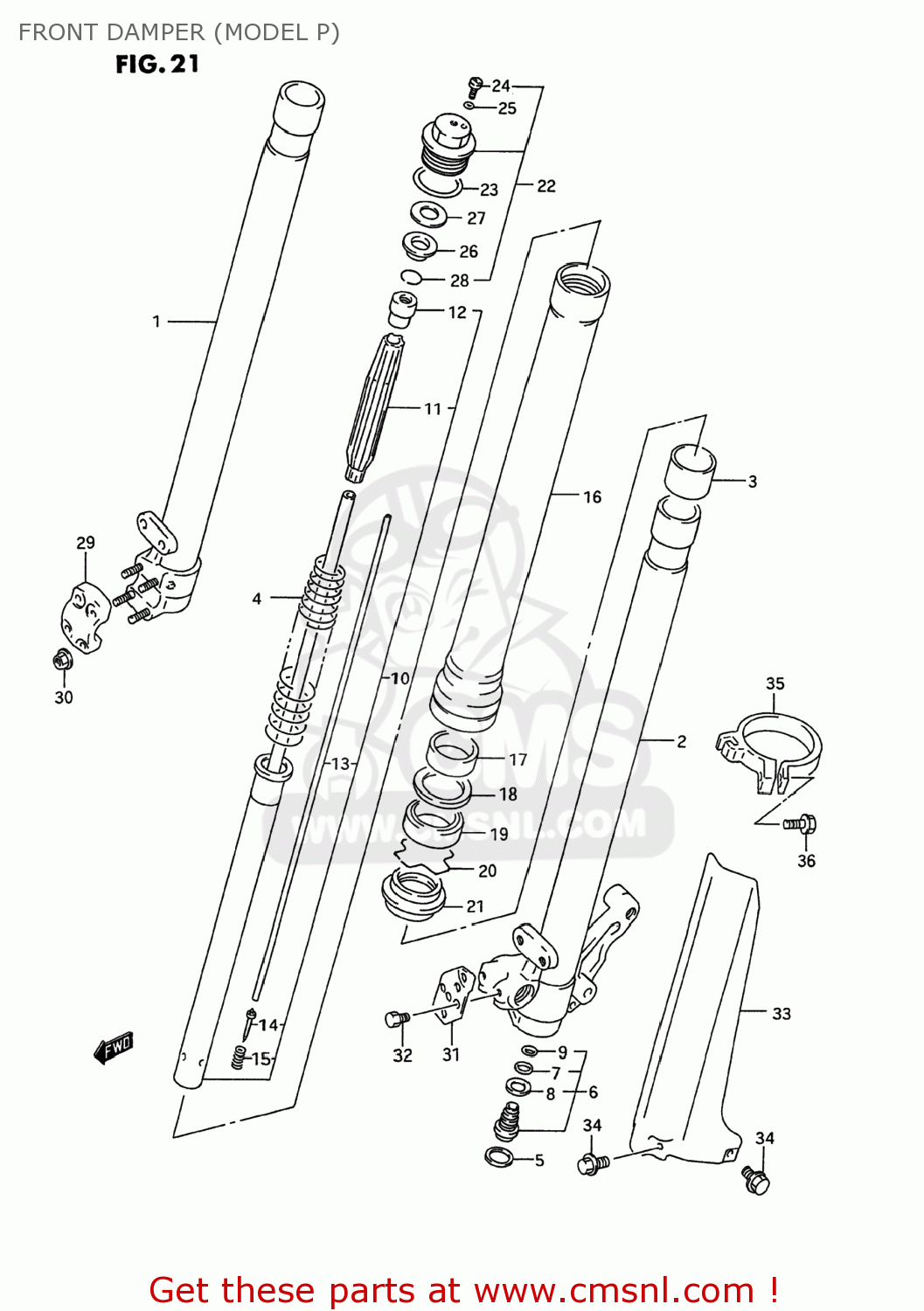

Front damper (model p) diagram RM250 1994 (R) USA (E03)
FRONT DAMPER (MODEL P) RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110328E10
ref:
DAMPER ASSEMBLY,RIGHT
€ 1,401.50
5110428E10
ref:
DAMPER ASSEMBLY,LEFT
€ 1,401.50
1
5111028E00
ref: 1
TUBE,INNER,RIGHT
€ 416.50
2
5112028E00
ref: 2
TUBE,INNER,L
€ 451.50
3
5112127C40
ref: 3
BUSH,SLIDE
€ 13.50
4
5117128E00
ref: 4
SPRING,MAIN
€ 65.00
5
5113343D00
ref: 5
RING,CTR BOLT STOPPER
€ 5.00
6
5117028E00
ref: 6
BOLT ASSY,CTR
€ 173.50
7
5117743D00
ref: 7
O RING,CTR BOLT
€ 5.50
8
5114843D00
ref: 8
GASKET (NAS)
€ 6.50
9
5117443D00
ref: 9
O RING,CTR BOLT UPR
€ 3.00
10
5119028E00
ref: 10
DAMPER,FR
€ 532.50
11
5117228E00
ref: 11
GUIDE,PUSH ROD SPRING
€ 36.00
12
5112943D00
ref: 12
NUT,ROD
€ 19.50
13
5119128E00
ref: 13
ROD,PUSH
€ 8.00
14
5119243D00
ref: 14
NEEDLE
€ 10.50
15
5119328E00
ref: 15
SPRING,PUSH ROD
€ 3.50
16
5113028E00
ref: 16
TUBE,OUTER
€ 549.50
17
5116728E00
ref: 17
BUSH,GUIDE
€ 19.00
18
5115827C40
ref: 18
SPACER,SEAL
€ 6.00
19
5115343D00
ref: 19
51153-28E30
OIL SEAL,FRONT FORK
€ 19.00
20
5115627C40
ref: 20
RING,OIL SEAL STOPPER
€ 3.50
21
5117343D00
ref: 21
51173-28E40
SEAL,DUST
€ 22.00
22
5135128E00
ref: 22
BOLT ASSY,FORK
€ 97.00
23
5111727C40
ref: 23
O RING
€ 3.50
24
5135727C40
ref: 24
BOLT,PLUG
€ 5.50
25
5135827C40
ref: 25
51117-19C10
O RING, PLUG
€ 2.00
26
5117528E00
ref: 26
SEAT,SPRING
€ 8.00
27
5117628E00
ref: 27
WASHER,THRUST
€ 5.50
28
5113328E00
ref: 28
RING,STOPPER
€ 4.00
29
5113227C40
ref: 29
HOLDER,AXLE,R
€ 34.00
30
0831931067
ref: 30
NUT
€ 2.50
31
5924827C40
ref: 31
GUIDE,HOSE,L
€ 14.00
32
5924927C40
ref: 32
01500-05087
BOLT, HOSE GUIDE
€ 2.00
33-1
5150143D00
ref: 33-1
51501-29E00
PROTECTOR,FORK,RIGHT
€ 80.00
33-2
5151143D00
ref: 33-2
51511-29E00
PROTECTOR,FORK,LEFT
€ 87.00
34
5862727C40
ref: 34
BOLT,PROTECTOR(6X10)
€ 2.50
35
5121043D00
ref: 35
GUIDE,FORK PROTECTOR
€ 46.50
36
5862843D00
ref: 36
01547-06207
BOLT,PROTECTOR GUIDE,6
€ 2.50
