CRANKSHAFT (MODEL R/S)
RM250 1994 (R) USA (E03)

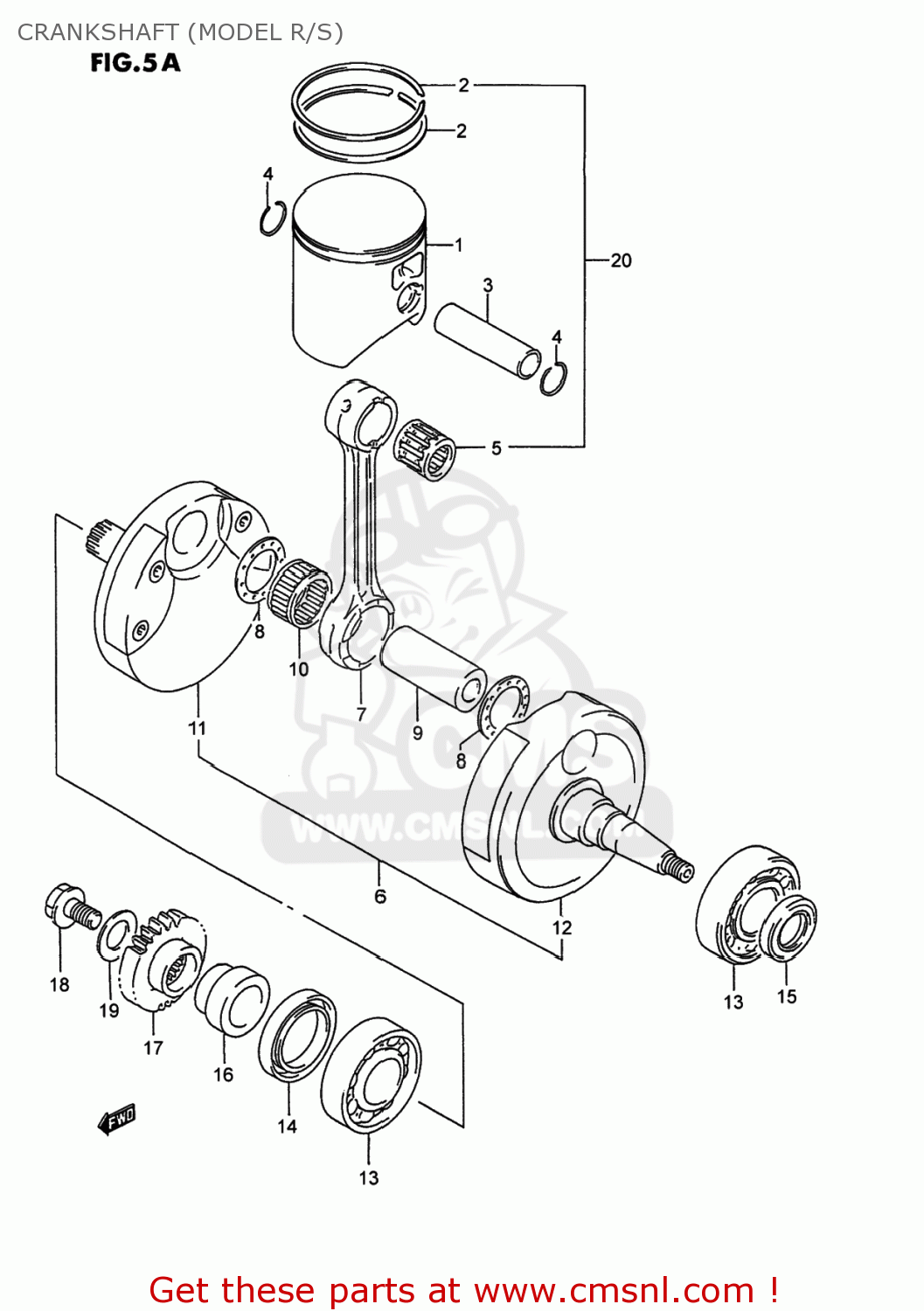

Crankshaft (model r/s) diagram RM250 1994 (R) USA (E03)
CRANKSHAFT (MODEL R/S) RM250 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1211028E100F0
ref: 1
12110-29E20-0F0
PISTON COMP
€ 71.50
2
1214128E00
ref: 2
RING,PISTON
€ 24.50
3
1215128C00
ref: 3
12151-37F00
PIN,PISTON
€ 13.00
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318016
ref: 5
BEARING(18X23X22)
€ 14.00
6-1
1220028E10
ref: 6-1
CRANKSHAFT ASSY
€ 637.50
6-2
1220028E20
ref: 6-2
CRANKSHAFT ASSEMBLY
€ 534.00
7
1216128C30
ref: 7
ROD,CONNECTING
€ 92.00
8
0916024027
ref: 8
WASHER(24X38.5X1.5)
€ 19.50
9-1
1221128C10
ref: 9-1
12211-05D00
PIN,CRANK
€ 33.00
9-2
1221105D00
ref: 9-2
PIN,CRANK
€ 33.00
10
0926324026
ref: 10
BEARING(24X30X20)
€ 62.50
11-1
1222028E10
ref: 11-1
CRANKSHAFT,R
€ 278.00
11-2
1222028E20
ref: 11-2
CRANKSHAFT COMP,RIGHT
€ 222.00
12-1
1226028E10
ref: 12-1
CRANKSHAFT,L
€ 275.50
12-2
1226028E20
ref: 12-2
CRANKSHAFT,L
€ 275.50
13
0926228027
ref: 13
BEARING(28X68X18)
€ 71.00
14
0928338018
ref: 14
SEAL,OIL(38X52X8)
€ 19.50
15
0928320051
ref: 15
SEAL,OIL(20X37X6)
€ 14.50
16
1235928E10
ref: 16
SPACER,PRIMARY DRIVE GEAR
€ 15.00
17
2111114320
ref: 17
21111-14321
GEAR,PRIMARY DRIVE (NT:
€ 46.50
18
2114127C11
ref: 18
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
19
0916411004
ref: 19
WASHER
€ 6.00
20
1210128811
ref: 20
12101-28812
TOP END KIT,ENGINE
€ 237.00
