CARBURETOR (MODEL K1)
RM250 2001 (K1) USA (E03)

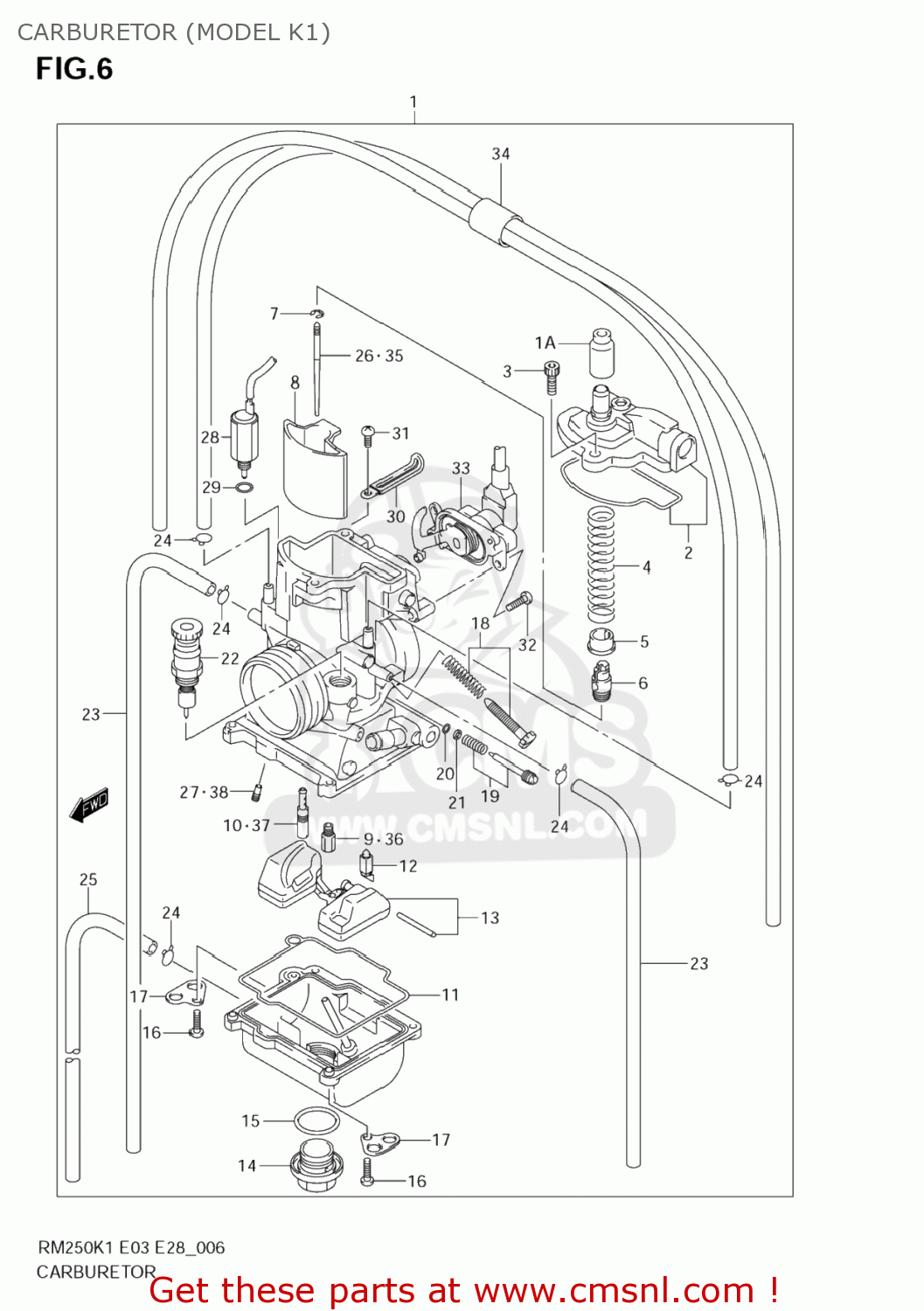

Carburetor (model k1) diagram RM250 2001 (K1) USA (E03)
CARBURETOR (MODEL K1) RM250 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
1368143D30
ref: 1A
CAP,CARBURETOR
€ 7.50
1-1
1320037F01
ref: 1-1
CARBURETOR ASSY
€ 564.00
1-2
1320037F11
ref: 1-2
CARBURETOR ASSY
€ 617.50
2
1326037F00
ref: 2
CAP SET,TOP
€ 37.50
3
1326237F00
ref: 3
SCREW
€ 5.50
4
1357337F00
ref: 4
SPRING,THROTTLE VALVE
€ 12.00
5
1342443D30
ref: 5
COLLAR,THROTTLE VALVE
€ 5.00
6
1358143D30
ref: 6
HOLDER,CABLE
€ 19.00
7
1339428E00
ref: 7
CLIP,NEEDLE
€ 3.50
8
1355137F00
ref: 8
VALVE,THROTTLE
€ 136.50
9-1
0949132011
ref: 9-1
JET,MAIN(162)
€ 13.00
9-2
0949133010
ref: 9-2
JET,MAIN(168)
€ 12.50
10-1
0949248013
ref: 10-1
JET,SLOW(48)
€ 9.50
10-2
0949255019
ref: 10-2
JET,POWER(55)
€ 13.00
11
1369644E00
ref: 11
GASKET,FLOAT CAHMBER
€ 11.00
12
1337043D30
ref: 12
VALVE SET,FLOAT
€ 40.50
13
1324036E20
ref: 13
FLOAT SET
€ 52.00
14
1324728E00
ref: 14
BOLT,DRAIN
€ 15.00
15
1324628E00
ref: 15
O RING
€ 3.50
16
0211234163
ref: 16
02112-3416B
SCREW
€ 3.00
17
1369336E00
ref: 17
PLATE
€ 4.50
18
1327043D30
ref: 18
SCREW SET,STOP
€ 14.50
19
1328043D30
ref: 19
SCREW SET,AIR
€ 18.50
20
1329526E00
ref: 20
O RING
€ 4.50
21
1329126E00
ref: 21
WASHER
€ 3.00
22
1341037F00
ref: 22
STARTER VALVE
€ 58.00
23
1368636E00
ref: 23
HOSE(4X7X620)
€ 7.50
23
1368636E00
ref: 23
HOSE(4X7X620)
€ 7.50
24
0940106101
ref: 24
CLIP
€ 2.50
25
0935135653600
ref: 25
HOSE(3.5X6.5X600)
€ 5.50
26-1
1338337EQ0
ref: 26-1
NEEDLE,JET(N3WK)
€ 15.50
26-2
1338337EQ0
ref: 26-2
NEEDLE,JET(N3WK)
€ 15.50
27-1
1334537F00
ref: 27-1
JET,POWER(45)
€ 12.50
27-2
0949255019
ref: 27-2
JET,POWER(55)
€ 13.00
28
1316037E01
ref: 28
SOLENOID ASSY
€ 105.50
29
1345337E00
ref: 29
O RING
€ 4.00
30
1345137E00
ref: 30
CLAMP
€ 6.00
31
1345237E00
ref: 31
SCREW
€ 2.00
32
1360237F00
ref: 32
SCREW
€ 2.50
33
1358037F00
ref: 33
SENSOR ASSY
€ 148.00
34
1345137F00
ref: 34
CLIP
€ 5.00
35-1
1338337EN0
ref: 35-1
NEEDLE, JET (N3WW)
€ 10.50
35-10
1338336EE0
ref: 35-10
NEEDLE JET (N3YM)
€ 11.50
35-2
1338337EP0
ref: 35-2
NEEDLE,JET(N3WJ)
€ 13.00
35-3
1338337EQ0
ref: 35-3
NEEDLE,JET(N3WK)
€ 15.50
35-4
1338337ER0
ref: 35-4
NEEDLE,JET(N3WL)
€ 11.50
35-5
1338337ES0
ref: 35-5
NEEDLE,JET(N3WM)
€ 13.00
35-6
1338336EA0
ref: 35-6
NEEDLE,JET(N3YW)
€ 13.00
35-7
1338336EB0
ref: 35-7
NEEDLE,JET(N3YJ)
€ 13.00
35-8
1338336EC0
ref: 35-8
NEEDLE,JET(N3YK)
€ 13.00
35-9
1338336ED0
ref: 35-9
NEEDLE,JET(N3YL)
€ 13.00
36-1
0949130018
ref: 36-1
JET,MAIN(150)
€ 13.00
36-10
0949134011
ref: 36-10
JET,MAIN(172)
€ 12.50
36-11
0949135009
ref: 36-11
JET,MAIN(175)
€ 15.50
36-12
0949135010
ref: 36-12
JET,MAIN(178)
€ 15.50
36-13
0949136008
ref: 36-13
JET,MAIN(180)
€ 15.50
36-14
0949137008
ref: 36-14
JET,MAIN(185)
€ 15.50
36-15
0949138011
ref: 36-15
JET,MAIN(190)
€ 15.50
36-16
0949139001
ref: 36-16
JET,MAIN(195)
€ 12.50
36-17
0949140013
ref: 36-17
JET,MAIN(200)
€ 12.50
36-18
0949141001
ref: 36-18
JET,MAIN(205)
€ 8.50
36-19
0949142006
ref: 36-19
JET,MAIN(210)
€ 8.50
36-2
0949130019
ref: 36-2
JET,MAIN(152)
€ 13.00
36-3
0949131012
ref: 36-3
JET,MAIN(155)
€ 13.00
36-4
0949131013
ref: 36-4
JET,MAIN(158)
€ 13.00
36-5
0949132010
ref: 36-5
JET,MAIN(160)
€ 13.00
36-6
0949132011
ref: 36-6
JET,MAIN(162)
€ 13.00
36-7
0949133009
ref: 36-7
JET,MAIN(165)
€ 9.00
36-8
0949133010
ref: 36-8
JET,MAIN(168)
€ 12.50
36-9
0949134010
ref: 36-9
JET,MAIN(170)
€ 12.50
37-1
0949235019
ref: 37-1
JET,SLOW(35)
€ 13.00
37-10
0949260016
ref: 37-10
JET,SLOW(60)
€ 12.50
37-2
0949240022
ref: 37-2
JET,SLOW(40)
€ 15.50
37-3
0949242019
ref: 37-3
JET,SLOW(42)
€ 12.50
37-4
0949245032
ref: 37-4
JET,PILOT(45)
€ 9.00
37-5
0949248013
ref: 37-5
JET,SLOW(48)
€ 9.50
37-6
0949250023
ref: 37-6
JET,SLOW(50)
€ 11.50
37-7
0949252011
ref: 37-7
JET,SLOW(52)
€ 11.50
37-8
0949255017
ref: 37-8
JET,SLOW(55)
€ 11.50
37-9
0949258001
ref: 37-9
JET,PILOT(58)
€ 9.50
38-1
0949250025
ref: 38-1
JET,POWER(50)
€ 9.50
38-2
0949255019
ref: 38-2
JET,POWER(55)
€ 13.00
38-3
0949260018
ref: 38-3
JET,POWER(60)
€ 10.00
