REAR WHEEL (MODEL K5)
RM250 2001 (K1) USA (E03)

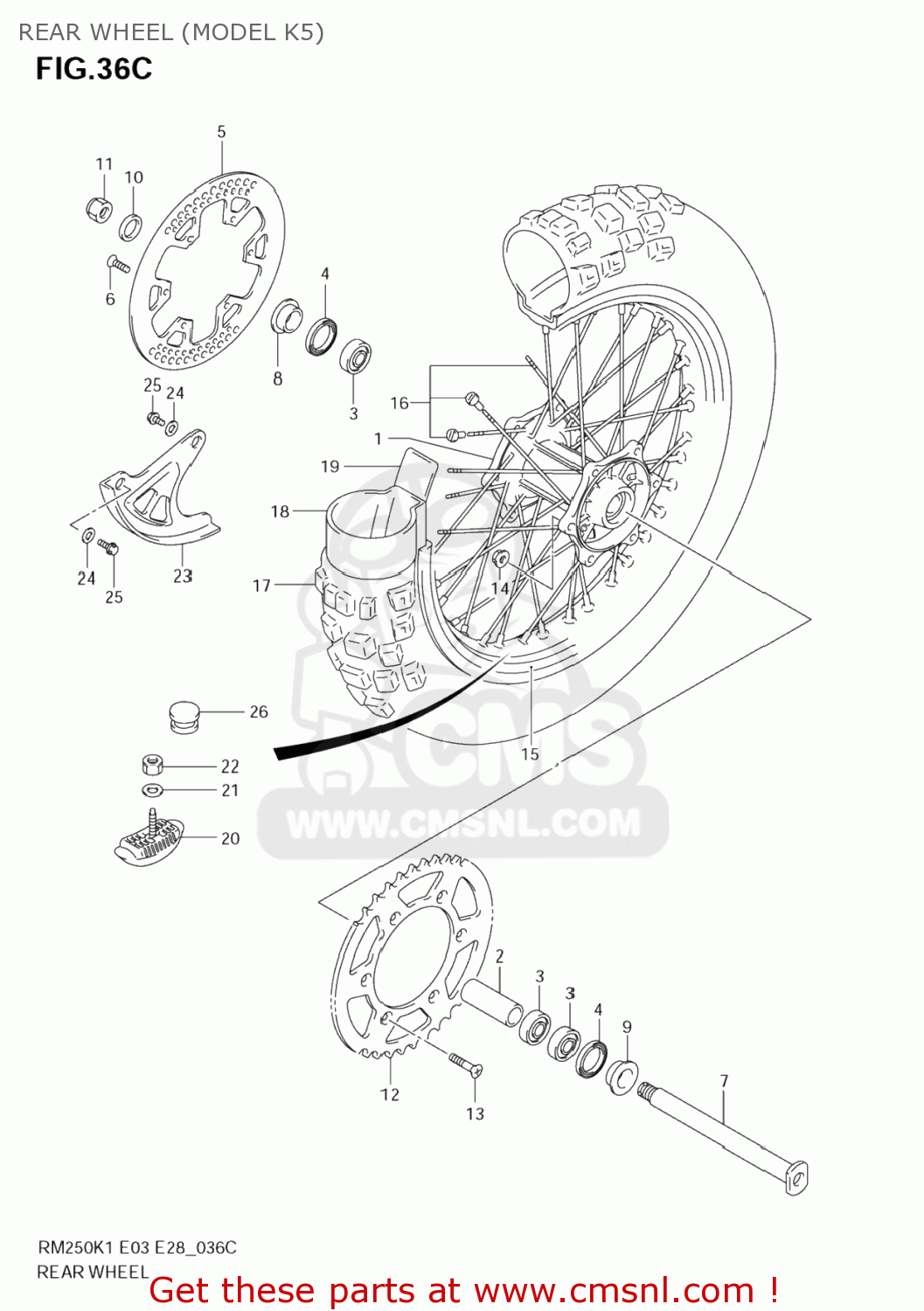

Rear wheel (model k5) diagram RM250 2001 (K1) USA (E03)
REAR WHEEL (MODEL K5) RM250 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411136E00
ref: 1
HUB,RR WHEEL
€ 361.00
2
6473136E00
ref: 2
SPACER,RR HUB BEARING
€ 22.50
3
0926222033
ref: 3
BEARING(22X44X12)
€ 32.50
4
0928330023
ref: 4
SEAL,OIL(30X44X7)
€ 8.50
5
6921137F10
ref: 5
DISC,RR BRAKE
€ 151.00
6
0912006014
ref: 6
SCREW(6X18)
€ 2.50
7
6471137F00
ref: 7
AXLE,RR
€ 89.00
8
6475136E00
ref: 8
SPACER,RR AXLE
€ 19.00
9
6475136E00
ref: 9
SPACER,RR AXLE
€ 19.00
10
0916019022
ref: 10
WASHER(19X32X3.2)
€ 5.00
11
0915918007
ref: 11
NUT
€ 14.00
12-1
6451136E00
ref: 12-1
SPROCKET,RR(NT:50)
€ 99.00
12-2
6451128E00
ref: 12-2
SPROCKET,RR(NT:49)
€ 99.00
12-3
6451137E00
ref: 12-3
SPROCKET,RR(NT:48)
€ 99.00
12-4
6451140261
ref: 12-4
SPROCKET,RR(NT:51 AL)
€ 87.50
13
0912008017
ref: 13
BOLT(8X28)
€ 2.00
14
0915908067
ref: 14
NUT
€ 5.50
15
6531137E00
ref: 15
RIM,RR WHEEL(2.15X19 AL.)
€ 270.00
16
6532037F10
ref: 16
SPOKE SET,RR WHEEL
€ 116.00
17-1
6511037F60
ref: 17-1
TIRE,RR(110/90 19 62M)
€ 0.00
17-1
6511037F60
ref: 17-1
TIRE,RR(110/90 19 62M)
€ 0.00
17-2
6511037F40
ref: 17-2
TIRE,RR(110/90 19)
€ 169.50
17-2
6511037F40
ref: 17-2
TIRE,RR(110/90 19)
€ 169.50
18
6520028C20
ref: 18
65200-01B30
TUBE ASSY,WHEEL INNER
€ 41.00
19
6526128C20
ref: 19
PROTECTOR,WHL INR TUBE
€ 5.50
20
6527028E00
ref: 20
STOPPER,BEAD(2.15)
€ 38.00
21
0832201083
ref: 21
08322-0108A
WASHER
€ 1.50
22
0831000083
ref: 22
08310-0008A
NUT
€ 1.50
23
6923137F10
ref: 23
69231-37F12
COVER,REAR DIS
€ 12.50
24
0832201067
ref: 24
WASHER
€ 2.00
25
0910306256
ref: 25
BOLT(6X10)
€ 2.00
26
0925008013
ref: 26
CAP(OD:12)
€ 2.00
