CYLINDER (MODEL K2)
RM250 2001 (K1) USA (E03)

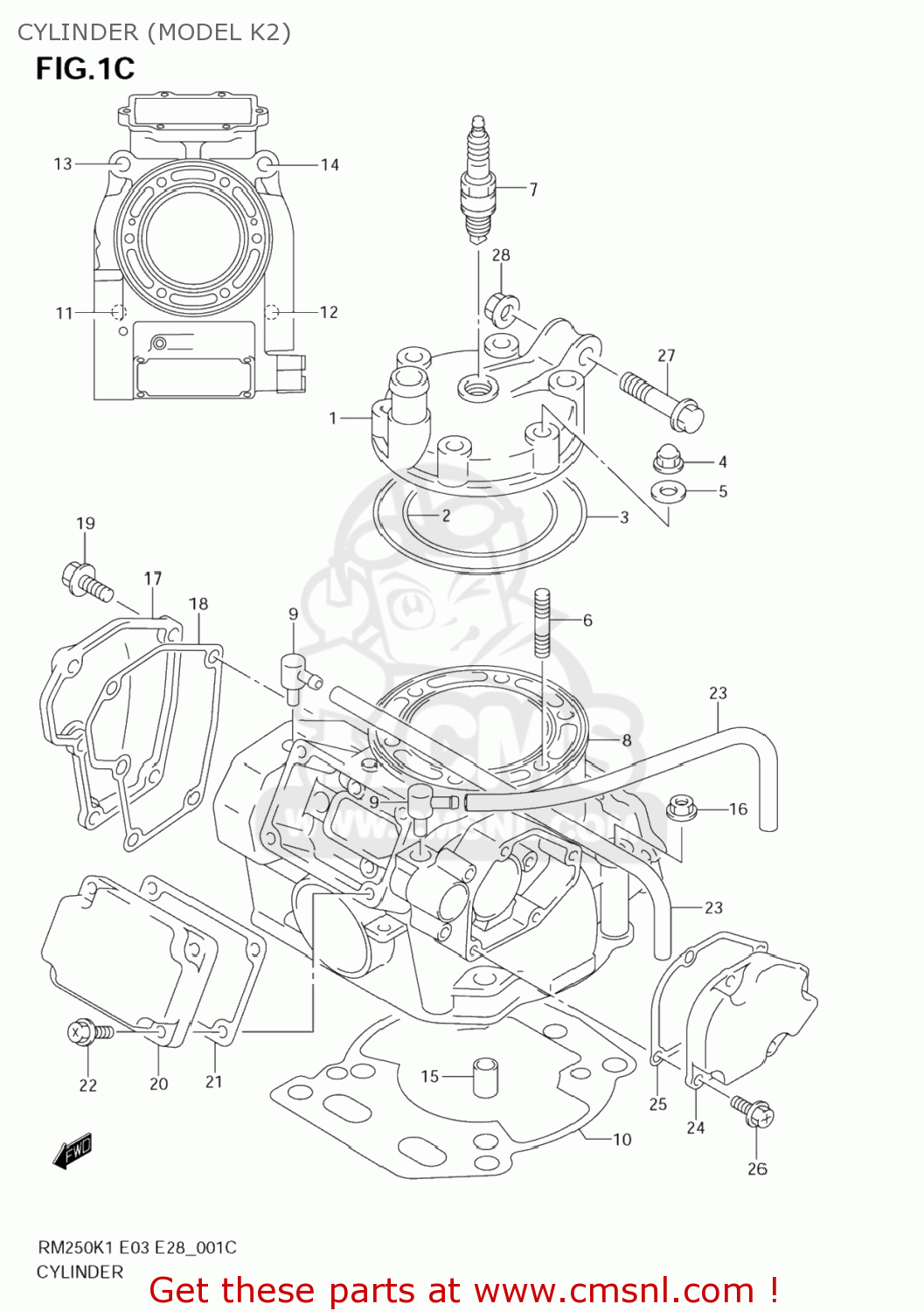

Cylinder (model k2) diagram RM250 2001 (K1) USA (E03)
CYLINDER (MODEL K2) RM250 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111137F10
ref: 1
HEAD,CYLINDER
€ 96.50
2
1114737F00
ref: 2
O RING,CYLINDER HEAD NO.1
€ 12.50
3
1114837F00
ref: 3
O RING,CYLINDER HEAD NO.2
€ 7.00
4
0915908049
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
09108-08231
BOLT,STUD
€ 4.50
7
0948200561
ref: 7
PLUG,SPARK(BR8EG)
€ 10.00
8
1120037871
ref: 8
CYLINDER SET
€ 539.50
9
1691009401
ref: 9
UNION,BREATHER HOSE
€ 18.00
10
1124137F01
ref: 10
GASKET,CYLINDER (NAS)
€ 7.50
11
0142110308
ref: 11
01421-1030A
STUD 10X30
€ 2.50
12
0142110408
ref: 12
01421-1040A
STUD BOLT (L:40)
€ 2.00
13
0142110603
ref: 13
01421-1060A
STUD BOLT (L:60)
€ 18.00
14
0142110708
ref: 14
STUD BOLT (L:70)
€ 3.00
15
0920613017
ref: 15
PIN(13X10.4X20)
€ 9.00
16
0831610103
ref: 16
08316-1010B
NUT
€ 2.00
17
1123137E30
ref: 17
COVER,CYLINDER NO.1
€ 24.50
18
1123337E30
ref: 18
GASKET,CYLINDER COVER NO.1 (NAS)
€ 6.50
19
0910306234
ref: 19
BOLT(6X16)
€ 2.50
20
1124837E30
ref: 20
COVER,CYLINDER NO.2
€ 29.00
21
1123836E01
ref: 21
GASKET,CYL COVER NO.2
€ 5.00
22
0216205163
ref: 22
02162-0516A
BOLT
€ 1.50
23
0935250823600
ref: 23
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
24
1124937E30
ref: 24
COVER,CYLINDER NO.3
€ 13.50
25
1123437E31
ref: 25
GASKET,CYL COVER NO.3 (NAS)
€ 4.50
26
0216205163
ref: 26
02162-0516A
BOLT
€ 1.50
27
0910310126
ref: 27
BOLT(10X48)
€ 4.50
28
0915910060
ref: 28
NUT
€ 2.00
