ELECTRICAL (MODEL K5/K6)

RM250 2001 (K1) USA (E03)

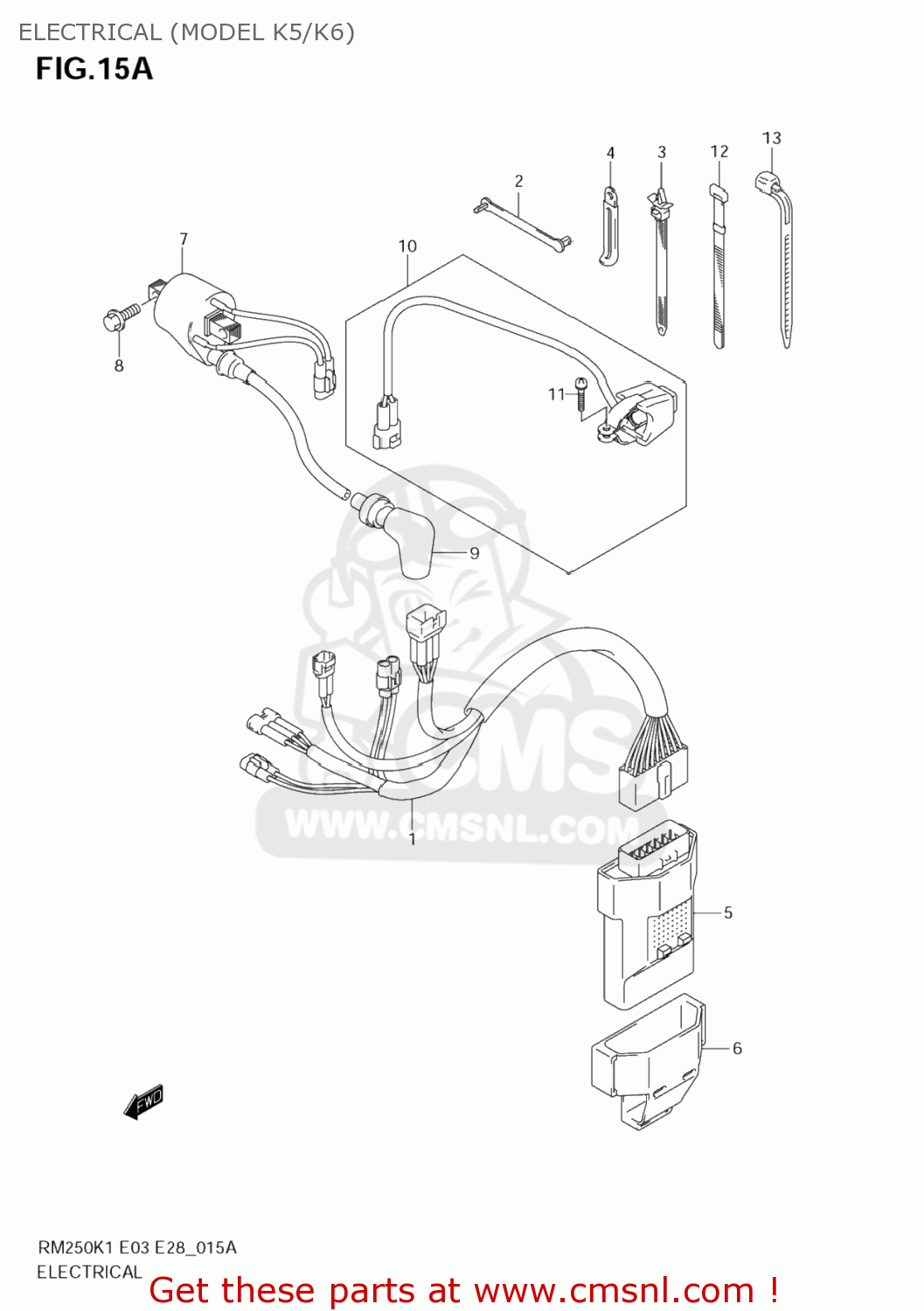

Electrical (model k5/k6) diagram RM250 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

3661037F30
ref: 1

HARNESS,WIRING

€ 126.50

3665148E00
ref: 2

CLAMP(L:63)

€ 2.50

0940711402
ref: 3

CLAMP(L:90)

€ 2.50

0940406429
ref: 4

CLAMP(L:45)

€ 2.50

5-1

3290037F40
ref: 5-1

CDI UNIT

€ 354.00

5-2

3290037F50
ref: 5-2

CDI UNIT

€ 520.50

3298037F00
ref: 6

CUSHION,CDI UNIT

€ 8.50

3341037F00
ref: 7

COIL ASSY,IGNITION

€ 88.00

0910306234
ref: 8

BOLT(6X16)

€ 2.50

3351020A02
ref: 9

CAP,SPARK PLUG

€ 23.00

3782036E00
ref: 10

SWITCH ASSY,ENGINE STOP

€ 21.00

0211233165
ref: 11

SCREW

€ 1.50

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13-1

0940711401
ref: 13-1

CLAMP(L:95)

€ 2.50

13-2

0940714403
ref: 13-2

CLAMP(L:125)

€ 2.50
