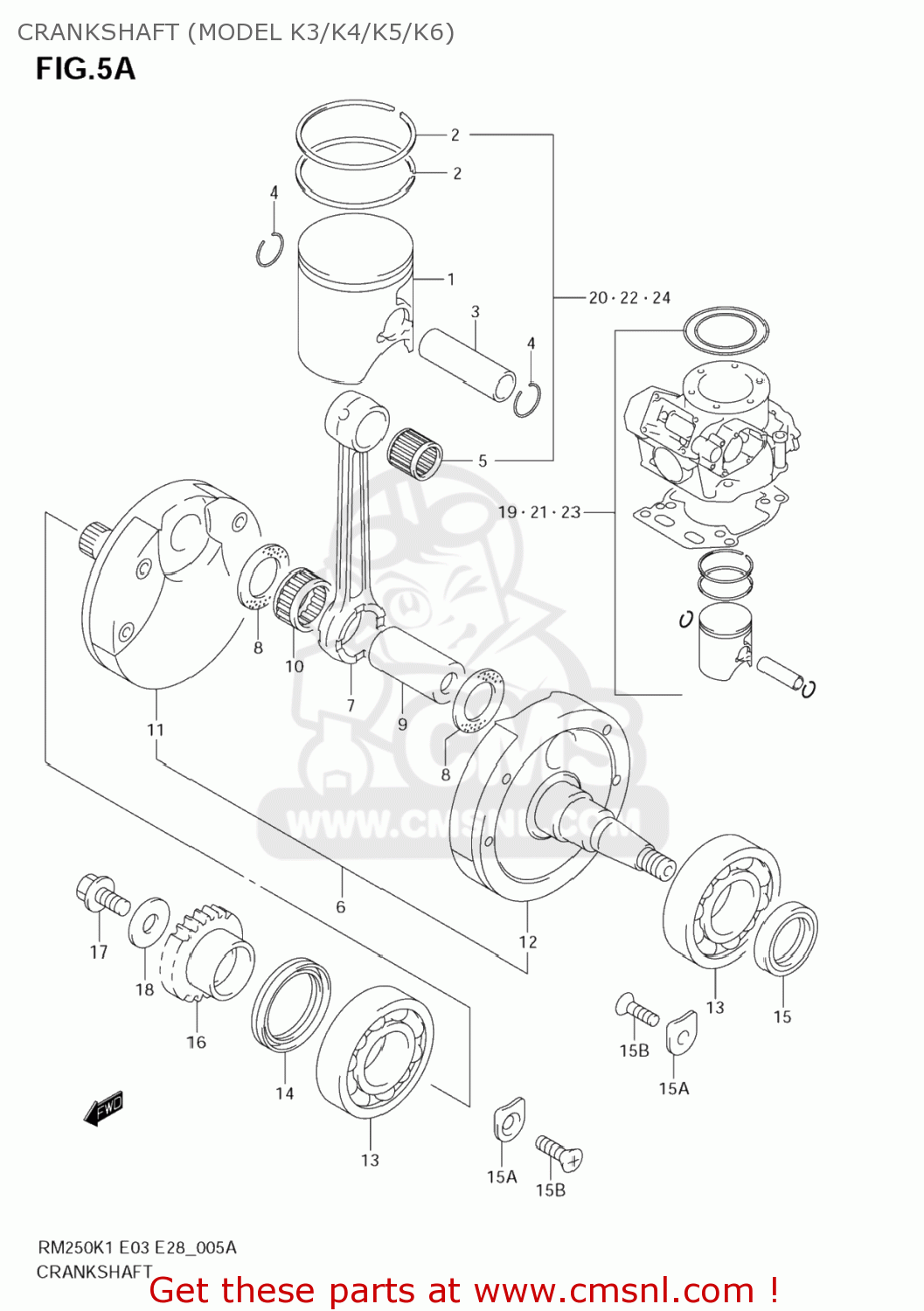

CRANKSHAFT (MODEL K3/K4/K5/K6)

ref

part #

description

quantity

1-1

1211037F200F0
ref: 1-1

PISTON

€ 70.00

1-2

1211037F300F0
ref: 1-2

PISTON

€ 100.50

2-1

1214137E02
ref: 2-1

RING,PISTON

€ 33.00

2-2

1214137F00
ref: 2-2

RING,PISTON

€ 34.50

3-1

1215137F00
ref: 3-1

PIN,PISTON

€ 13.00

3-2

1215128C00
ref: 3-2
12151-37F00

PIN,PISTON

€ 13.00

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318031
ref: 5

BEARING(18X23X22)

€ 21.00

6-1

1220037F20
ref: 6-1

CRANKSHAFT ASSY

€ 562.50

6-2

1220037F30
ref: 6-2

CRANKSHAFT ASSY

€ 596.50

6-3

1220037F40
ref: 6-3

CRANKSHAFT ASSY

€ 858.00

7

1216137F20
ref: 7

CONNECTING ROD

€ 106.00

8

0916024033
ref: 8

WASHER(24X39X1)

€ 14.50

9

1221037F20
ref: 9

PIN,CRANK

€ 34.00

10

0926324026
ref: 10

BEARING(24X30X20)

€ 62.50

11-1

1222037F20
ref: 11-1

CRANKSHAFT,R

€ 248.50

11-2

1222037F30
ref: 11-2

CRANKSHAFT,R

€ 248.50

11-3

1222037F40
ref: 11-3

CRANKSHAFT,R

€ 382.50

12-1

1226037F20
ref: 12-1

CRANKSHAFT,L

€ 254.00

12-2

1226037F30
ref: 12-2

CRANKSHAFT,L

€ 254.00

12-3

1226037F40
ref: 12-3

CRANKSHAFT,L

€ 250.50

13-1

0926228027
ref: 13-1

BEARING(28X68X18)

€ 71.00

13-2

0926228044
ref: 13-2

BEARING(28X68X18)

€ 73.00

14-1

0928328024
ref: 14-1

SEAL,OIL(27X52X8)

€ 24.00

14-2

0928328025
ref: 14-2

SEAL,OIL(28X38X19)

€ 16.50

15

0928325099
ref: 15

SEAL,OIL(25X37X7)

€ 15.00

15A

2474137F00
ref: 15A

RETAINER,CRANKSHAFT BEARING

€ 2.50

15B

0212206123
ref: 15B
02122-0612A

SCREW

€ 3.00

16

2111137F20
ref: 16

GEAR,PRIMARY DRIVE

€ 58.00

17

0910310339
ref: 17

BOLT(10X20)

€ 11.50

18

0916411004
ref: 18

WASHER

€ 6.00

19-1

1210237820
ref: 19-1

TOP END KIT,ENGINE

€ 167.00

19-2

1114737F00
ref: 19-2

O RING,CYLINDER HEAD NO.1

€ 12.50

19-3

1114837F00
ref: 19-3

O RING,CYLINDER HEAD NO.2

€ 7.00

19-4

1124137F20
ref: 19-4

GASKET,CYLINDER (NAS)

€ 7.50

19-5

1211037F200F0
ref: 19-5

PISTON

€ 70.00

19-6

1214137E02
ref: 19-6

RING,PISTON

€ 33.00

19-7

0938118002
ref: 19-7

CIRCLIP

€ 1.50

20-1

1211037812
ref: 20-1

PISTON KIT

€ 122.00

20-2

1211037F200F0
ref: 20-2

PISTON

€ 70.00

20-3

1214137E02
ref: 20-3

RING,PISTON

€ 33.00

20-4

1215137F00
ref: 20-4

PIN,PISTON

€ 13.00

20-5

0926318031
ref: 20-5

BEARING(18X23X22)

€ 21.00

20-6

0938118002
ref: 20-6

CIRCLIP

€ 1.50

21-1

1210237830
ref: 21-1

TOP END KIT,ENGINE

€ 0.00

21-2

1114737F00
ref: 21-2

O RING,CYLINDER HEAD NO.1

€ 12.50

21-3

1114837F00
ref: 21-3

O RING,CYLINDER HEAD NO.2

€ 7.00

21-4

1124137F20
ref: 21-4

GASKET,CYLINDER (NAS)

€ 7.50

21-5

1211037F200F0
ref: 21-5

PISTON

€ 70.00

21-6

1214137F00
ref: 21-6

RING,PISTON

€ 34.50

21-7

0938118002
ref: 21-7

CIRCLIP

€ 1.50

22-1

1211037820
ref: 22-1

PISTON KIT

€ 123.50

22-2

1211037F200F0
ref: 22-2

PISTON

€ 70.00

22-3

1214137F00
ref: 22-3

RING,PISTON

€ 34.50

22-4

1215137F00
ref: 22-4

PIN,PISTON

€ 13.00

22-5

0926318031
ref: 22-5

BEARING(18X23X22)

€ 21.00

22-6

0938118002
ref: 22-6

CIRCLIP

€ 1.50

23-1

1210237840
ref: 23-1

TOP END KIT,ENGINE

€ 249.50

23-2

1114737F00
ref: 23-2

O RING,CYLINDER HEAD NO.1

€ 12.50

23-3

1114837F00
ref: 23-3

O RING,CYLINDER HEAD NO.2

€ 7.00

23-4

1124137F20
ref: 23-4

GASKET,CYLINDER (NAS)

€ 7.50

23-5

1211037F300F0
ref: 23-5

PISTON

€ 100.50

23-6

1214137F00
ref: 23-6

RING,PISTON

€ 34.50

23-7

0938118002
ref: 23-7

CIRCLIP

€ 1.50

24-1

1211037830
ref: 24-1

PISTON KIT

€ 176.00

24-2

1211037F300F0
ref: 24-2

PISTON

€ 100.50

24-3

1214137F00
ref: 24-3

RING,PISTON

€ 34.50

24-4

1215128C00
ref: 24-4
12151-37F00

PIN,PISTON

€ 13.00

24-5

0926318031
ref: 24-5

BEARING(18X23X22)

€ 21.00

24-6

0938118002
ref: 24-6

CIRCLIP

€ 1.50
