CRANKCASE (MODEL K3/K4/K5/K6)
RM250 2001 (K1) USA (E03)

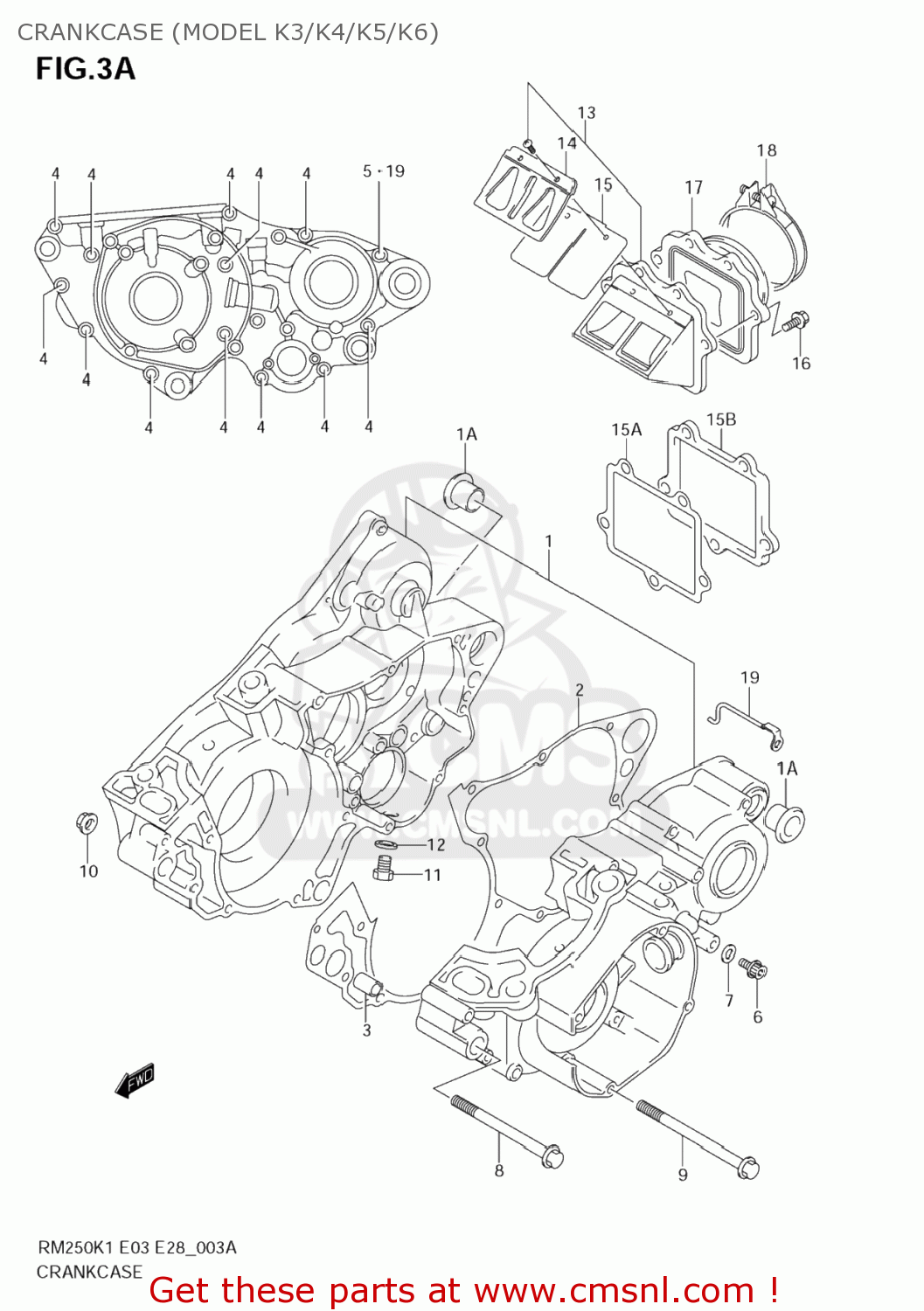

Crankcase (model k3/k4/k5/k6) diagram RM250 2001 (K1) USA (E03)
CRANKCASE (MODEL K3/K4/K5/K6) RM250 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
1131537F10
ref: 1A
BUSH,ENGINE PIVOT
€ 24.00
1-1
1130037881
ref: 1-1
11300-37884
CRANKCASE SET
€ 771.00
1-2
1130037890
ref: 1-2
CRANKCASE SET
€ 561.50
1-3
1130137840
ref: 1-3
11301-37841
CRANKCASE SET
€ 740.50
1-4
1130137850
ref: 1-4
CRANKCASE SET
€ 642.00
2
1148137F20
ref: 2
GASKET,CRANKCASE (NAS)
€ 15.50
3
0920613017
ref: 3
PIN(13X10.4X20)
€ 9.00
4
0910306244
ref: 4
BOLT(6X50)
€ 2.50
5
0910306245
ref: 5
BOLT(6X65)
€ 3.00
6
0712006103
ref: 6
07120-0610B
BOLT
€ 2.00
7
0916806004
ref: 7
GASKET(6.2X11X1).2 (NAS)
€ 1.50
8
0910310087
ref: 8
BOLT(10X105)
€ 6.50
9-1
0910310076
ref: 9-1
BOLT(10X118)
€ 7.50
9-2
0910310399
ref: 9-2
BOLT(10X125)
€ 7.00
10
0915910078
ref: 10
NUT
€ 4.50
11
0924712012
ref: 11
PLUG
€ 8.00
12
0916812002
ref: 12
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
13-1
1315037F00
ref: 13-1
13150-37F30
VALVE ASSY,REE
€ 159.50
13-2
1315037F30
ref: 13-2
VALVE ASSY,REED
€ 159.50
14
1315237F00
ref: 14
STOPPER,REED VALVE
€ 6.50
15A
1315537F00
ref: 15A
GASKET,REED VALVE (NAS)
€ 9.00
15B
1315637F00
ref: 15B
SPACER,REED VALVE
€ 19.50
15-1
1315337F00
ref: 15-1
13153-37F30
VALVE,REED
€ 83.00
15-2
1315337F30
ref: 15-2
VALVE,REED
€ 83.00
16-1
0910306235
ref: 16-1
01547-06207
BOLT,6X20
€ 2.50
16-2
0910306250
ref: 16-2
BOLT(6X25)
€ 2.50
17-1
1311037F20
ref: 17-1
PIPE,INTAKE
€ 48.50
17-2
1311037F40
ref: 17-2
PIPE,INTAKE
€ 47.00
18-1
0940256208
ref: 18-1
09402-56901
CLAMP
€ 3.50
18-2
0940256901
ref: 18-2
CLAMP
€ 3.50
19
1369437F30
ref: 19
GUIDE,CARBURETOR HOSE
€ 6.00
