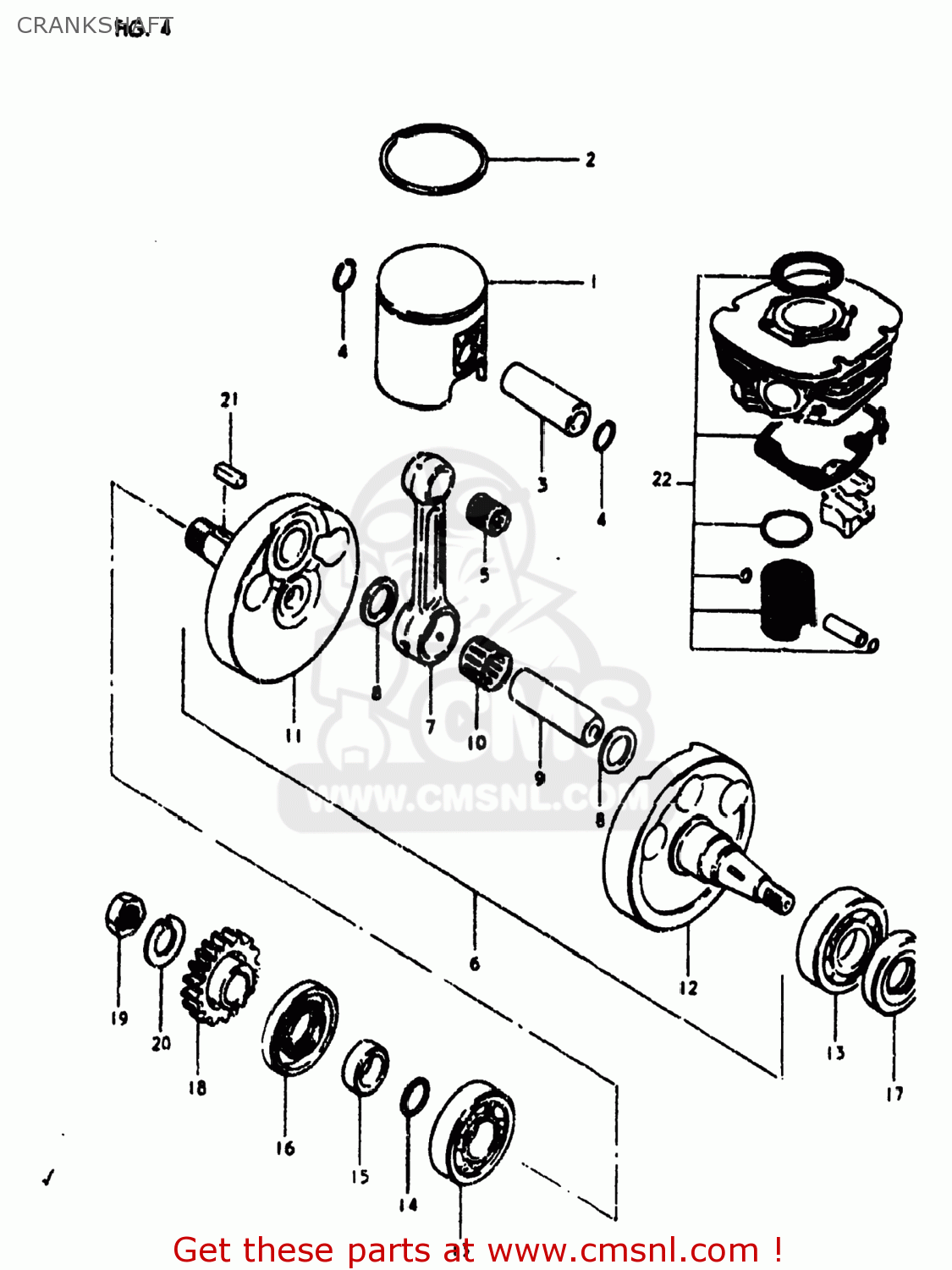

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040400
ref: 1-1

PISTON

€ 118.50

1-2

1211040400025
ref: 1-2
12103-40870-025

PISTON

€ 131.50

1-3

1211040400050
ref: 1-3
12103-40870-050

PISTON

€ 119.00

2-1

1214141220
ref: 2-1

RING,PISTON

€ 32.50

2-2

1214141220025
ref: 2-2

RING,PISTON (OS:0.25)

€ 16.50

2-3

1214141220050
ref: 2-3

RING,PISTON (OS:0.5)

€ 18.50

3

1215115002
ref: 3
12151-13A00-0A0

PIN,PISTON (18MM)

€ 14.50

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318014
ref: 5

BEARING(18X22X22)

€ 20.50

6

1220040400
ref: 6

CRANKSHAFT ASSEMBLY

€ 228.00

7

1216140400
ref: 7

ROD,CONNECTING

€ 112.50

8

0916024014
ref: 8

WASHER(24X29X2)

€ 4.00

9

1221141201
ref: 9
12211-40900

PIN,CRANK

€ 34.50

10

0926324007
ref: 10
09263-24026

BEARING

€ 62.50

11

1222140400
ref: 11

CRANKSHAFT

€ 100.50

12

1226140400
ref: 12

CRANKSHAFT,LEFT

€ 124.00

13

0811363060
ref: 13
09262-30077

BEARING

€ 47.50

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

0918022017
ref: 15

SPACER (22X37X12.5)

€ 0.00

16

0928937001
ref: 16

SEAL,OIL(37X62X9)

€ 26.50

17

0928324001
ref: 17

SEAL,OIL(24X50X9)

€ 19.00

18

2111140400
ref: 18
21111-40402

GEAR,PRIMARY DRIVE

€ 33.50

19

0914014017
ref: 19

NUT

€ 4.00

20

0916614010
ref: 20

WASHER

€ 2.00

21

0942107001
ref: 21

KEY

€ 2.50

22-1

1210040840
ref: 22-1
12100-40841

PISTON SET

€ 0.00

22-2

1210040840025
ref: 22-2
12100-40841-025

PISTON SET (OS:0.25)

€ 0.00

all assemblies
