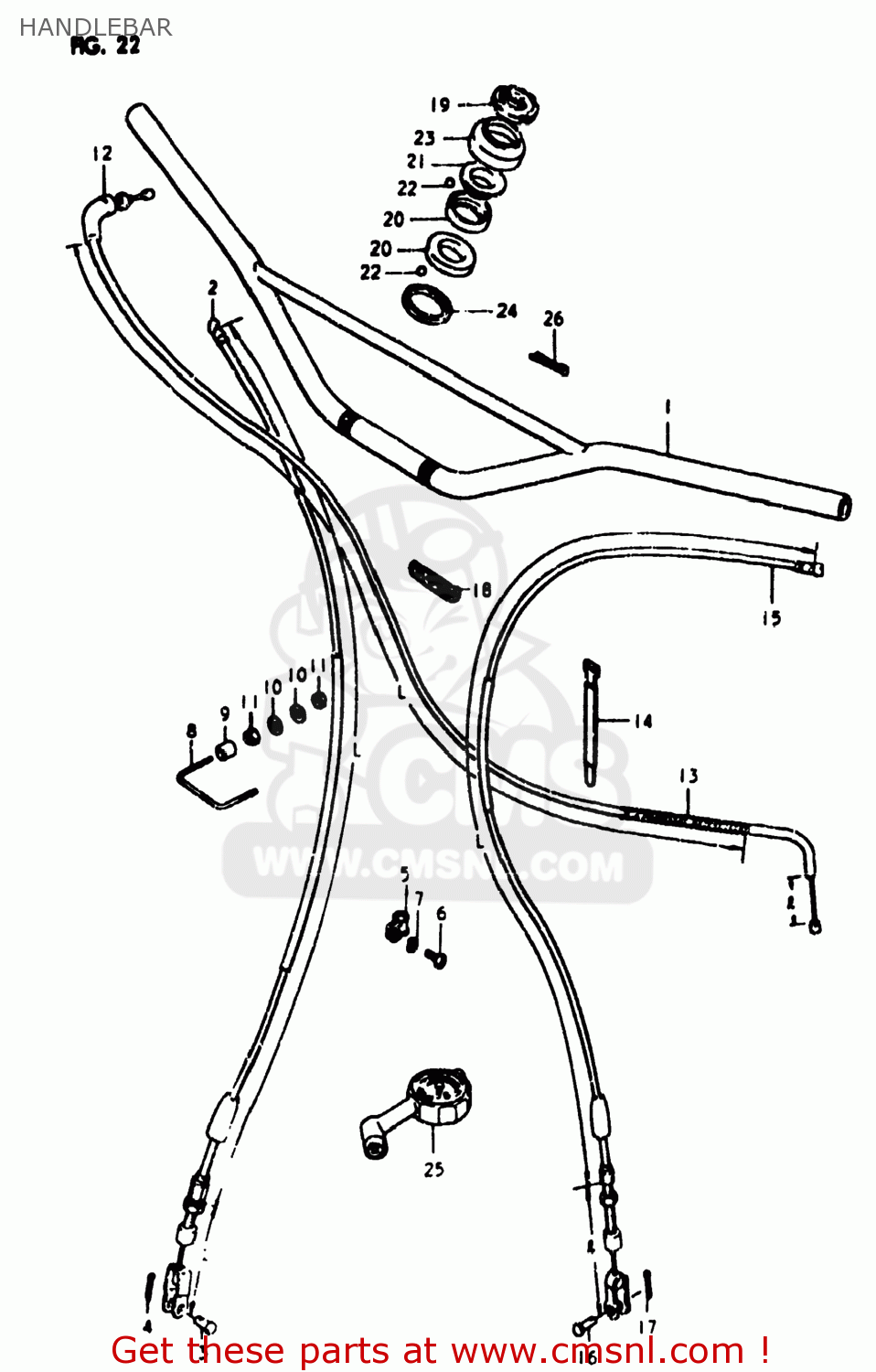

HANDLEBAR

ref

part #

description

quantity

1

561104040008C
ref: 1

HANDLEBAR

€ 94.00

2

5810040400
ref: 2
58100-37200

CABLE ASSEMBLY,FRONT BRAKE

€ 33.50

3

0920005001
ref: 3

PIN(L:17.5)

€ 1.50

4

0411120158
ref: 4
04111-2015A

PIN

€ 1.50

5

5862040401
ref: 5

GUIDE,CABLE

€ 6.50

6

0211206208
ref: 6
02112-06207

SCREW

€ 2.00

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

5862641000
ref: 8

CLAMP,CABLE

€ 5.50

9

0930604002
ref: 9

BUSHING

€ 1.00

10

0832221038
ref: 10
08322-01037

WASHER

€ 2.00

11

0831011038
ref: 11
08310-0003B

NUT 3MM

€ 2.00

12

5830040411
ref: 12
58300-40X05

CABLE ASSEMBLY,THROTTLE

€ 29.00

13

5839927100
ref: 13

PROTECTOR,CABLE

€ 10.50

14

0940718301
ref: 14

CLAMP

€ 6.00

15

5820040400
ref: 15

CABLE ASSY,CLUTCH

€ 32.50

15

5820040400
ref: 15

CABLE ASSY,CLUTCH

€ 32.50

16

0920006004
ref: 16

PIN(L:13)

€ 1.50

17

0411120158
ref: 17
04111-2015A

PIN

€ 1.50

18

0940406401
ref: 18
09404-06432

CLAMP L:35

€ 2.50

19

5163140200
ref: 19

NUT,STEERING STEM

€ 12.00

20

5161140200
ref: 20
51611-40201

RACE,STEERING,INNER,UPPER

€ 8.50

21

5162140200
ref: 21
51621-08D00

RACE,STEERING,OUTER,UPPER

€ 17.00

22

0611108003
ref: 22

BALL

€ 1.50

23

5164340200
ref: 23

SEAL,STEERING UPR DUST

€ 7.50

24

5165140010
ref: 24

DUST SEAL,STEERING HEAD

€ 7.50

25

9620041330
ref: 25

GAUGE ASSY,AIR PRESSURE

€ 77.50

26

0411120208
ref: 26
04111-2020A

PIN 20X20

€ 1.50
