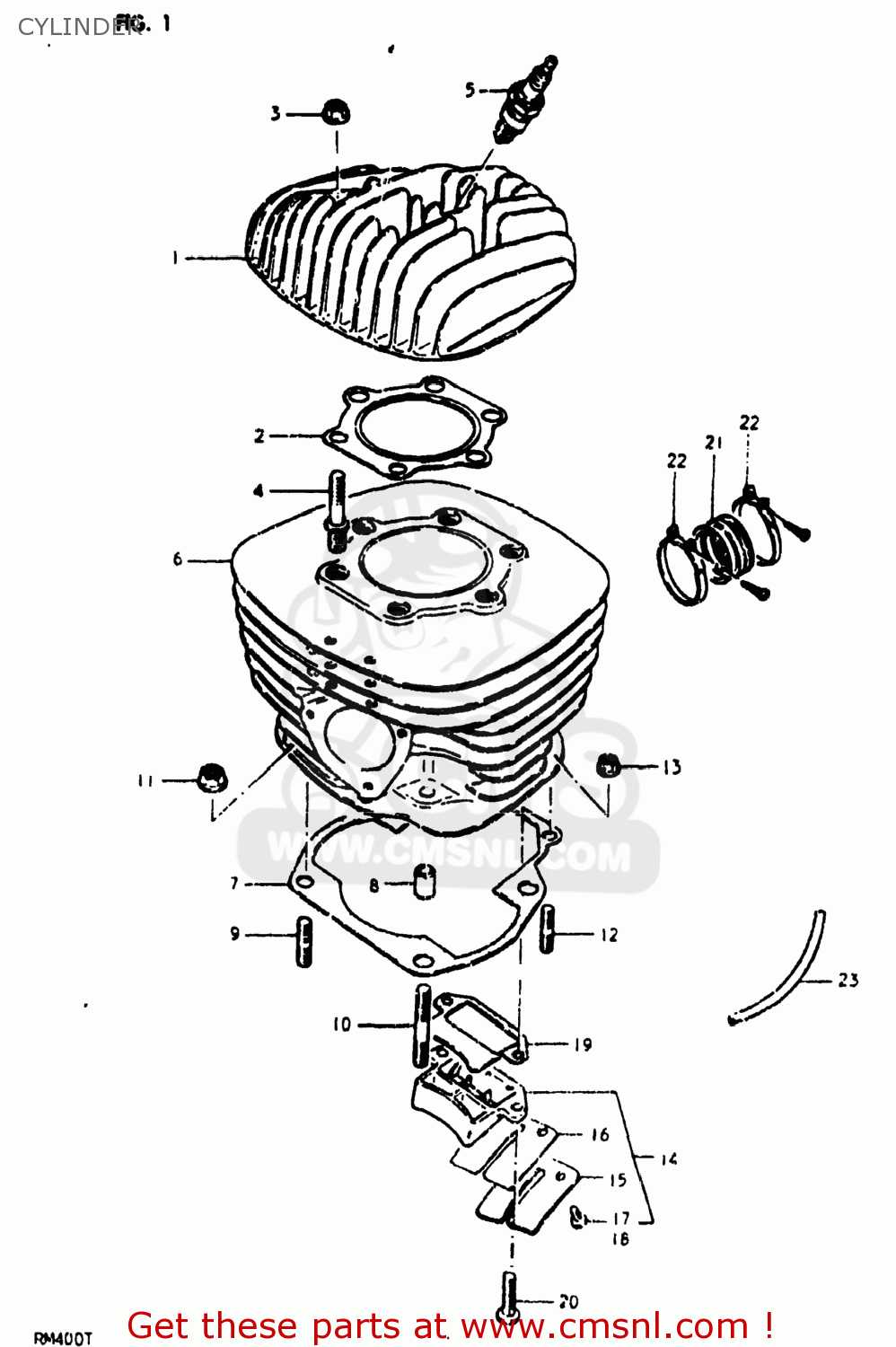

CYLINDER

ref

part #

description

quantity

1

1111140401
ref: 1

HEAD,CYLINDER

€ 141.50

2-1

1114140400
ref: 2-1

GASKET,CYLINDER HEAD (NAS)

€ 16.50

2-2

1114140730
ref: 2-2

GASKET,CYLINDER HEAD

€ 6.00

3

0831616088
ref: 3
08316-10087

NUT

€ 2.50

4

0910808067
ref: 4

STUD

€ 6.00

5

0948200208
ref: 5

PLUG,SPARK(NGK B-8EN)

€ 16.00

6

1121040401
ref: 6

CYLINDER

€ 644.00

7

1124140401
ref: 7
11241-40402

GASKET,CYLINDER (MCA)

€ 10.00

8

0920613001
ref: 8
04211-13189

PIN

€ 2.50

9

0142110308
ref: 9
01421-1030A

STUD 10X30

€ 2.50

10

0142110458
ref: 10
01421-10457

STUD BOLT (L:45)

€ 2.50

11

0831616108
ref: 11
08316-10107

NUT

€ 2.00

12

0142106208
ref: 12
01421-0620A

STUD 6X20

€ 2.50

13

0831616068
ref: 13
08319-31067

NUT

€ 2.50

14

1315040400
ref: 14

VALVE ASSEMBLY,REED

€ 184.50

15

1315240400
ref: 15

STOPPER,REED VALVE

€ 6.50

16

1315340400
ref: 16

VALVE,REED

€ 184.50

17

0211203088
ref: 17
02112-03087

SCREW

€ 1.50

18

0832121038
ref: 18
09162-03001

LOCK WASHER

€ 1.50

19

1315640400
ref: 19
13156-40400-H17

GASKET,REED VALVE (MCA)

€ 6.50

20

0211206168
ref: 20
02112-06167

SCREW

€ 2.50

21

1311140401
ref: 21

PIPE,INTAKE

€ 99.00

22

0940256306
ref: 22
09402-56901

CLAMP

€ 3.50

23

0934304010
ref: 23
09352-40703-600

HOSE

€ 3.00
