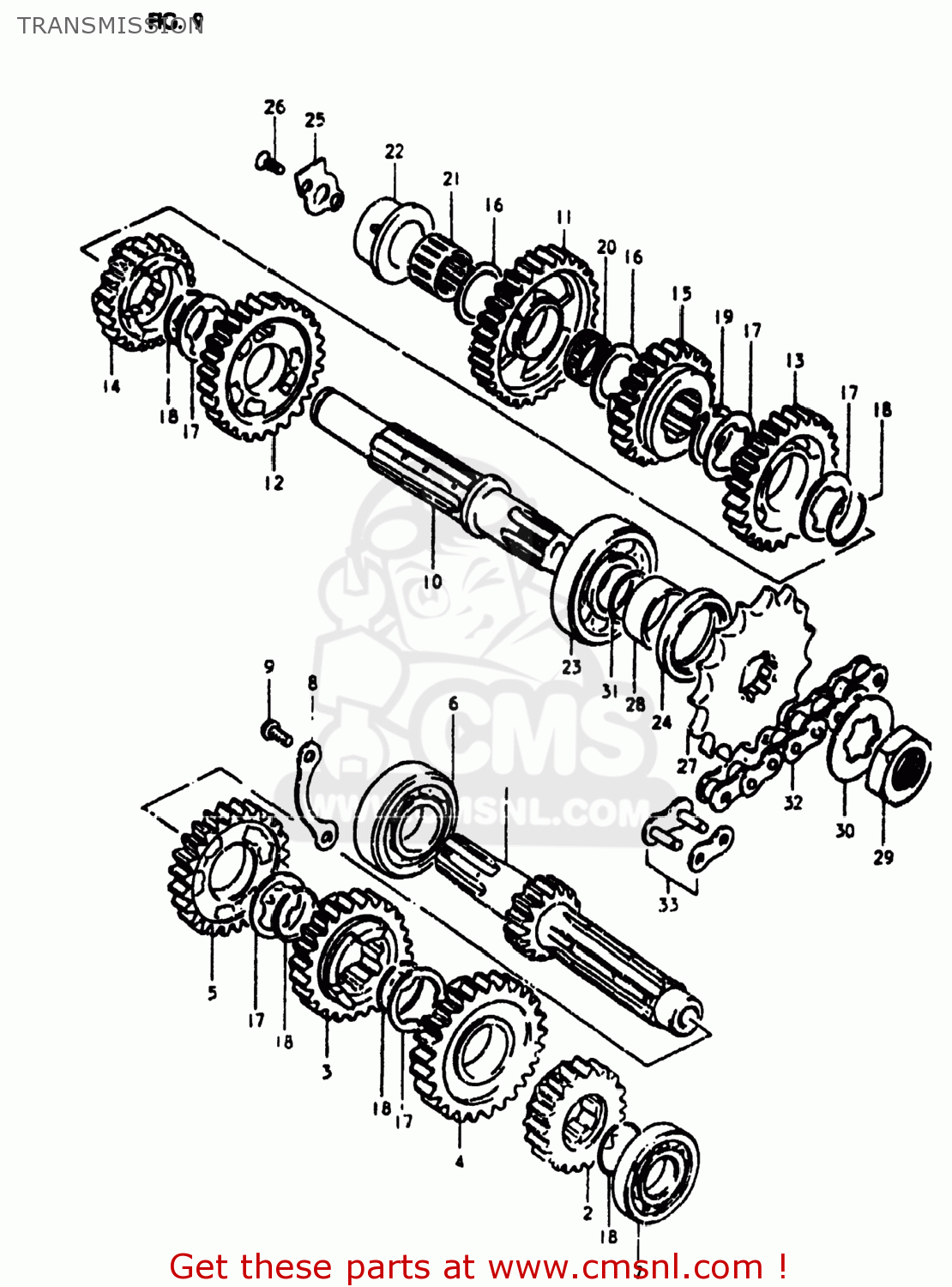

TRANSMISSION

ref

part #

description

quantity

1

2412040401
ref: 1

SHAFT,COUNTER

€ 96.50

2

2422141202
ref: 2

GEAR,SECOND DRIVE

€ 43.00

3

2423141202
ref: 3

GEAR,THIRD DRIVE

€ 54.00

4

2424041201
ref: 4

GEAR,FOURTH DRIVE

€ 37.50

5

2425141200
ref: 5

GEAR,FIFTH DRIVE

€ 44.50

6

0926222006
ref: 6
09262-22025

BEARING

€ 63.50

7

0811360040
ref: 7
09262-20106

BEARING, LH

€ 20.50

8

2474140400
ref: 8

PLATE,COUNTERSHAFT BEARING

€ 0.00

9

0211206128
ref: 9
02112-06127

SCREW 6X12

€ 2.00

10

2413140400
ref: 10

SHAFT,DRIVE

€ 69.00

11

2431140400
ref: 11

GEAR,FIRST DRIVEN

€ 61.00

12

2432041201
ref: 12

GEAR,SECOND DRIVEN

€ 37.00

13

2433141200
ref: 13

GEAR,THIRD DRIVEN

€ 46.00

14

2434141200
ref: 14

GEAR,FOURTH DRIVEN

€ 41.50

15

2435141200
ref: 15

GEAR,FIFTH DRIVEN

€ 54.00

16

0916020004
ref: 16

WASHER (20X30X1)

€ 2.50

17

0916725012
ref: 17

WASHER,LOCK

€ 3.50

18

0938025006
ref: 18

RING,SNAP

€ 2.00

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

0926320018
ref: 20

BEARING(20X24X10).8

€ 14.00

21

0926320017
ref: 21

BEARING(20X24X16.8)

€ 16.50

22

0930124001
ref: 22

BUSHING

€ 6.50

23

0926222014
ref: 23
09262-22028

BEARING

€ 59.50

24

0928332003
ref: 24

SEAL,OIL(32X42X6)

€ 3.50

25

2475140400
ref: 25

PLATE,DRIVESHAFT BEARING

€ 3.00

26

0212206128
ref: 26
02122-06127

SCREW

€ 3.00

27-1

2751141120
ref: 27-1
27511-14210

SPROCKET,ENGINE

€ 24.50

27-2

2751141110
ref: 27-2

SPROCKET,ENGINE

€ 25.00

27-3

2751141130
ref: 27-3

SPROCKET,ENGINE

€ 17.50

28

0918022007
ref: 28

SPACER(22X32X11.5)

€ 10.00

29

0914022006
ref: 29

NUT

€ 6.00

30

0916722005
ref: 30

WASHER,LOCK

€ 2.50

31

0928022003
ref: 31

O RING(D:1.7,ID:22)

€ 2.50

32

2760041110
ref: 32
27600-28C01-116

CHAIN ASSEMBLY,DRIVE

€ 80.00

32

2760041110
ref: 32
27600-28C01-116

CHAIN ASSEMBLY,DRIVE

€ 80.00

33

2762040000
ref: 33
27620-14252

JOINT ASSEMBLY,CHAIN

€ 3.00

all assemblies
