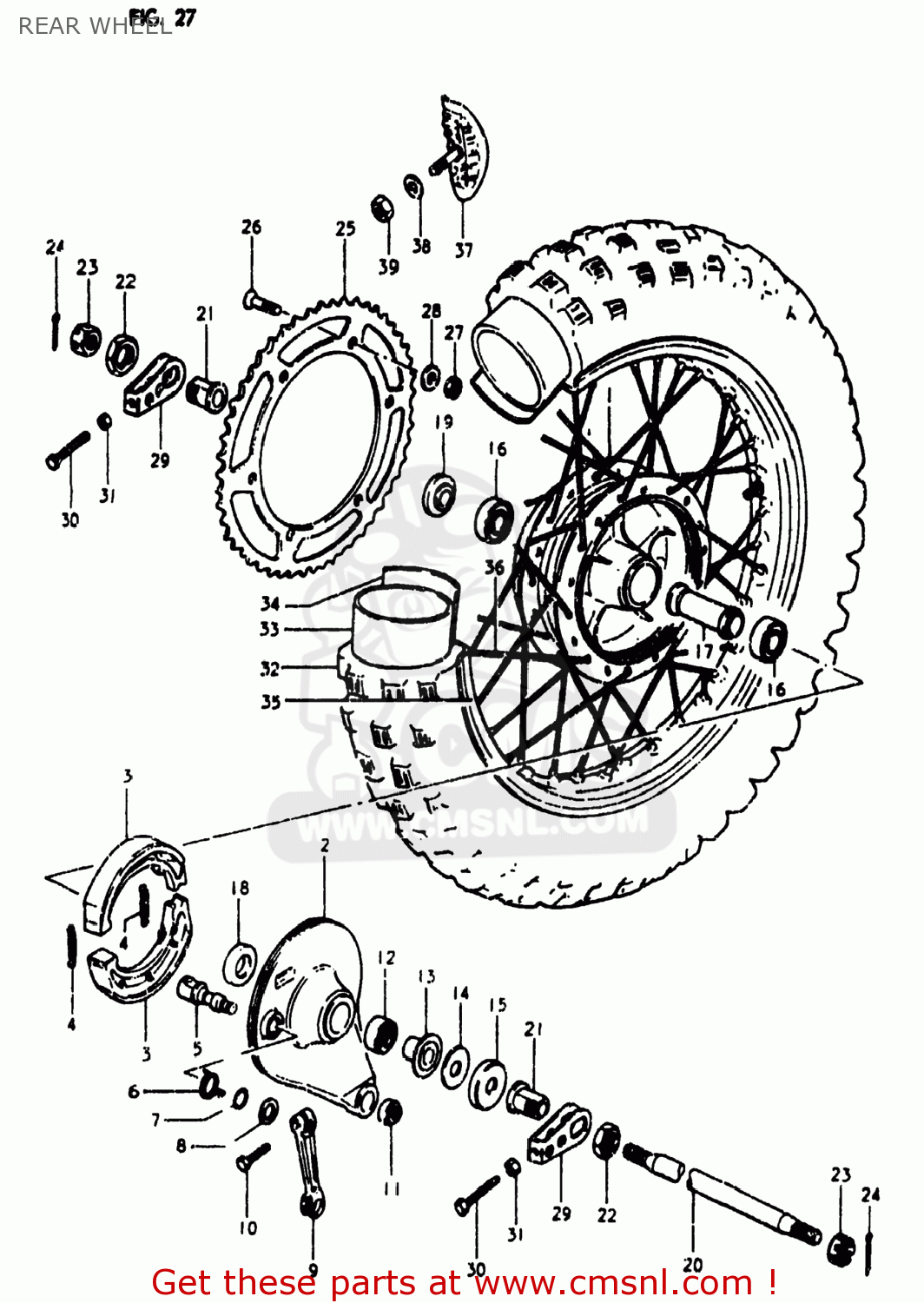

REAR WHEEL

ref

part #

description

quantity

1

6411040304
ref: 1

HUB,REAR

€ 120.00

2

6420041850
ref: 2
64200-41852

PANEL SET,REAR HUB

€ 140.00

3

6441040301
ref: 3
64400-40840

SHOE,BRAKE (NAS)

€ 75.50

4

6443040300
ref: 4

SPRING

€ 6.50

5

5444101002
ref: 5

CAM,FR BRAKE

€ 19.50

6

0944830006
ref: 6

SPRING

€ 4.00

7

0928012001
ref: 7

O RING(D:2.5,ID:11.4)

€ 2.50

8

0916012011
ref: 8

WASHER(12.5X20X1)

€ 1.50

9

6445140301
ref: 9

LEVER,REAR BRAKE CAM

€ 20.50

10

0110706258
ref: 10
01500-06257

BOLT

€ 2.00

11

6435240400
ref: 11
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

12

0926322025
ref: 12

BEARING(22X29X25)

€ 31.50

13

6421340300
ref: 13

SPACER,REAR HUB PANEL

€ 28.00

14

0916015028
ref: 14
08211-15341

WASHER

€ 2.00

15

6484540300
ref: 15
61262-22A00

COVER, PANEL DUST SEAL

€ 7.50

16

0812362027
ref: 16

BEARING

€ 14.50

17

6473040300
ref: 17
64730-40301

SPACER,REAR HUB BEARING

€ 23.50

18

6474140300
ref: 18

SPACER,REAR AXLE,RIGHT

€ 5.00

19

6475040300
ref: 19

SPACER,REAR AXLE,RIGHT

€ 8.00

20

6471140300
ref: 20

AXLE,REAR

€ 41.00

21

6478140300
ref: 21

SPACER,CHAIN ADJUSTER

€ 12.50

22

0914022006
ref: 22

NUT

€ 6.00

23

0914114004
ref: 23

NUT

€ 5.00

24

0411130308
ref: 24
04111-3030A

COTTER PIN

€ 1.50

25-1

6451140411
ref: 25-1

SPROCKET,REAR (NT:49)(AL)

€ 139.00

25-2

6451140401
ref: 25-2

SPROCKET,REAR

€ 0.00

25-3

6451140421
ref: 25-3

SPROCKET,REAR

€ 57.00

26

0912008004
ref: 26

SCREW(8X33.5)

€ 3.00

27

0831931088
ref: 27
08319-3108A

NUT

€ 2.50

28

0832211088
ref: 28
08322-01087

WASHER

€ 2.00

29

6141040400
ref: 29

ADJUSTER,CHAIN

€ 12.50

30

0910408006
ref: 30
09104-08034

BOLT

€ 3.00

31

0831012088
ref: 31
08310-00087

NUT

€ 2.00

32

6510040430
ref: 32
65100-14230

TIRE

€ 0.00

33

6520040430
ref: 33

TUBE,INNER

€ 0.00

34

6526115030
ref: 34
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

35

6531140400
ref: 35

RIM,REAR WHEEL

€ 111.00

36

6532040400
ref: 36
65320-40401

SPOKE SET,REAR WHEEL

€ 43.00

37

6527040450
ref: 37
65270-40420

STOPPER,BEAD

€ 70.50

38

0832211088
ref: 38
08322-01087

WASHER

€ 2.00

39

0831012088
ref: 39
08310-00087

NUT

€ 2.00

all assemblies
