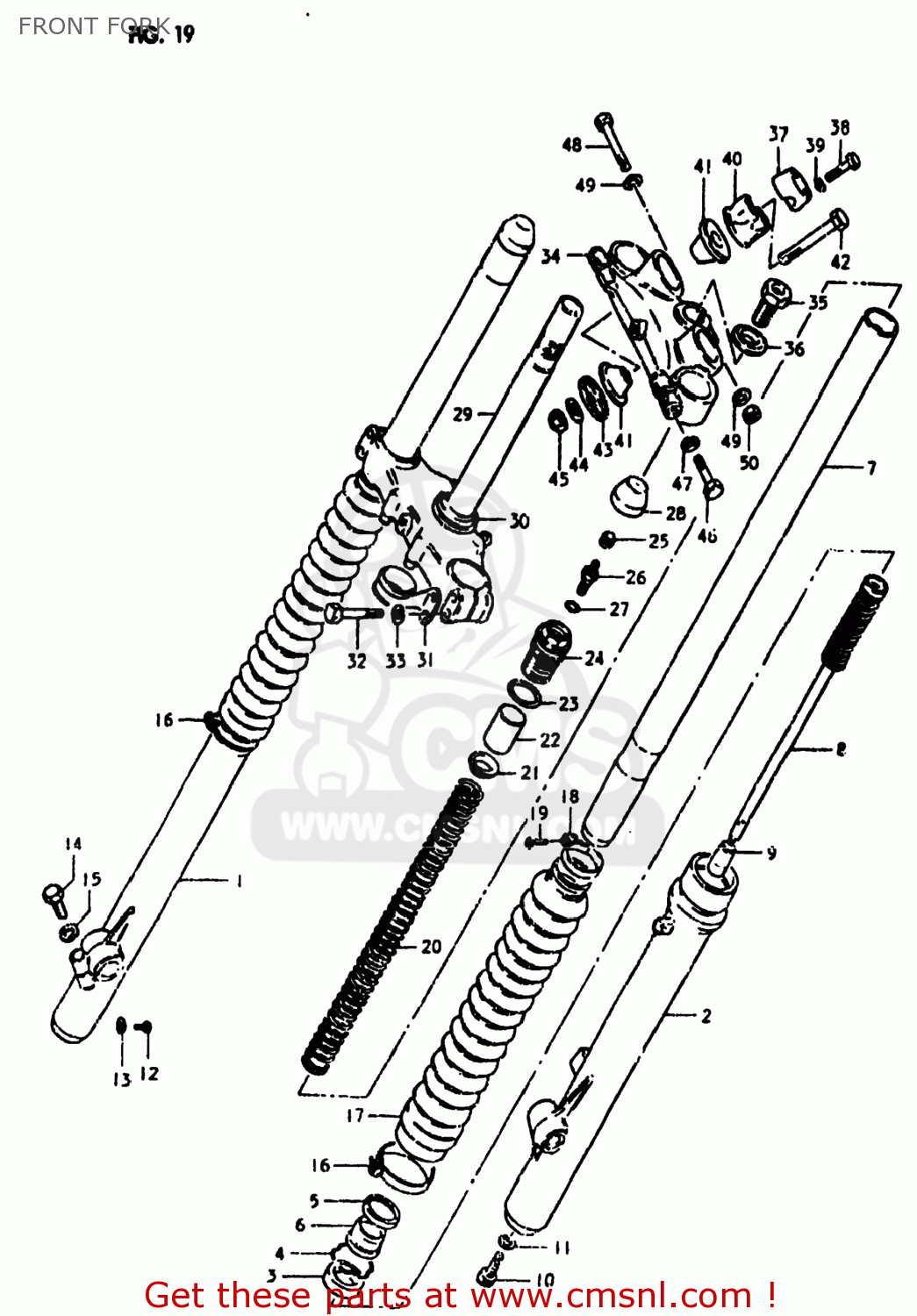

FRONT FORK

ref

part #

description

quantity

0

511004030108C
ref: 0
51100-40302-08C

DAMPER SET

€ 507.50

1

5113040301
ref: 1

TUBE,OUTER,RIGHT

€ 112.50

2

5114040301
ref: 2
51140-40201

TUBE,OUTER,LEFT

€ 85.00

3

5115340300
ref: 3

SEAL,OIL

€ 11.50

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5114940301
ref: 5

CASE,DUST SEAL

€ 12.50

6

5117340301
ref: 6

SEAL,DUST

€ 12.50

7

5111040300
ref: 7

TUBE,FORK,INNER

€ 0.00

8

5114640200
ref: 8

CYLINDER,FRONT FORK

€ 31.00

9

5119540300
ref: 9

PIECE,OIL LOCK

€ 0.00

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

5114840300
ref: 11

GASKET,CYLINDER (NAS)

€ 2.50

12

0211204088
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

0110708308
ref: 14
01500-08307

BOLT (8X30)

€ 2.50

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

5157340300
ref: 16

BAND,FRONT FORK COVER BOOT

€ 5.00

17

5157140300
ref: 17

BOOT

€ 31.50

18

5157540300
ref: 18
51575-44B00

BAND,BOOT

€ 9.00

19

0211204108
ref: 19
02112-04107

SCREW 4X10

€ 2.00

20

5117140300
ref: 20

SPRING

€ 16.00

21

5117240300
ref: 21

GUIDE

€ 5.00

22

5117640300
ref: 22

COLLAR,SPRING

€ 0.00

23

5111740300
ref: 23

O RING

€ 2.50

24

5135140300
ref: 24

CAP,FORK INNER TUBE

€ 37.00

25

5129440400
ref: 25

CAP,VALVE AIR

€ 4.00

26

5129349001
ref: 26

VALVE

€ 18.00

27

5111741211
ref: 27

O RING

€ 6.50

28

5118941220
ref: 28

CAP

€ 6.00

29

514104030108C
ref: 29

STEM,STEERING

€ 0.00

30

5162140030
ref: 30
51621-40X00

RACE,STEERING,OUTER,UPPER

€ 9.00

31

5862140300
ref: 31
58621-40301

GUIDE,CABLE

€ 14.50

32

0110708458
ref: 32
01500-08453

BOLT 8X45

€ 2.50

33

0832121088
ref: 33
08321-01087

LOCK WASHER

€ 2.00

34

513114040008C
ref: 34

HEAD,STEERING STEM

€ 0.00

35

5135141320
ref: 35

BOLT

€ 8.50

36

5135641310
ref: 36

WASHER

€ 6.00

37

562114030008C
ref: 37

HOLDER,HANDLEBAR

€ 7.00

38

0110708358
ref: 38
01500-0835B

BOLT

€ 3.50

39

0832121088
ref: 39
08321-01087

LOCK WASHER

€ 2.00

40

562214040008C
ref: 40

HOLDER,HANDLEBAR,LOWER

€ 40.00

41

5624140400
ref: 41

CUSHION,HANDLE HOLDER

€ 4.00

42

5132140400
ref: 42

BOLT,HANDLE HOLDER

€ 4.00

43

5172140400
ref: 43

COVER,HANDLEBAR HOLDER

€ 4.50

44

5135640400
ref: 44
09160-10035

WASHER,HANDLEBAR HOLDER

€ 2.00

45

0831921108
ref: 45
09159-10027

NUT

€ 3.00

46

0110710458
ref: 46
01500-1045A

BOLT

€ 2.00

47

0832121108
ref: 47
08321-01107

LOCK WASHER

€ 2.00

48

0110708508
ref: 48
01500-08507

BOLT 8X50

€ 3.00

49

0832221088
ref: 49
08322-01087

WASHER

€ 2.00

50

0831012088
ref: 50
08310-00087

NUT

€ 2.00
