CARBURETOR
RM500 1983 (D) USA (E03)

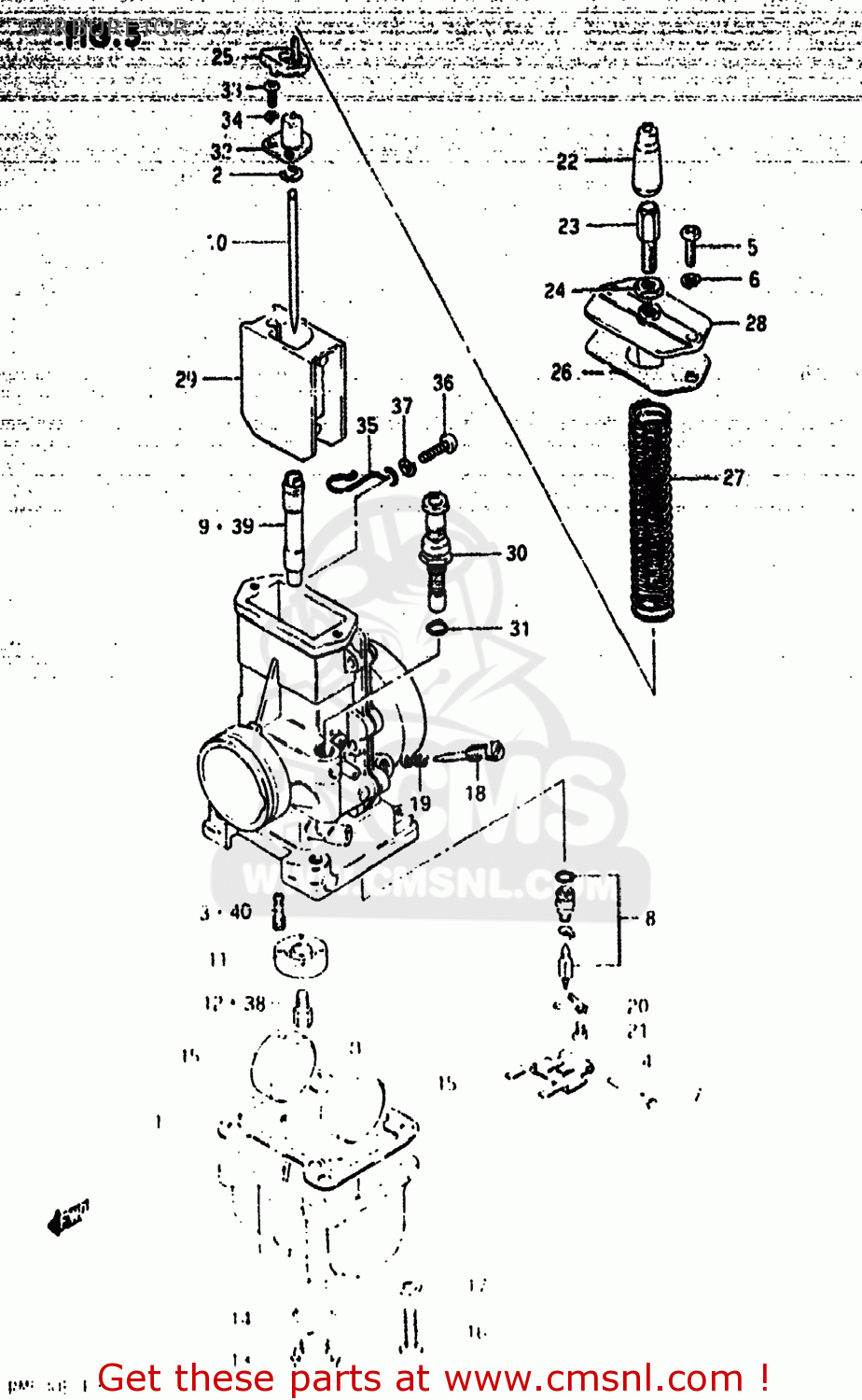

Carburetor diagram RM500 1983 (D) USA (E03)
CARBURETOR RM500 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320014230
ref: 0-1
CARBURETOR ASSEMBLY
€ 0.00
0-2
1320014240
ref: 0-2
CARBURETOR ASSEMBLY (VM38)
€ 414.00
1
1325114300
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2
1339410010
ref: 2
CLIP
€ 4.50
3-1
0949250010
ref: 3-1
JET,PILOT(50)
€ 8.00
3-2
0949240004
ref: 3-2
JET,PILOT(40)
€ 17.50
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204128
ref: 5
02112-0412A
SCREW
€ 1.50
6
0832121048
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337014300
ref: 8
13370-43B00
VALVE ASSEMBLY,NEEDLE
€ 52.50
9
0949400403
ref: 9
JET,NEEDLE
€ 18.50
10
1338314230
ref: 10
NEEDLE JET
€ 8.50
11
1333114300
ref: 11
RING,MAIN JET FIXING
€ 0.00
12
0949160007
ref: 12
JET,MAIN(300)
€ 9.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325218620
ref: 15
FLOAT
€ 27.50
16
0211205208
ref: 16
02112-05207
SCREW 5X20
€ 3.00
17
0832121058
ref: 17
08321-0105A
LOCK WASHER
€ 2.00
18
1326946010
ref: 18
13269-95110
SCREW,PILOT AIR
€ 8.50
19
1326801010
ref: 19
SPRING
€ 3.50
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204068
ref: 21
02112-0406B
SCREW 4X6
€ 2.00
22-1
1368133010
ref: 22-1
CAP,CABLE ADJUSTER
€ 8.00
22-2
1368141510
ref: 22-2
CAP,CABLE ADJUSTER
€ 11.00
23
1357741612
ref: 23
ADJUSTER,CABLE
€ 8.00
24
1366116600
ref: 24
NUT
€ 5.00
25
1338714230
ref: 25
SEAT,RETURN SPRING
€ 6.00
26
1326614300
ref: 26
GASKET,MIXING CHAMBER (NAS)
€ 4.00
27
1357314300
ref: 27
SPRING,THROTTLE VALVE
€ 7.50
28
1326114300
ref: 28
CAP,CARBURETOR,TOP
€ 14.50
29
1355114230
ref: 29
VALVE,THROTTLE
€ 0.00
30-1
1341143200
ref: 30-1
13400-14500
VALVE,STARTER
€ 39.00
30-2
1340014500
ref: 30-2
PLUNGER ASSEMBLY
€ 39.00
31
1329515010
ref: 31
09280-08014
O-RING
€ 3.00
32
1339814310
ref: 32
PLATE,NEEDLE JET
€ 7.00
33
0211203108
ref: 33
02112-03107
SCREW
€ 1.50
34
0832121038
ref: 34
09162-03001
LOCK WASHER
€ 1.50
35
1369214500
ref: 35
CLIP
€ 4.00
36
0211204168
ref: 36
02112-0416A
SCREW
€ 1.00
37
0832121048
ref: 37
08321-0104A
LOCK WASHER
€ 2.00
38-1
0949156001
ref: 38-1
09491-56003
JET
€ 14.50
38-2
0949158002
ref: 38-2
JET,MAIN(290)
€ 7.50
38-3
0949164002
ref: 38-3
JET,MAIN(320)
€ 8.50
38-4
0949166002
ref: 38-4
JET,MAIN(330)
€ 10.50
38-5
0949168002
ref: 38-5
JET,MAIN(340)
€ 8.50
39-1
0949400404
ref: 39-1
JET,NEEDLE
€ 20.00
39-2
0949400402
ref: 39-2
JET,NEEDLE
€ 13.00
40-1
0949255005
ref: 40-1
JET,PILOT
€ 6.50
40-2
0949250010
ref: 40-2
JET,PILOT(50)
€ 8.00
40-3
0949245009
ref: 40-3
JET,PILOT(45)
€ 8.00
40-4
0949235004
ref: 40-4
JET,PILOT(35)
€ 7.50
40-5
0949230003
ref: 40-5
09492-30006
JET
€ 8.50
